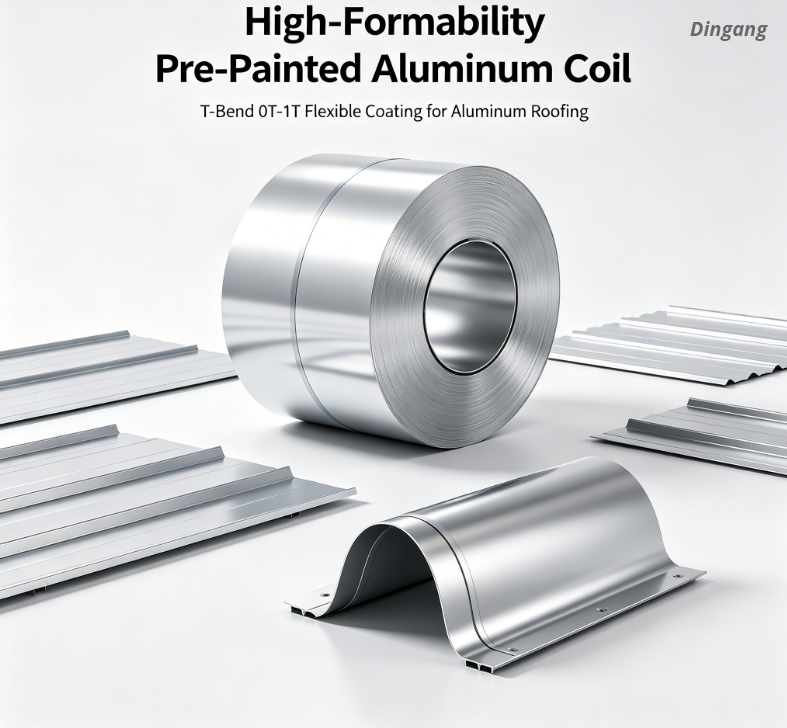

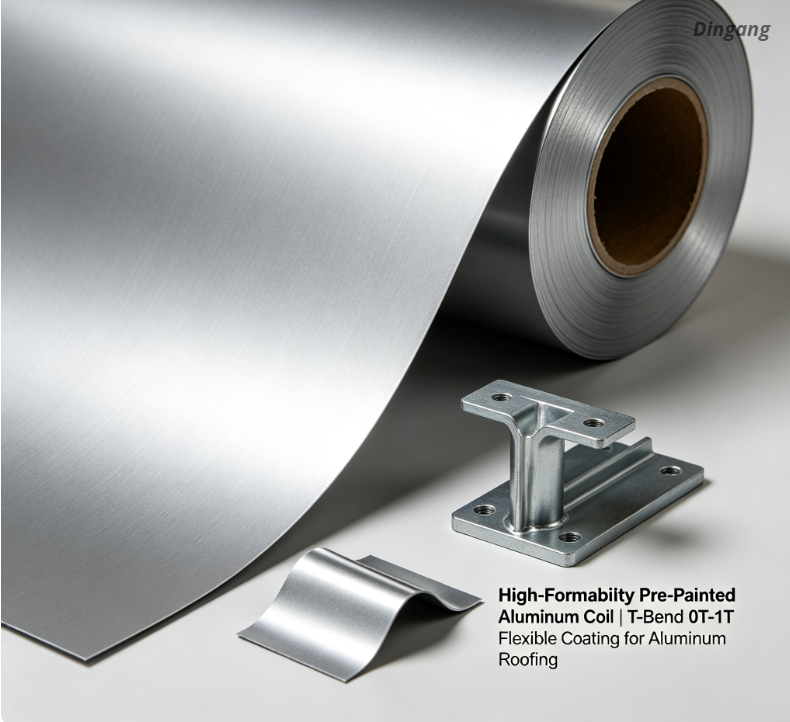

High-Formability Pre-Painted Aluminum Coil | T-Bend 0T-1T Flexible Coating for Aluminum Roofing

Product Overview

Specifically engineered to resolve the structural risks of coating fracture and micro-cracking during extreme mechanical manipulation, this high-formability pre-painted aluminum coil sets the global industrial benchmark for flexible metal roofing fabrication. Manufactured from highly ductile, structural-grade base alloys—including AA3003,and AA5052 in strict accordance with ASTM B209—the substrate undergoes advanced inline annealing to eliminate residual internal material strain.

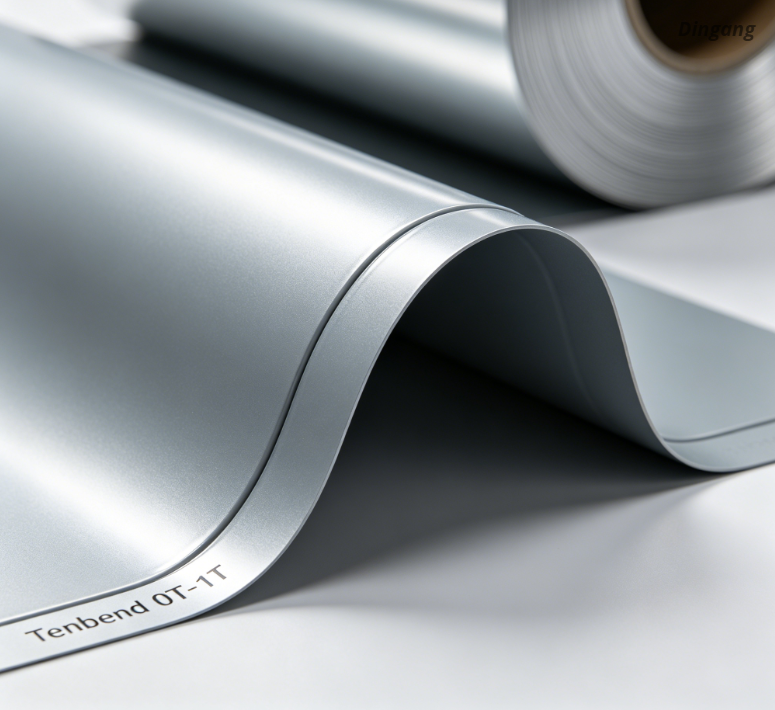

The coil is then coated on a continuous high-speed roller line with an elite, highly elastic macromolecular fluorocarbon PVDF or specialized high-flexible polyester (SMP/HDP) resin formulation. This advanced chemistry achieves an extraordinary architectural T-bend rating of 0T to 1T under 180° mechanical folding tests. This ensures that the protective coating layer stretches uniformly with the underlying aluminum core, providing complete, unyielding defense against paint peeling, microscopic edge delamination, or moisture penetration along intense structural profile bends.

Product Advantages

Continuous onsite roll forming, mechanical double-lock standing seam joints, and tight deep-drawing stamping impose severe physical stresses on color-coated metals. If the cured paint film or primer lacks sufficient elasticity, the extreme mechanical force applied during 180° crimping causes microscopic splitting. These micro-fractures compromise the barrier layer, allowing environmental moisture to trigger premature corrosion. Our high-formability coated aluminum coil addresses these manufacturing risks by matching substrate elongation with flexible resin polymers.

Key Performance Advantages for Aluminum Roofing

• True 0T-1T Bending Flexibility: Allows for maximum mechanical compression and complete metal-on-metal folding without generating micro-cracks or paint delamination.

• Strain-Relieved Structural Metallurgy: Specialized annealing steps maximize the material's structural elongation, eliminating internal stress to ensure smooth processing on automated forming lines.

• Uncompromising Weather Shielding: The highly elastic Kynar 500 PVDF molecular base resists chalking, color fading, and chemical breakdown under extreme solar heat and UV exposure.

• Micro-Precision Gauge Uniformity: Electronic caliber feedback control maintains thickness tolerances within ±0.02mm, ensuring reliable tension and consistent tracking inside continuous profiling equipment.

Complete Product Specifications

Quality Control & Production Excellence

Our manufacturing operations apply strict testing regimes to every production run, verifying material flexibility against international standards to ensure long-term mechanical stability.

B2B Sourcing & Customization Services

To support large-scale architectural roofing tenders and complex component contracts, we provide procurement directors with tailored options:

Flexible Resin Finishes

Custom coating systems using ultra-flexible Kynar 500 PVDF or modified High-Durable Polyester (HDP) resins designed to match specific regional climate profiles and gloss levels.

Heavy-Duty Flexible Surface Masking

Lamination of thick, highly flexible PE protective films that stretch with the metal during profiling, shielding the coating during installation and peeling cleanly away afterward.

High-Protection Sea Freight Packaging

All production rolls use robust eye-to-sky or eye-to-wall configurations. They are wrapped in multi-layer water-resistant plastic barriers filled with industrial desiccant bricks, encased in steel casings, and securely strapped to reinforced wooden pallets for safe ocean transport.

Industrial Applications

Our 0T-1T ultra-flexible pre-painted aluminum coils provide the structural raw material required to manufacture long-life roofing systems, architectural claddings, and complex stamped metal components:

Double-Lock Standing Seam Roofing Systems

The definitive metal skin selection for continuous onsite roll-formed standing seam configurations, supporting error-free 360-degree mechanical lock-seaming along roof valleys.

Traditional Architectural Roof Tiles & Shingles

Designed to handle deep hydraulic stamping and intense pressing operati

Rainwater Management & Gutter Profiles

Provides excellent formability for tight-radius roll forming of continuous gutters, complex downspouts, and decorative trim pieces without paint flaking.

Complex Deep-Drawn Enclosures & Flashings

The ideal material choice for custom flashing structures, valley linings, and precision mechanical enclosures requiring multi-axis metal folding.

Insulated Architectural Wall Panels & Cladding

Supplies a flat, stress-free outer metal facing skin for automated sandwich panel insulation lines, eliminating the risk of edge warping.

FAQ

Q1:What exactly does a 0T-1T T-bend rating mean for a roofing fabrication engineer?

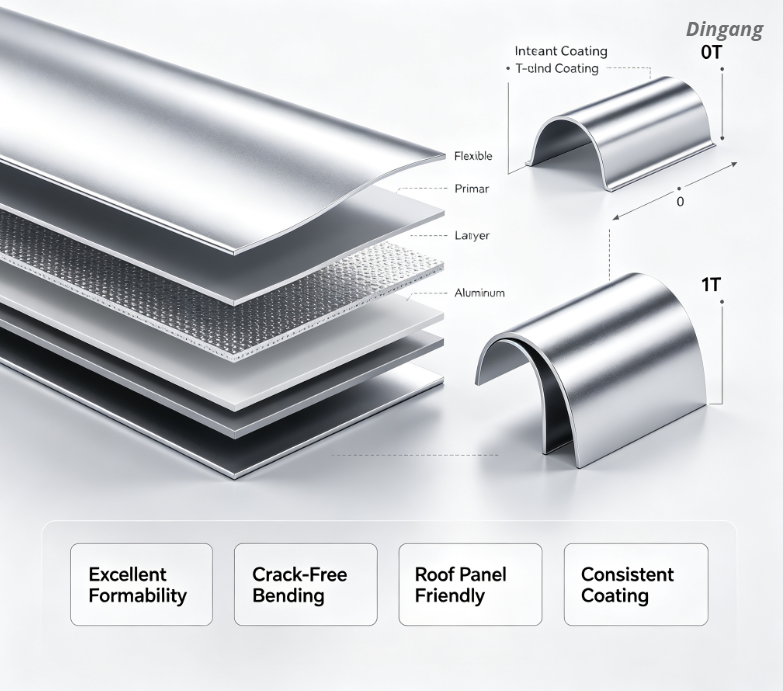

A T-bend test measures coating flexibility under mechanical compression. A 0T rating means the aluminum sheet can be folded completely flat over a 180° angle (zero thickness thickness spacer inside) without the paint film cracking or peeling. A 1T rating allows for a single metal thickness spacer inside the bend. This elite level of flexibility allows for extreme profiling and tight mechanical lock-seaming.

Q2:Why are AA3003 and AA5052 alloys preferred for standing seam roofing over commercial AA1100 grades?

AA1100 series metals provide good formability but lack the structural tensile parameters needed for long roofing spans. AA3003 and AA5052 are alloyed with manganese and magnesium, providing significantly higher yield strength, structural load parameters, and corrosion resistance while retaining excellent material elongation.

Q3:How does real-time thickness control within ±0.02mm protect mobile onsite roll forming machinery?

Any variance in metal thickness changes how a sheet responds to forming rollers, which can cause material drift, edge waves, or tool jamming. By maintaining an inline tolerance within ±0.02mm, your mobile roll forming uncoilers and stamping dies run smoothly without requiring continuous adjustment.

Q4:Does the ultra-flexible resin formulation degrade faster under direct desert solar radiation?

No. The flexible resin layer combines high molecular elasticity with stable 70% Kynar 500 PVDF chemical bonds. This structure provides top-tier resistance against intense solar radiation, chemical chalking, and environmental degradation, securing an architectural lifespan exceeding 20 years.

Q5:What certification standard confirms that the coating layer has achieved full cross-linking and flexibility?

Coating cure levels and structural cross-linking are verified using ASTM D5402 (MEK Solvent Rub Test) alongside physical ECCA T-bend folding tests. Our architectural production lines routinely achieve a ≥ 100 double-rub rating and 0T-1T flexibility parameters, confirming complete curing and adhesion.

Q7: What protective packing steps prevent rust and white rust during international sea transport?

To protect shipments from maritime humidity and saltwater oxidation, each coil is enclosed in a multi-layered protective envelope. Coils are core-wrapped, packed with heavy-duty moisture-absorbing desiccant materials, sealed inside a rugged protective steel sheet enclosure, and securely strapped to reinforced, fumigated wooden pallets for safe ocean transport.

Request a Structural Specification Quote & Sample Kit

Are you currently structuring project submittals, managing engineering tenders, or sourcing flexible raw materials for a double-lock standing seam roof, public transit hub, or deep-drawn architectural panel contract? Send your thickness, width, color code, and volume requirements to our technical sales team for an engineering-grade quote and physical sample verification within 12 hours.
