Thermal-Dissipating 3003 Pre-Painted Aluminum Coil | High-Emissivity Finish for AI Server Rack Enclosures

High-density AI computing servers, power supply units (PSUs), and data center server cabinets generate immense thermal loads within compact rack envelopes. Traditional chassis fabrication relies heavily on electro-galvanized (SECC) or cold-rolled steel, which suffers from heavy deadweight, low base thermal conductivity, and heat retention that forces internal cooling fans to run continuously at maximum power. Furthermore, sending bare stamped steel chassis parts to offline batch powder-coating lines frequently leads to uneven coating thickness, clogged micro-ventilation punch holes, high defect rates, and extended production lead times.

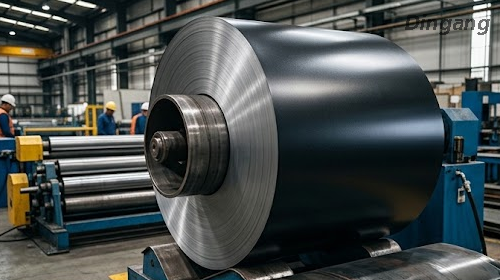

Our Thermal-Dissipating 3003 Pre-Painted Aluminum Coil directly addresses these manufacturing and thermal bottlenecks. Built on fine-grained AA3003 aluminum-manganese structural alloy, the coil features an inline roller-coated, high-emissivity thermal radiative finish that accelerates heat radiation away from electronic components. Delivering thermal emissivity ratings above 0.92, a 60% weight reduction compared to steel, verified zero paint flaking during high-density CNC honeycomb mesh punching, and an anti-glare matte black aesthetic (RAL 9005), this material allows enclosure fabricators to stamp, bend, and assemble finished server chassis parts straight from the coil without secondary spray painting.

Product Advantages

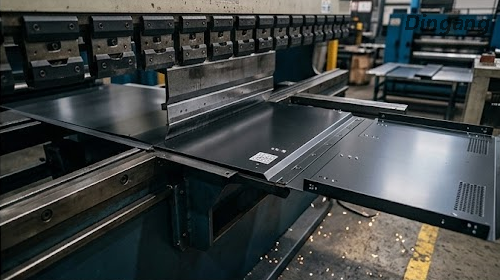

Manufacturing high-performance server hardware requires materials that solve thermal management issues without slowing down press-shop output. Our Thermal-Dissipating 3003 Pre-Painted Aluminum Coil pairs high thermal conductivity with a specialized factory-applied ceramic-modified coating. While raw aluminum reflects radiant heat internally, our topcoat achieves a high thermal emissivity rating above 0.92, rapidly transferring interior chassis heat to the cabinet airflow stream and helping lower internal enclosure temperatures by 3°C to 5°C. At the same time, the highly ductile AA3003 base strip and flexible coating matrix eliminate paint flaking during rapid punching of micro-hex ventilation patterns, 90° press braking, and corner draws. By taking pre-finished coil directly to your stamping presses, your plant eliminates the cost, delays, and paint clogging associated with outsourced post-spray operations.

Key Performance Advantages for Server Rack Enclosures

Enhanced Radiant Heat Release: High-emissivity surface finish transfers radiant energy away from internal electronic components, improving overall thermal efficiency.

Elimination of Post-Stamping Painting: Delivers pre-finished, color-matched coil directly to your presses, saving up to 30% on finished part production lead time.

Flake-Free High-Density Mesh Punching: Formulated for clean shearing during CNC turret punching, ensuring micro-ventilation holes remain free of paint burrs and chips.

Significant Weight Reduction vs. Steel: Delivers roughly 60% weight savings over standard steel sheets, reducing total payload weight for fully loaded multi-node rack cabinets.

Non-Glare, Fingerprint-Resistant Finish: Low-sheen matte black surface resists handling scuffs, oil smudges, and light glare during data center maintenance.

Complete Product Specifications

Quality Control & Production Reliability

Every production lot is processed through continuous tension leveling, multi-stage non-chromate chemical passivation, and precision cleanroom roller-coating lines to ensure consistent thermal and mechanical performance.

Tailored B2B OEM & Processing Services

To support metal stamping facilities, chassis press shops, and rack enclosure fabricators, we offer turnkey processing and supply chain services built for continuous production lines:

Precision Narrow Ribbon Slitting

Equipped with high-precision rotary slitting lines, we supply custom-slit coil widths down to 30mm with tight width tolerances (±0.1 mm) and low edge burrs (≤ 0.015 mm), ensuring smooth, jam-free feeding through automated progressive stamping dies.

Deep-Draw Protective Film Lamination

Coils can be laminated with specialized medium-tack or laser-cutting PE protective films (50 to 80 microns) that protect the matte finish during aggressive stamping, punching, and press-brake bending, peeling off cleanly without adhesive residue.

Custom Color Matching (RAL & Pantone)

While matte black (RAL 9005) is the global data center standard, we offer color-matching within 48 hours for institutional server brands, including Titanium Grey, Arctic White, and custom OEM chassis accent colors.

Heavy-Duty Seaworthy Export Packaging

Coils are packaged with vapor corrosion inhibitor (VCI) anti-rust paper, encapsulated in heavy waterproof plastic wrapping, protected by steel radial edge guards, and secured onto sturdy, fumigated wooden skids for international sea freight.

Industrial Applications

1U to 4U High-Density Rackmount Server Top Covers & Side Walls

Standard 19-inch rackmount computing nodes generate concentrated heat near power converters and CPUs. Pre-painted 3003 aluminum sheet provides lightweight, rigid top covers that pull heat upward toward cabinet exhaust fans while resisting handling scuffs during hot-swap maintenance.

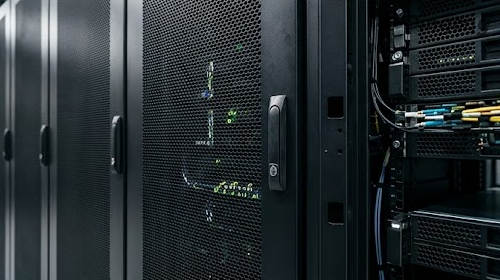

High-Flow Honeycomb Ventilation Mesh & Air Flow Baffles

Modern AI server front bezels and rear exhaust grills feature thousands of tightly spaced hexagonal punch holes to maximize airflow. Our coating deforms cleanly with the metal, preventing hole-edge flaking and ensuring micro-passages remain unobstructed without paint buildup.

Server Power Supply Unit (PSU) & Inverter Housings

Modular server power supplies require compact metal housings that dissipate high internal heat while maintaining electrical insulation. Stamped from 0.8mm to 1.2mm coated coil, these housings combine structural stiffness with fast thermal dissipation away from transformer coils.

Data Center Server Rack Frame Panels & Blanking Fillers

Vertical rack side panels, cable routing channels, and modular blanking panels utilize wide-width coated aluminum sheets to create sleek, uniform, anti-static enclosures that lower overall structural floor loading across high-density data halls.

High-Power Network Switch & Storage Array Enclosures

Data storage arrays and multi-port fiber switches require precise dimensional flatness and tight seam alignment. Tension-leveled 3003 coil eliminates oil-canning across wide sheet spans, ensuring smooth insertion into rack mounting rails.

FAQ

Q1:How does a high-emissivity coating help cool server chassis compared to bare aluminum?

While bare, polished aluminum has high thermal conductivity, it is a poor thermal radiator—its surface emissivity is only about 0.05 to 0.10, meaning it traps radiant heat inside the chassis. Our specialized topcoat elevates surface emissivity to over 0.92, allowing the metal to radiate heat outward into the air stream much faster.

Q2:Will the paint chip or peel off when punching tight honeycomb ventilation holes?

No. The flexible polymer coating is engineered with high elasticity and achieves a T-bend rating of 1.0T to 1.5T and Class 5B cross-hatch adhesion. It shears cleanly along punch lines during high-speed CNC turret punching, leaving crisp, burr-free ventilation holes without flaking or paint dust.

Q3:Why choose 3003 aluminum alloy over 1100 or 5052 for server chassis parts?

AA3003 contains about 1.0% to 1.5% manganese, making it roughly 20% stronger than pure 1100 aluminum while remaining easier to deep-draw and bend than high-magnesium 5052. This gives chassis fabricators an optimal balance of structural strength, dent resistance, and tight-radius bend formability.

Q4:Can this material replace electro-galvanized steel (SECC) in automated stamping lines?

Yes. Stamping plants can directly replace SECC sheets with 3003 prepainted coil. This switch reduces finished part weight by approximately 60%, significantly increases thermal dissipation, and eliminates the extra time and cost of secondary batch painting.

Q5:What coil widths, thicknesses, and minimum order quantities (MOQ) are available?

We offer thickness gauges from 0.50mm to 2.00mm, widths from 500mm to 1350mm (or slit down to 30mm ribbons), and standard coil weights from 1.5 to 3.5 metric tons. Standard MOQ for custom-colored or high-emissivity runs is 3.0 to 5.0 metric tons, with sample trial quantities available upon request.

Request a Production Quote & Sample Kit

Are you designing high-density server enclosures, upgrading chassis thermal performance, or looking to eliminate post-spray painting in your press shop? Contact our technical sales engineering team today to request physical matte black coated sample strips, ASTM thermal emissivity test reports, and factory-direct quotations within 12 hours.
