Lightweight & Structural Safety: Aluminum features low density, which greatly reduces the load borne by ceiling suspension and keel systems. It lowers requirements for building load-bearing capacity and cuts the overall framework cost, perfectly suitable for large-area suspended ceiling projects in commercial complexes and public venues.
Superior Moisture & Corrosion Resistance: High-quality PE polyester coating forms a dense protective layer on aluminum surface. It effectively blocks moisture, steam and corrosive air, preventing rust, mildew, fading and surface peeling. The material maintains stable performance in long-term high-humidity environments such as kitchens, bathrooms, underground spaces and swimming pool lobbies.
Reliable Fire Performance: Aluminum substrate is non-combustible inorganic material. It will not burn or release heavy toxic smoke under high temperature, fully complying with fire protection standards for public buildings, hospitals, schools and subway stations. It improves the safety margin of indoor ceiling systems.
Diversified Decorative Finishes: Multiple surface options available, including solid matte color, high-gloss color, wood grain, marble grain, stone grain and brushed texture. Strict color matching control ensures stable batch-to-batch consistency and minimal color difference. It meets various interior design styles from simple modern to luxury decoration.
Excellent Machinability & Low Maintenance: Good cutting, punching, bending and stamping performance. Easy to process into clip-in panels, perforated acoustic ceiling boards and customized shaped ceiling components. Compact and smooth coating surface resists oil stains and dust. Daily cleaning only needs simple wiping, no complicated maintenance work required.
Long Service Life & Stable Weather Resistance: Advanced continuous coating technology ensures strong adhesion between coating and aluminum base, no paint peeling or chipping under normal use. Indoor service life can reach 15–25 years, reducing frequent replacement and renovation cost for building owners.
100% Recyclable & Eco-friendly: Aluminum metal can be fully recycled with low energy consumption during reprocessing. No harmful volatile substances in qualified coating, supporting LEED and other green building certification requirements, ideal for sustainable construction projects.
Item | Specification |
|---|---|
Aluminum Alloy | 1100, 3003, 3004, 5052 |
Temper | H14, H16, H24, H26 |
Raw Material Thickness | 0.20mm – 1.2mm, customized thickness available |
Coating System | PE Polyester (standard), optional anti-fingerprint coating, PVDF coating for special high-demand indoor projects |
Coating Thickness | Top coat 18–25μm, back coat 5–8μm |
Width | 500mm – 1500mm, precise slitting according to customer drawings |

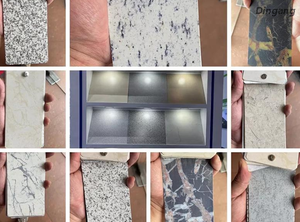

Surface Finish | Solid color, wood grain, marble grain, stone grain, brushed, matte, high gloss |
Color | RAL color system, custom color matching supported |
The whole production adopts continuous coil coating line. Steps include aluminum coil uncoiling → surface degreasing and cleaning → chemical conversion treatment → primer coating → top coat curing → back coating → cooling → quality inspection → slitting / rewinding → finished product packing. The conversion treatment enhances coating adhesion, avoiding paint drop during later bending and forming. Each production batch goes through strict inspection on coating thickness, color difference, T-bend and impact resistance.

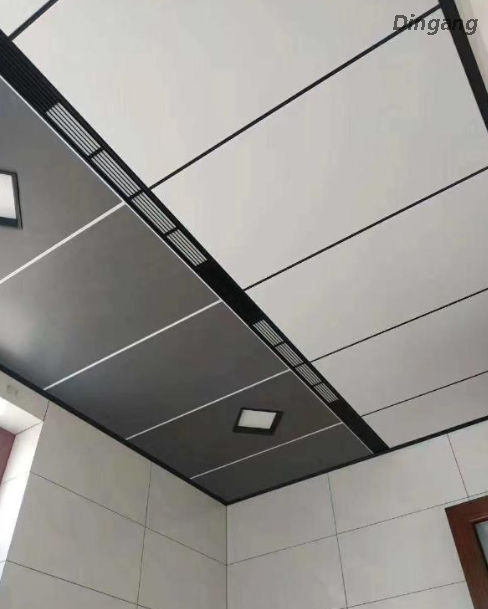

Residential integrated suspended ceiling, kitchen & bathroom aluminum buckle ceiling panels
Commercial building lobby, shopping mall, hotel decorative ceiling
Perforated sound-absorbing ceiling for office, hospital, school, subway and station
Clip-in ceiling, square ceiling, linear strip ceiling for public interior renovation
Custom shaped ceiling panels and decorative aluminum ceiling components
We carry out full range tests before shipment, including coating thickness test, color difference test, T-bend flexibility test, impact resistance test, adhesion cross-cut test and salt spray test. All test reports can be provided as MTC. Every roll is checked for flatness, surface scratch and dimensional tolerance to guarantee stable quality for ceiling panel manufacturers.
Standard seaworthy export packing. Aluminum coils are wrapped with waterproof kraft paper and plastic film, fixed on fumigated wooden pallets. Edge protection is equipped to prevent edge damage during sea transport. We can adjust packing solution based on customer’s special requirements for container loading.
Q: Which coating is recommended for ceiling use?
A: PE polyester coating is the mainstream and cost-effective choice for indoor ceiling. PVDF coating is optional if customers need extra long-term anti-fading performance.
Q: Can you make wood grain color coated aluminum for ceiling?
A: Yes. Wood grain and marble grain series are mature products, widely used for decorative ceiling projects.
Q: What is the MOQ?
A: MOQ depends on color and width. Standard RAL colors have lower MOQ, custom special colors require higher MOQ, please contact us for detailed quotation.
