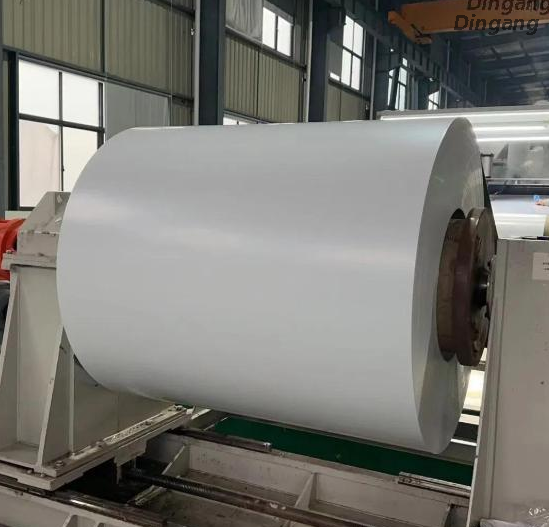

Prepainted Color Coated Aluminum Coil for Building Curtain Wall

Core Advantages

• Superior Outdoor Weather Resistance: We provide multiple coating options including HDP, SMP and PVDF fluorocarbon coating. The compact coating layer can resist UV radiation, heavy rain, temperature variation and air pollution, effectively preventing fading, chalking and peeling. It maintains stable appearance for decades on exterior building facades.

• Excellent Anti-Corrosion Performance: Advanced chemical conversion treatment plus premium coating system forms reliable protection against salt spray, acid rain and industrial corrosive atmosphere. Suitable for coastal cities and industrial areas with harsh environmental conditions.

• High Structural Stability & Light Weight: Low density aluminum substrate reduces the dead load of curtain wall system, lowering the burden on building main structure. The material features good rigidity and flatness, less deformation under temperature change, safe and reliable for high-rise building exterior projects.

• Rich Decorative Effects: Multiple surface finishes available: solid color, metallic color, wood grain, stone grain, matte and high gloss. Strict batch color control ensures minimal color difference. Matches various architectural styles from modern commercial buildings to luxury office facades.

• Great Fabrication Performance: Good cutting, bending, punching and forming properties. Easy to process into aluminum panels, solid sheets and customized shaped curtain wall components. Coating keeps intact after bending without cracking.

• Fire Safety & Environmental Friendly: Aluminum base is non-combustible material. No toxic gas release in case of fire. The coating meets environmental standards, aluminum is 100% recyclable, widely used for green building projects.

• Long Service Life & Low Maintenance: PVDF fluorocarbon version can serve 20–30 years outdoors. Smooth surface repels dust and dirt, simple rain self-cleaning effect, greatly reduces later maintenance cost for building owners.

Product Specification

Production Process

Continuous coil coating production line is adopted for curtain wall color coated aluminum. Process flow: aluminum coil uncoiling → degreasing and surface cleaning → chromate-free conversion treatment → primer coating → top coating curing → back coating → cooling → online quality inspection → slitting / rewinding → finished product packaging. Conversion treatment improves bonding force between coating and aluminum substrate. Each batch is tested for coating adhesion, flexibility and weather resistance to guarantee stable performance for exterior facade.

Applications

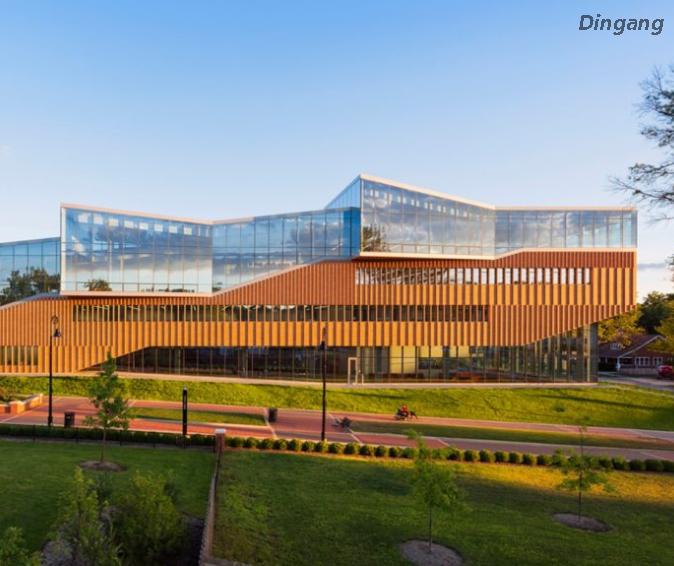

• Exterior building curtain wall panels for high-rise office buildings, commercial complexes and hotels

• Facade cladding, decorative wall panels and exterior wall renovation projects

• Aluminum solid panels, perforated decorative wall panels for architectural exterior decoration

• Airport, railway station, exhibition center and other large public building exterior facades

• Custom decorative aluminum components for architectural exterior design

Quality Inspection

We carry out full set of inspection items before shipment: coating thickness test, color difference test, cross-cut adhesion test, T-bend flexibility test, impact resistance test, salt spray test and accelerated aging UV test. Mill Test Certificate (MTC) can be provided together with goods. We strictly check coil flatness, surface scratches and dimensional tolerance to meet high requirements of curtain wall manufacturers.

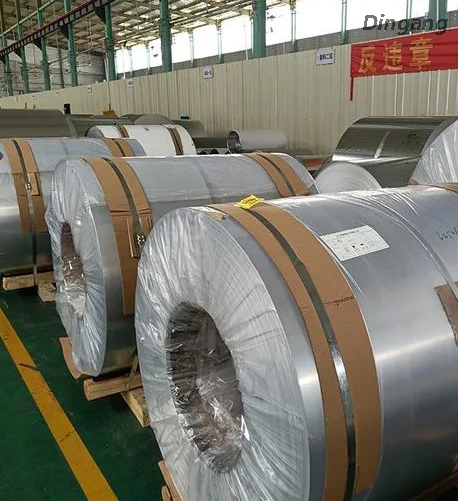

Packing

Standard seaworthy export packing. Aluminum coils wrapped with waterproof kraft paper and plastic film, fixed on fumigated wooden pallets. Edge guards are equipped to prevent edge damage during sea transport. Customized packing solution can be arranged for special container loading requirements.

FAQ

• Q: Which coating is best for curtain wall?
  A: PVDF fluorocarbon coating is the top choice for exterior curtain wall, it provides ultra-long anti-fade and weather resistance. HDP is cost-effective alternative for mid-rise building facades.

• Q: Can you produce metallic color prepainted aluminum for curtain wall?
  A: Yes, metallic paint series is available, widely used for modern building exterior facades.

• Q: What is your MOQ?
  A: Standard RAL colors have lower MOQ. Custom special colors or special texture finishes require higher MOQ, please contact us for detailed quotation.
