Window Sill Waterproof Aluminum Trim

Core Advantages

• Integrated forming structure with natural drainage slope, effectively avoid rainwater backflow and window seepage problem

• 3003 aluminum alloy substrate, outstanding anti-rust and salt spray performance, suitable for long-term outdoor exposure

• Complete prepainted coating, tight paint film adhesion, anti-fading, anti-chalking under sunlight and rain erosion

• Good bending performance, easy on-site cutting, drilling and installation to match various window sizes

• Dense coating layer prevents water penetration, greatly extend service life of window and wall structure

• Multiple RAL color options, consistent facade decoration style with curtain wall and exterior wall panels

• Lightweight material, reduce load of building exterior, convenient transportation and construction

• Low maintenance, surface dirt can be directly wiped, no frequent repainting required

Production Process

Aluminum coil raw material feeding → Continuous degreasing cleaning → Non-chromium passivation treatment → Constant temperature drying → Primer roller coating and curing → Top coat roller coating and secondary baking → Natural cooling → Precision continuous profiling bending → Fixed length cutting → Surface quality inspection → Protective film lamination → Stacking and export packaging. Each batch is sampled for coating adhesion and salt spray test to guarantee outdoor waterproof and anti-aging performance.

Technical Parameters

Item Specification

Alloy 3003 Aluminum Alloy

Temper H24

Thickness 0.6mm ~ 2.0mm

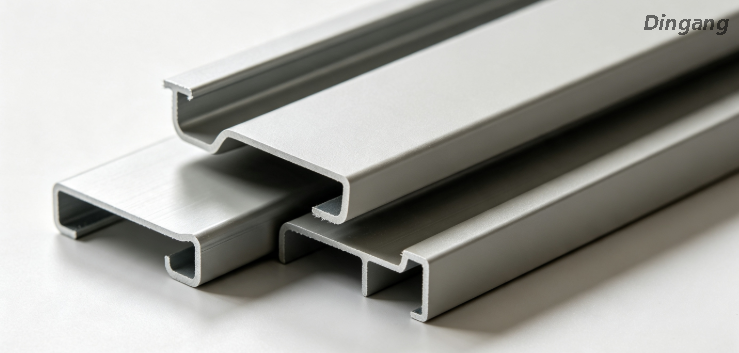

Width & Shape Custom profile mould according to drawing

Coating PE / PVDF prepainted coating optional

Coating Thickness 18–28μm (PE), 25–35μm (PVDF)

Surface Matte / Semi-gloss

Color White, grey, silver, bronze, all RAL customizable

Certificate MTC, salt spray test report, color difference inspection report

Application

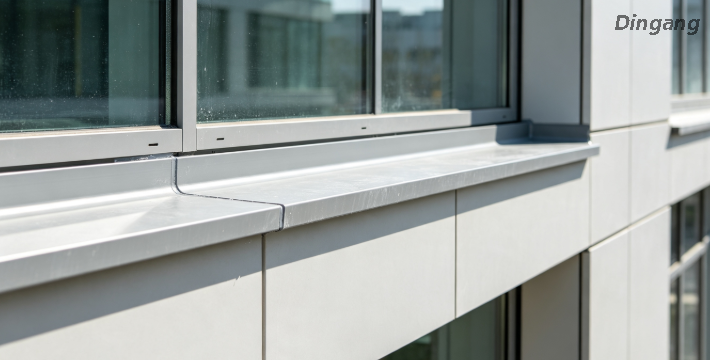

Residential construction: New residential building exterior window sill waterproof decoration

Villa project: Custom window edge finishing, sunroom window sill flashing

Old building renovation: Replace rotten PVC or iron window sill materials

Commercial building: Office building, hotel exterior window waterproof trim

Indoor decoration: Indoor window sill, bay window decorative covering plate

Export Packaging

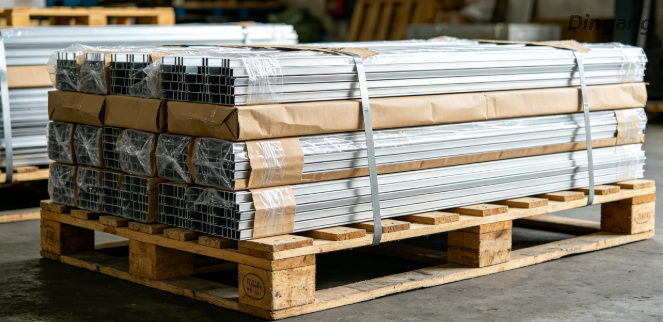

Aluminum trim strips separated by protective film. Bundled by specification and wrapped with moisture-proof kraft paper and PE film. Fastened on IPPC fumigated wooden pallets with strapping tape. Clear shipping marks marked on outside. We can provide fumigation certificate, MTC and inspection documents for overseas construction project customs clearance.

FAQ

Q1: What is the advantage compared with PVC window sill trim?

A: PVC material is easy to aging, crack and deform under outdoor sunlight. Our aluminum trim with prepainted coating features anti-aging, non-deformable, waterproof and long service life for external application.

Q2: Can you make special bending shapes as customer drawings?

A: Yes. We support customized profile mould, different slope, edge folding shape according to architectural design drawing.

Q3: Which coating to choose for coastal projects?

A: PVDF coating is recommended for coastal areas, better UV resistance and salt spray performance to resist marine corrosive environment. Ordinary inland projects can choose cost-effective PE coating.

Q4: Is on-site cutting work available during installation?

A: Yes. The aluminum material can be cut, punched and simply processed on construction site to adapt to actual window size.
