Authentic Marble Texture Appearance: Advanced transfer printing coating technology perfectly simulates natural marble grain, presenting realistic stone texture and color transition. It achieves the luxury decorative effect of natural marble while avoiding the defects of natural stone, such as heavy weight, crack and color variation.
Excellent Weather & Corrosion Resistance: Multi-layer coating system including PE, HDP or PVDF protects aluminum substrate. It resists UV aging, acid rain, salt spray and industrial pollution, no grain fading, chalking or peeling for long-term outdoor and indoor use.
Lightweight & High Rigidity: Much lighter than natural marble, greatly reduces the load of building structure. Good rigidity and flatness, stable dimension under temperature fluctuation, safe for high-rise curtain wall, ceiling and wall cladding projects.
Superior Processability: Good cutting, bending, punching and stamping performance. The marble pattern coating remains intact after deep forming without cracking. Easy to fabricate into wall panels, ceiling boards, curtain wall sheets and customized decorative components.
Low Maintenance & Self-cleaning Surface: Compact and smooth coated surface prevents dust and dirt adhesion. Rainwater can wash away contaminants automatically. No regular polishing or sealing work required, saving later maintenance cost significantly.
Fire Resistant & Eco-friendly: Aluminum base is non-combustible inorganic material, no toxic smoke released under high temperature. No radioactive hazard compared with natural stone. 100% recyclable aluminum material meets green building certification requirements.
Consistent Batch Performance: Strict color and grain control during production, stable texture and color between different batches, avoiding big color difference which commonly occurs in natural marble.
Item | Specification |
|---|---|
Aluminum Alloy | 1100, 3003, 3004, 5005, 5052 |
Temper | H14, H16, H24, H26 |
Raw Material Thickness | 0.20mm – 2.0mm, customized thickness available |
Coating System | PE Polyester, HDP, PVDF (Fluorocarbon), marble transfer print coating |
Coating Thickness | Top coat 20–28μm, back coat 5–8μm; PVDF top coat ≥25μm |
Width | 500mm – 1600mm, precise slitting according to customer drawings |
Surface Finish | Natural marble grain, stone texture, matte, semi-gloss |

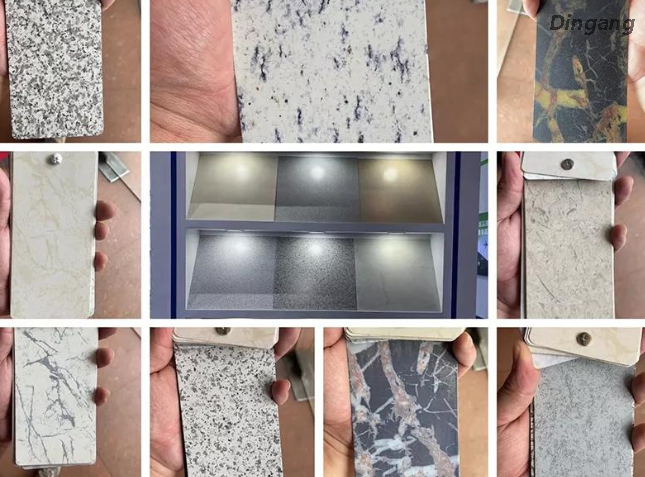

Pattern | Multiple classic marble patterns, custom marble grain design supported |
Marble finish aluminum adopts continuous coil coating and thermal transfer printing technology. Process flow: aluminum coil uncoiling → degreasing and cleaning → chemical conversion treatment → primer coating → base top coating → marble grain thermal transfer → curing → protective film lamination → cooling → online quality inspection → slitting / rewinding → finished product packing. The thermal transfer process fuses marble pattern tightly with paint layer to prevent pattern peeling during subsequent forming. Each batch will inspect grain fidelity, coating adhesion and weather resistance.
Interior & exterior building curtain wall panels, facade renovation projects
Indoor decorative wall cladding, background wall, lobby decorative panels
Aluminum suspended ceiling, square ceiling and strip ceiling for commercial buildings
Kitchen cabinet, door panel, furniture decorative aluminum sheets
Elevator cabin decoration, exhibition booth and luxury space decorative components
Complete quality tests are performed before shipment: coating thickness test, grain & color difference check, cross-cut adhesion test, T-bend flexibility test, impact resistance test, salt spray test and UV accelerated aging test. Mill Test Certificate (MTC) can be supplied. We check surface flatness, scratch and pattern integrity for every coil to guarantee high decorative standard.
Standard seaworthy export packing. Aluminum coils wrapped with waterproof kraft paper and plastic film, fixed on fumigated wooden pallets. Edge protectors are equipped to avoid edge damage during ocean transportation. Custom packing solution is available upon special container loading requirements.
Q: What coating option for outdoor marble finish aluminum?
A: PVDF or HDP coating is recommended for exterior use to ensure long-term anti-fading of marble pattern. PE coating is suitable for indoor decoration only.
Q: Can you customize new marble patterns?
A: Yes. We can develop new marble grain designs according to customers’ sample or picture requirements.
Q: What is your MOQ for custom marble patterns?
A: Existing marble patterns have low MOQ. Custom new patterns require higher MOQ, please contact us for quotation.
