Custom RAL Color Coating Aluminum Prepainted Aluminum Coil Sheet Strip for Construction Decoration Roller Shutter

1. Core Advantages

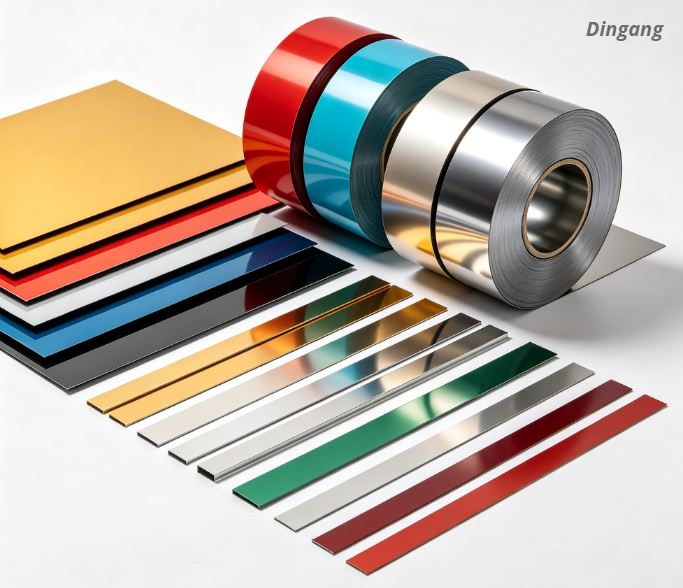

1. Full product forms one-stop supply：Cover three main forms: prepainted aluminum coil (raw roll), color flat sheet (cut finished plate), prepainted narrow strip (slitted mini coil). Unified coating production line, same color system, no batch color difference, save customers multi-supplier procurement cost.

2. Dual coating grade selection：PE polyester coating for indoor low-budget projects, cost-effective, 8-10 years service life; PVDF fluorocarbon coating with super anti-UV & anti-salt spray, 20-30 years outdoor service life, suitable for coastal & heavy industry areas.

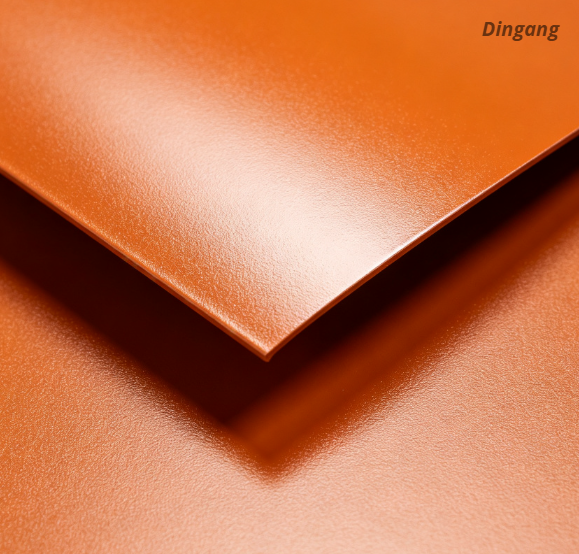

3. Rich surface effects：Solid matte/gloss color, metallic silver/gold/bronze, transfer printing wood grain, marble stone grain, camouflage grain. All RAL standard colors covered, custom special color matching available.

4. Double baking process guarantee：Primer + topcoat double coating & double high temperature baking, compact paint layer, strong adhesion, 180° bending without paint crack or peeling, better weather resistance than single coating products.

5. Unified quality standard：All color coating aluminum products adopt same pretreatment and coating production line, coating thickness, adhesion, anti-aging performance completely consistent, convenient for customers matching use in one project.

6. Eco-friendly & durable：Water-based environmental paint, no formaldehyde & heavy metal, meets RoHS & REACH standards; aluminum substrate 100% recyclable, low carbon energy saving building material.

2. Production Process

Raw aluminum coil uncoiling → surface degreasing & cleaning → chromate passivation pretreatment → primary primer coating → first baking curing → top finish color coating → second baking cooling → online thickness & color detection → protective film lamination → different forms processing (coil rewinding / sheet cutting / strip slitting) → finished product inspection → export packaging.

Full automatic closed production line, constant temperature & humidity workshop ensures stable quality for every batch.

3. Standard Technical Parameters

• Base substrate alloy: 1060 pure aluminum, 3003 anti-rust aluminum

• Coating type: PE Polyester, PVDF Fluorocarbon

• Coating thickness: PE 18-28μm; PVDF 28-40μm

• Product forms: Coil / Flat Sheet / Narrow Strip Stripe

• Color system: Full RAL standard colors, custom special color matching

• Surface effects: High gloss, medium gloss, matte, metallic grain, wood grain, stone grain

• Anti-corrosion test: PE pass 500h salt spray; PVDF pass 1000h salt spray

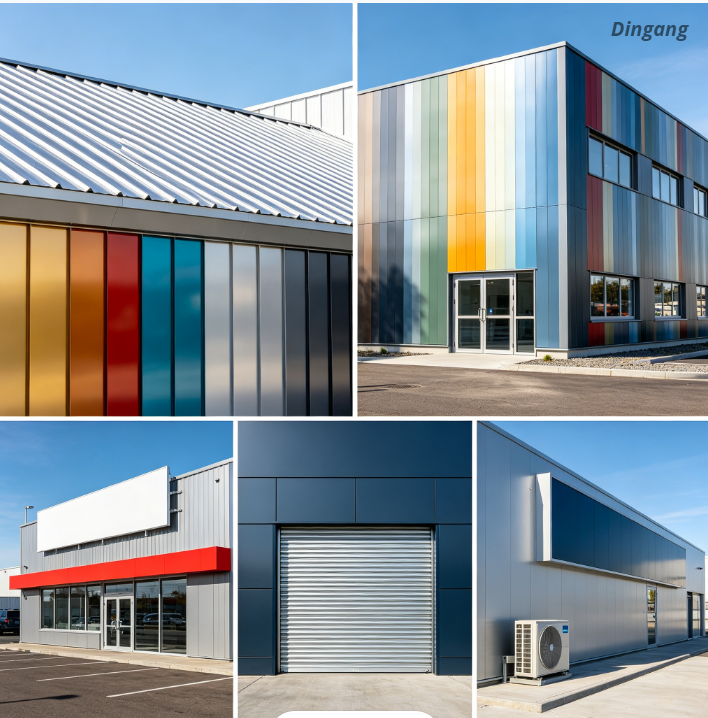

4. Main Application Fields

1. Building general engineering: Roof panel, exterior wall curtain wall, ceiling, gutter full set color aluminum material for construction projects

2. Door & window manufacturing: Roller shutter color coil + narrow color strip matching raw material for rolling gate factories

3. Advertising decoration: Color aluminum billboard plate, decorative edge trim strip, signboard substrate

4. Equipment outer shell: Air conditioner, refrigerator, water heater color coating aluminum raw material

5. Municipal construction: Bus station waiting booth, subway station decorative plate, park landscape decorative board

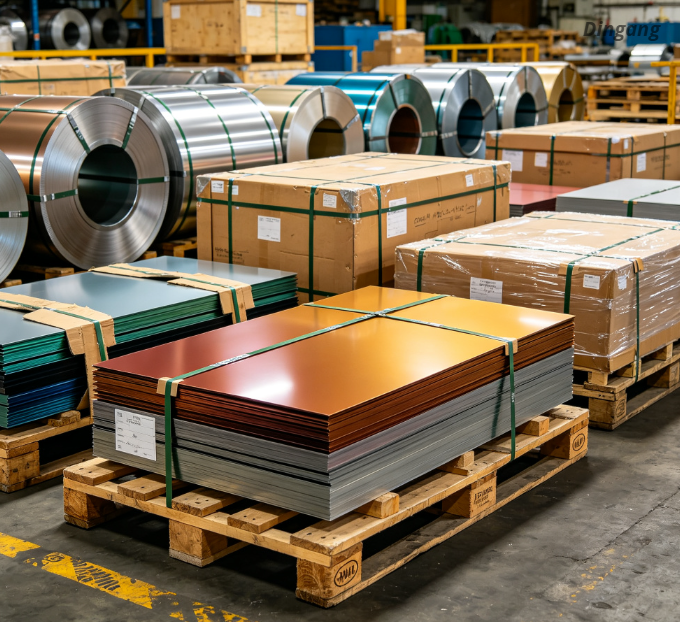

5. Export Packaging Standard

Different forms adopt separate professional export package:

• Coil: Multi-layer kraft paper + plastic film full wrapping, two ends plastic protective cover, wooden pallet steel strapping fixed

• Sheet: Foam paper separation between plates, four corners plastic anti-collision guards, whole stack waterproof film wrapping, wooden pallet fixed

• Strip: Single coil anti-rust film + kraft paper wrapping, paper spacer between coils, wooden pallet steel strapping

  All goods loaded in standard sea container, moisture-proof, anti-collision, suitable for long-distance ocean transportation. Fumigation certificate provided for customs clearance.

6. Inspection & After-sales Service

Triple strict inspection before delivery: coating thickness test, color difference comparison with confirmed sample, surface defect full inspection. Full set documents provided: coating performance test report, MTC mill test certificate, MSDS, RoHS report, commercial invoice & packing list. If any quality problem found within 7 working days after receiving goods, send photos & video evidence, our technical team will respond within 24 hours and provide re-production, supplementary shipment or reasonable compensation solutions.

FAQ

Q1: Can I buy coil, sheet and stripe color coating aluminum together in one order?

A: Yes, we supply full series color coating aluminum products, unified color production, zero obvious color difference between different forms, perfect for one project matching use.

Q2: How to choose PE or PVDF coating color aluminum?

A: Indoor short-term use choose PE polyester coating, low cost rich colors; outdoor, coastal, high temperature areas choose PVDF fluorocarbon coating, longer service life.

Q3: Can you produce wood grain and stone grain color coating aluminum?

A: Yes, wood grain, stone grain transfer printing color coating aluminum coil/sheet/strip are all available, realistic texture effect for high-end decoration.

Q4: Is color coating aluminum resistant to salt spray corrosion for seaside projects?

A: PVDF coated aluminum can pass 1000 hours neutral salt spray test, fully suitable for coastal and island environment.

Q5: What's the lead time for custom special color coating aluminum?

A: Color sample confirmation takes 3-5 working days, mass production lead time 10-15 working days after sample approved.
