Zero-Microcrack Prepainted Aluminum Coil | 0T-Bend Qualified Strip for Complex Stamping Components

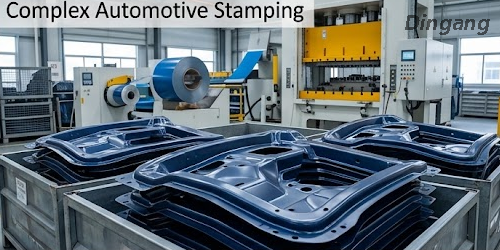

Manufacturing multi-stage precision metal components—such as automotive electrical brackets, complex home appliance housings, continuous lock-seam HVAC casings, and deep-drawn electronic enclosures—subject prepainted metal coils to extreme localized shear stresses, sharp 180° hemlock folding, high-tonnage corner draw-stamping, and tight edge-flanging. Standard prepainted aluminum coils frequently suffer from paint film micro-fissuring, coating flaking along tight bend radii, sub-film corrosion creep, and die-surface paint galling during high-speed stamping operations, forcing manufacturers to rely on costly and environmentally hazardous post-spray liquid coating methods.

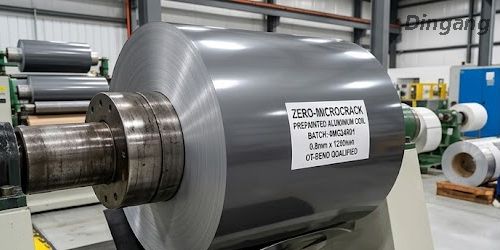

Engineered specifically to solve the severe mechanical strain limitations of conventional coated coil, our Zero-Microcrack Prepainted Aluminum Coil integrates a specialized ultra-flexible, high-elongation polyurethane-acrylic or modified polyester coating formulation certified for 0T-bend (180° zero-radius fold) compliance. Built on high-formability, fine-grain aluminum alloys (such as AA1100, AA3003, AA3105, or AA5052), this coil undergoes precision tension leveling, multi-stage non-chromate chemical conversion, and continuous cleanroom roller coating. It delivers zero coating fracture or micro-cracking under microscopic examination (100× magnification), complete heat-seal and corrosion barrier retention along sharp bend radii, high lubricity to prevent die-galling, and seamless processing through automated multi-station progressive stamping dies.

Product Advantages

Precision progressive stamping and complex cold-forming operations require prepainted metal strip that deforms in unison with the underlying aluminum grain without loss of coating adhesion or surface integrity. Replacing post-spray liquid coating processes or standard rigid painted coil with our certified 0T-Bend Qualified Prepainted Aluminum Coil delivers distinct technical, mechanical, and cost-saving advantages.

Key Performance Advantages for Complex Press Stamping

Certified 0T-Bend Micro-Crack Immunity: Formulated with long-chain elastomeric crosslinking that stretches without internal micro-fracturing during 180° flat-on-itself hemlock folds, sharp corner draws, and tight bead roll-forming.

Elimination of Post-Assembly Spray Painting: Pre-coated finish eliminates the massive capital expenditure, environmental compliance costs, and slow throughput bottlenecks of post-stamping liquid paint lines.

Integrated Slip-Agent Die Protection: Built-in solid lubricant additives reduce surface friction during pressing, preventing paint galling, metal pick-up, and tooling wear inside high-speed progressive die sets.

Uncompromised Post-Forming Corrosion Insulation: By maintaining a completely continuous, crack-free paint barrier over high-stress bend radii, the metal remains isolated from atmospheric moisture, salts, and chemical corrosion.

Superior Substrate Grain Stretchability: Fine-grain micro-structure aluminum alloys provide balanced anisotropic elongation (A₅₀ₘₘ ≥ 20%), preventing orange-peel surface texturing during deep-draw cup stamping.

Complete Product Specifications

Production Precision & Quality Assurance

Manufacturing 0T-bend qualified pre-painted aluminum coil requires precise strip tensioning, ultra-clean surface conversion, and strict thermal curing control to lock in polymer elasticity.

Tailored B2B OEM & Processing Services

To support precision stamping press shops, progressive die fabricators, and high-speed stamping operations, we offer tailored slitting, lubrication, and packaging services:

Micro-Width Precision Slitting for Stamping Feeds

Equipped with high-precision rotary slitters, we supply narrow strip coils down to 30mm widths with ultra-tight width tolerances (±0.10 mm) and minimal edge burr (≤ 0.015 mm), ensuring smooth feed through high-speed stamping press guides.

Custom Dry-Film & Wet Lubricant Application

In addition to internal slip additives, we can apply thin-film vanishable stamping oils or dry-film synthetic lubricants (0.5 - 1.5 g/m²) to assist in extreme deep-draw stamping operations without requiring post-cleaning.

Deep-Draw Formable Protective Film

Coils can be laminated with specialized high-elongation PE protective films (40 to 70 microns) engineered to stretch up to 300% alongside the metal during press drawing without tearing or leaving adhesive residue.

Precision Clean-Edge Export Coil Packaging

Slit coils are packaged with anti-static VCI anti-rust paper, vacuum-sealed in moisture-proof plastic wrapping, protected by radial edge guards, and secured on fumigated wooden skids for ocean freight.

Industrial Applications

Home Appliance Deep-Drawn Components & Control Knobs

Washing machine drum covers, refrigerator door handle brackets, and oven control bezel surrounds require intricate corner draws and lip-crimping without paint peeling or surface crazing.

Automotive Electrical Connector Brackets & Heat Shield Clamps

Under-hood automotive wiring harness clips, fuse box covers, and heat-shield mounting brackets undergo aggressive progressive die bending and tight crimping around cable bundles.

Continuous Lock-Seam HVAC Duct Fittings & Casing Corners

High-speed roll-forming of Pittsburgh lock-seams, snap-lock pipe joints, and 180° hemmed HVAC cabinet flanges demands maximum paint flexibility along tight metal interlocks.

Consumer Electronics Chassis Housings & Shielding Cans

Audio-visual receiver covers, laptop chassis internal frames, and EMI shielding cans utilize precision 0T-bend strip for sharp 90° corner press-braking without edge paint flaking.

Medical & Lighting Fixture End-Caps & Reflector Housings

Recessed LED troffer end-caps, medical equipment mounting channels, and architectural light reflector louvers benefit from pre-painted 0T strip that withstands multi-stage stamping without paint dust contamination.

FAQ

Q1:What does "0T-Bend Qualified" actually mean in practical stamping applications?

A "0T-bend" rating means the prepainted aluminum sheet can be bent 180° flat back on itself (with zero bend radius inside) without the paint film cracking, flaking, or losing adhesion along the outer fold line, even when tested with high-tack adhesive tape.

Q2:How do you verify that zero micro-cracking has occurred after deep stamping?

Zero micro-cracking is verified using two standardized methods: First, the bent crease is inspected under 100 × optical magnification to confirm the paint film is continuous and free of microscopic fissures. Second, an acidified copper sulfate solution immersion test is performed; if micro-cracks exist, the solution contacts the underlying aluminum, causing visual metal oxidation along the crack lines.

Q3:Can this 0T-bend coil replace post-stamping liquid spray painting?

Yes. Transitioning from unpainted aluminum to 0T-bend prepainted coil eliminates the need for manual post-assembly spray painting. This reduces component production lead times, eliminates hazardous paint shop emissions, and lowers overall piece-part manufacturing costs.

Q4:What aluminum alloys and tempers offer the best deep-drawing performance for complex press components?

AA3003-O or AA5052-O (fully annealed dead-soft tempers) offer the highest elongation (≥ 20%) for severe 3D deep-drawing and cup stamping. For structural parts requiring higher strength after forming, AA3003-H14 or AA5052-H32 provide an optimal balance of yield strength and bendability.

Q5:What are the minimum coil widths and core sizes available for automated press uncoilers?

We supply slit strip widths from 30mm to 1250mm, thickness gauges from 0.20mm to 1.20mm, and custom inner core diameters of 76mm (3-inch), 152mm (6-inch), 405mm, or 508mm in steel, cardboard, or plastic options.

Request a 0T-Bend Qualified Coil Sample & Press-Stamping Kit

Are you designing complex stamped metal components, upgrading progressive die tooling specs, or seeking to eliminate post-spray painting in your manufacturing facility? Contact our press-stamping technical engineering team today to request physical 0T-bend sample strips, microscopic test reports, and factory-direct quotations within 12 hours.
