Vibration-Damping Lacquered Aluminum Coil | Acoustic-Quiet Substrate for HVAC & Air Conditioning Units

Commercial and residential Heating, Ventilation, and Air Conditioning (HVAC) systems—including chiller units, air handling units (AHUs), rooftop ducting, and outdoor compressor enclosures—are prone to structural resonance and low-frequency structure-borne noise generated by internal fans, motors, and refrigerant compressors. Uninsulated metal sheet casings act as acoustic sounding boards, amplifying motor hums and panel vibrations, leading to strict noise-level compliance failures in residential zones, hospitals, and green-certified commercial buildings.

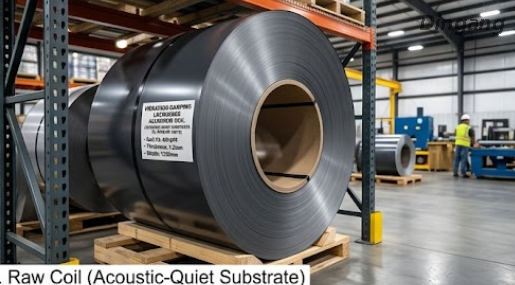

Engineered specifically to deaden structural vibration and absorb mechanical acoustic energy at the source, our Vibration-Damping Lacquered Aluminum Coil integrates a specialized viscoelastic sound-absorption lacquer system backed by a 15-Year Performance Warranty. Built on high-strength, corrosion-resistant aluminum alloys (such as AA3003, AA3005, or AA5052), the coil undergoes continuous chemical etching followed by cleanroom roller application of a high-loss-factor polymer matrix. It delivers superior loss factor sound dissipation, resistance to condensation and mold growth, complete chemical isolation against refrigerant and lubricant spills, and high formability for deep-draw stamping, louvre punching, and seam-locking in automated HVAC manufacturing lines.

Product Advantages

HVAC enclosures, fan housings, and air distribution ducts require materials that suppress noise generation without adding excessive weight or requiring manual, labor-intensive post-assembly stick-on rubber pads. Replacing heavy steel sheets or post-applied bitumen pads with our factory-lacquered Vibration-Damping Aluminum Coil delivers substantial acoustic, physical, and manufacturing advantages.

Key Performance Advantages for HVAC & Acoustic Applications

Engineered Viscoelastic Vibration Dissipation: Infused with high-internal-friction polymer chains that convert mechanical shear deformation caused by motor vibrations into harmless thermal micro-energy, reducing overall acoustic decibel radiation.

Streamlined Assembly (Elimination of Post-Applied Pads): Pre-applied damping lacquer eliminates the need for manual, costly installation of secondary bitumen or butyl rubber sound-deadening mats inside HVAC cabinet walls.

Corrosion-Resistant Non-Ferrous Base Matrix: Light-weight aluminum substrate provides natural resistance against atmospheric rust, preventing cabinet structural perforation in high-humidity outdoor condenser environments.

Condensation & Microbial Resistance: Smooth, hydrophobic lacquer surface prevents water pooling, eliminates moisture absorption into cabinet walls, and inhibits fungal/bacterial growth inside damp air streams.

High-Tonnage Stamping & Louvre Formability: Polymer formulation resists galling and flaking, maintaining total adhesion during rapid multi-slot louvre punching, 90° corner bends, and hemmed cabinet lock joints.

Complete Product Specifications

Production Precision & Quality Assurance

Manufacturing high-loss-factor lacquered aluminum requires precise coil tensioning, automated chemical conversion, and exact thermal curing profiles to lock in the viscoelastic properties of the acoustic coating.

Tailored B2B OEM & Processing Services

To support global HVAC OEMs, press-stamping facilities, and ducting fabricators, we provide customized coil slitting, protective films, and supply chain solutions tailored for high-speed automated assembly lines:

Precision Narrow Slitting for Fan Housing Ribbons

Our high-precision rotary slitting lines deliver custom-slit coil ribbons down to 60mm widths with minimal edge burr (≤ 0.02 mm), allowing direct feeding into continuous roll-forming and louvre-stamping machines.

Custom Color & Heat-Reflective Topcoats

While standard functional lacquers are translucent or neutral grey, we offer custom exterior topcoat colors (including RAL 7035 Light Grey, Off-White, and Metallic Silver) formulated with solar-reflective pigments for outdoor HVAC units.

Specialized Protective Films for Stamping Protection

Coils can be laminated with high-elongation PE protective films (60 to 100 microns) that protect the acoustic lacquer surface during deep-draw corner pressing and multi-station punching without tearing or leaving adhesive residue.

Moisture-Proof Seaworthy Export Packaging

Finished coils are wrapped in rust-inhibiting VCI paper, encased in heavy polyethylene film, fitted with radial edge protectors, and mounted on fumigated wooden pallets for international sea transport.

Industrial Applications

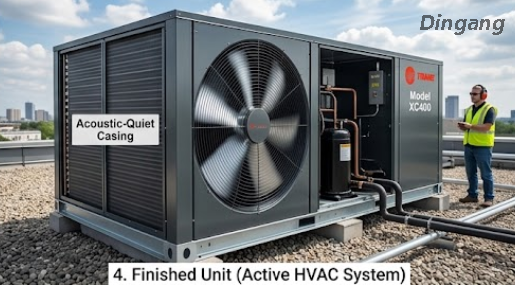

Residential & Commercial Outdoor Air Conditioner Condenser Units

Compressor-driven outdoor units emit significant low-frequency vibration. Using our damping lacquered coil for outer casing panels dampens cabinet wall chatter and reduces sound propagation toward neighboring properties.

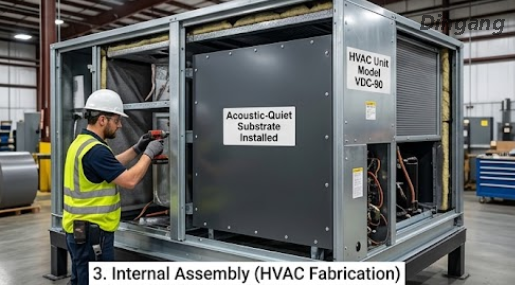

Air Handling Unit (AHU) Cabinet Walls & Fan Housings

AHUs process continuous high-velocity airflow. The acoustic-quiet substrate suppresses casing panel flexing and blower motor resonance, ensuring whisper-quiet operation in commercial office and hospital HVAC systems.

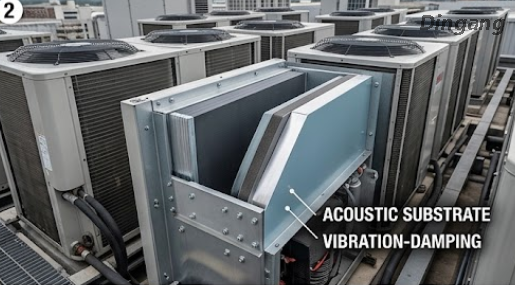

Rooftop Packaged Units & Ductwork Transition Panels

Rooftop units are subject to wind loads and internal fan vibrations that transmit through roof structures. Damping aluminum casings isolate vibrational energy before it penetrates the building envelope.

Precision Chiller Enclosures & Heat Pump Housings

High-capacity heat pumps operating under variable compressor loads benefit from structural damping, preventing metal fatigue along panel joints and maintaining acoustic compliance in urban installations.

Acoustic Attenuators & Air Distribution Baffles

Sound-attenuating HVAC baffles fabricated from vibration-damping aluminum coil provide dual passive noise control: absorbing airborne sound while preventing structural panel vibration within duct networks.

FAQ

Q1:How does the vibration-damping lacquer reduce HVAC operational noise?

The lacquer contains a viscoelastic polymer formulation with high internal molecular friction. When the aluminum sheet experiences mechanical vibration from fans or compressors, the coating undergoes cyclic shear deformation, rapidly converting vibrational kinetic energy into tiny amounts of heat and lowering panel noise output (dB).

Q2:Can this lacquered coil replace post-applied sound-deadening rubber/bitumen pads?

Yes. Factory-applied damping lacquered coil replaces manually installed stick-on bitumen or butyl rubber pads. This eliminates a costly manual assembly step, reduces overall unit weight, and prevents sound pads from ungluing inside moist HVAC units over time.

Q3:Will the damping lacquer peel or flake off during multi-slot louvre punching?

No. The cross-linked thermosetting lacquer achieves a T-bend rating of ≤ 1.0T - 1.5T and a cross-hatch adhesion rating of Class 5B (ASTM D3359). It flexes with the aluminum substrate during high-speed CNC punching, sharp louvre forming, and 90° corner bending without flaking or die clogging.

Q4:Does the damping performance hold up under extreme outdoor summer and winter temperatures?

Yes. The viscoelastic coating is engineered to maintain its acoustic loss factor (η ≥ 0.18) across a broad operating temperature range of -30°C to +90°C, ensuring quiet operation during both sub-zero winter heating and high-heat summer cooling cycles.

Q5:How does the coating handle exposure to compressor oils and refrigerants?

The cured lacquer forms a dense, chemical-resistant barrier. It passes 500-hour continuous spot and immersion tests against standard synthetic polyolester (POE) compressor lubricants and common refrigerants with zero surface softening, blistering, or loss of adhesion.

Request a Damping Lacquered Aluminum Coil Sample & Technical Kit

Are you designing quiet commercial air conditioners, upgrading AHU cabinet acoustic specs, or seeking to eliminate manual sound-pad installation in your HVAC assembly line? Contact our technical sales engineering team today to request physical acoustic samples, loss-factor test reports, and factory-direct quotations within 12 hours.
