Marine-Grade 5005 PVDF-Coated Aluminum Coil | Corrosion-Proof Alternative to Stainless Steel

In high-salinity coastal zones, marine infrastructure, and offshore architectural developments (ISO 12944 C5-M/CX extreme corrosive environments), selecting exterior building skin materials is a critical engineering decision. Standard 304 and 316 stainless steels have long been specified for their marine resistance; however, they present severe engineering and commercial vulnerabilities: extreme structural dead weight, high susceptibility to atmospheric "tea-staining" (localized iron-oxide pitting), severe springback during cold roll-forming, and escalating raw material costs.

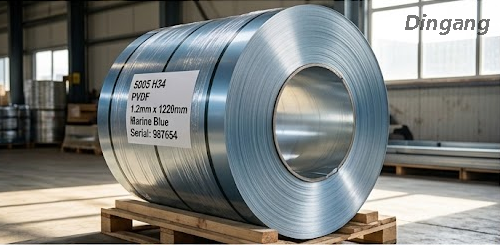

Our Marine-Grade 5005 PVDF-Coated Aluminum Coil is engineered as a direct, high-performance, cost-effective replacement for architectural stainless steel. Built on an AlMg1 (5005 alloy) solid substrate and fortified by a liquid-applied 70% Kynar 500® / Hylar 5000® PVDF fluoropolymer shield, this coil delivers total immunity to chloride-induced pitting corrosion, eliminates aesthetic surface disfigurement, cuts curtain-wall dead weight by over 65%, and slashes total installed material costs by up to 40%. Certified under AAMA 2605, EN 13501-1 Class A2-s1, d0, and Qualicoat Seaside Class 3, it provides 4000+ hours of continuous salt-fog resistance for modern coastal envelopes.

Product Advantages

High-rise architectural facades and commercial curtain walls in marine environments require surface finishes that guarantee multi-decade aesthetic and structural integrity without maintenance failure. Replacing bare stainless steel (304/316) or standard post-spray methods with our Marine-Grade 5005 PVDF pre-coated aluminum coil delivers distinct technical and economic advantages.

Key Performance Advantages for Architectural Envelopes

Guaranteed ΔE < 0.5 Precision: Every coil undergoes multi-point spectral evaluation using the CIE L*a*b* coordinate system to eliminate human error and ensure true color repeatability.

Seamless Multi-Phase Supply: Archived digital master recipes ensure that supplementary orders placed months apart match original factory runs down to the tightest tolerances.

AAMA 2605 & GB/T 5237.5 Compliance: High-purity 70% PVDF resin system guarantees 20+ years of extreme UV stability, zero chalking, and superior weatherability.

Optimized Coating Ductility for Blanking & Roll-Forming: Superior polymer flexibility allows tight T-bend profiling (≤ 1.5T - 2T) without paint flaking along corner folds or seams.

20-Year Manufacturer Warranty: Backed by comprehensive written performance guarantees for gloss retention, color fidelity, and film integrity.

Complete Product Specifications

Quality Control & Production Excellence

Our automated 3-coat continuous roller coating lines operate under strict Qualicoat Class 2 quality management standards, executing real-time thickness checks, MEK rub testing, and accelerated weathering audits on every production lot.

B2B Sourcing & Customization Services

To support global curtain wall fabricators, ACP manufacturers, and building material distributors, we offer custom manufacturing capabilities:

Precision Custom Slitting & Cut-to-Length Blanking

We provide high-speed inline slitting to exact ribbon widths (from 200mm to 1600mm) and custom sheet blanking with tight diagonal tolerances for direct panel processing.

Custom Color Matching & Surface Texture Development

Full color-matching services available within 48 hours for RAL, NCS, metallic, anodized-look, and custom architectural color swatches using advanced spectrophotometers.

Export-Grade Seaworthy Packaging Protection

All export shipments feature eye-to-sky or eye-to-wall packing, reinforced wooden pallets, rust-inhibiting VCI wrapping, and plastic corner protection for safe international ocean transport.

Industrial Applications

Waterfront High-Rise Envelopes & Coastal Resorts

Structures built within 500 meters of open sea face continuous wave spray, high ambient humidity, and intense solar UV radiation. 5005 PVDF coil provides complete atmospheric isolation, maintaining color fidelity without rust bleeding or surface chalking.

Marine Transit Terminals, Cruise Ports & Ferry Hubs

Passenger terminals handle heavy foot traffic, mechanical impacts, jet fuel fumes, and aggressive sea breezes. High-thickness 5005 PVDF coils deliver superior impact absorption, pencil hardness, and chemical resistance.

Desalination Plants, Salt Storage Facilities & Marine Heavy Industry

Industrial facilities processing seawater expose cladding to acidic fumes and concentrated sodium chloride vapor. 5005 AlMg1 alloy provides exceptional intergranular corrosion resistance under severe chemical loading.

Coastal Metallic Panels & Anodized-Look Architectural Facades

For projects requiring the industrial aesthetic of real metal without the discoloration, high weight, or cost of stainless steel, 5005 PVDF coil offers high-fidelity metallic, pearl, and anodized-mimic finishes with consistent batch-to-batch color controls.

High-Peel-Strength Marine Aluminum Composite Panels (ACP Skins)

Continuous ACP production lines require 5005 alloy coil with optimized backer primers to achieve maximum peel strength, preventing delamination under dynamic wind suction along coastal shorelines.

FAQ

Q1:Why is 5005 alloy specified for marine facades instead of 3003 alloy?

5005 alloy contains magnesium (~ 0.8% - 1.1%), which forms an effective self-passivating film in saltwater environments. This provides significantly higher resistance to alkaline and chloride pitting corrosion than manganese-based 3003 alloy.

Q2:What paint system is required for buildings within 500 meters of the coastline?

We specify a 3-Coat PVDF System (≥ 40μm dry film thickness), consisting of a chromated/zirconium primer, a 70% Kynar 500® topcoat, and a protective clear fluoropolymer topcoat.

Q3:What makes Qualicoat standard PVDF coating superior to standard PE coatings?

Qualicoat-certified PVDF coatings utilize a 70% Kynar 500® fluoropolymer resin with extremely strong Carbon-Fluorine bonds. This chemistry resists breakdown from UV radiation, preventing chalking, fading, and cracking, whereas standard PE coatings degrade within 5 to 7 years.

Q4:Can this PVDF aluminum coil be used for exterior ACP panel manufacturing?

Yes. Our PVDF coated coil is engineered specifically as an outer skin for Aluminum Composite Panels (ACP), providing excellent peel adhesion with PE/FR cores and meeting exterior curtain wall codes.

Q5:What coil packaging formats are available for international shipping?

We offer standard eye-to-sky or eye-to-wall coil configurations with 508mm (20 inches) or 610mm (24 inches) steel cores, wrapped in heavy moisture-proof VCI barriers on fumigated wooden pallets.
