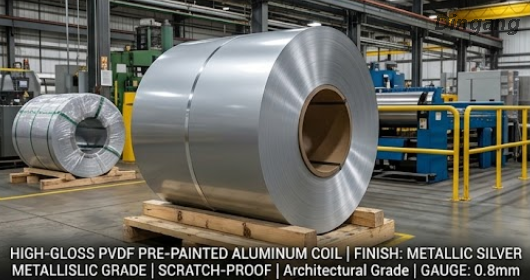

High-Gloss PVDF Pre-Painted Aluminum Coil | Scratch-Proof Metallic Finish for Architectural Ceiling Panels

Architectural ceiling systems in luxury commercial spaces—such as international airports, high-speed railway terminals, high-end shopping malls, and corporate headquarters—demand striking optical aesthetics combined with long-term mechanical durability. Traditional interior painted aluminum coils often suffer from low gloss retention, poor scratch resistance during installation and cleaning, surface haze under intense indoor lighting, and clear-coat cracking along tight edge-flanges or roll-formed ceiling baffles.

Engineered specifically to fulfill the stringent visual and mechanical requirements of suspended metal ceiling systems, linear strip panels, and custom ceiling tiles, our High-Gloss PVDF Pre-Painted Aluminum Coil features a specialized 3-coat high-build fluorocarbon finish (70-85% gloss level) modified with high-density ceramic microspheres. Built on high-formability architectural alloys (such as AA3003, AA3105, or AA5052), this coil undergoes precision tension leveling, non-chromate surface conversion, and continuous cleanroom roller coating. It delivers brilliant metallic light reflectivity, outstanding resistance to installation scuffs and handling scratches, complete color consistency across large batch orders, and exceptional elasticity for high-speed continuous roll-forming, clip-in tile stamping, and tight 180° hemlock folding.

Product Advantages

Interior architectural ceiling panels require surface finishes that combine exceptional visual reflectivity with physical durability against handling, dust, and continuous indoor lighting thermal loads. Replacing standard low-gloss interior paints or post-sprayed liquid coatings with our factory-applied High-Gloss PVDF Pre-Painted Aluminum Coil delivers distinct technical and operational benefits.

Key Performance Advantages for Architectural Ceiling Systems

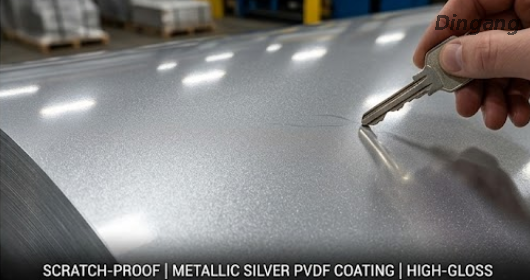

Scratch-Proof Micro-Ceramic Reinforced Finish: Infused with microscopic ceramic additives that increase topcoat matrix density, successfully preventing key scuffs, tool scratches, and glove marks during overhead installation.

Optical High-Gloss Metallic Depth: Precision reverse-roller application yields a smooth, orange-peel-free surface with 75%-85% specular reflectivity, accentuating metallic flake orientation and spatial brightness.

Anti-Sag & High Flatness Stability: In-line tension leveling removes internal residual stresses in the aluminum strip, guaranteeing flat ceiling panel lay-flat properties without visual oil-canning or sagging over wide spans.

Non-Yellowing Indoor Thermal & Lighting Resilience: FEVE/PVDF resin matrix provides total resistance to UV degradation from LED lighting fixtures and ceiling HVAC heat dissipation, maintaining original color and gloss without yellowing.

Ductile Roll-Forming & Hemming Performance: Formulated with elastic polymer modifiers that permit tight U-baffle roll-forming, clip-in tile edge-crimping, and perforation stamping without paint flaking along stress points.

Complete Product Specifications

Production Precision & Quality Assurance

Manufacturing high-gloss, defect-free architectural aluminum coils requires an ultra-clean processing environment and continuous surface monitoring. Our automated coating line integrates multi-stage tension leveling, Class 10,000 cleanroom application, and online optical defect scanning.

Tailored B2B OEM & Processing Services

To support ceiling system manufacturers, roll-forming fabricators, and interior contractors, we offer customized processing and packaging solutions tailored specifically for architectural ceiling production lines:

Precision Narrow Slitting for Linear Baffles

Our high-speed rotary slitting lines deliver precision-slit ribbons down to 50mm widths with minimal burr (≤ 0.02 mm), allowing direct feed into automated linear baffle roll-forming equipment.

Micro-Perforation & Acoustic Blanking Compatibility

We provide custom tension-leveled coils optimized for continuous acoustic perforation processes, ensuring the high-gloss paint film does not chip or burr around micro-perforated holes (e.g., Ø 1.8mm or Ø 2.5mm patterns).

Customized Protective Film & Printing

Coils are laminated with specialized medium-tack or easy-peel PE protective films (50 to 80 microns) with directional arrows and customer branding to protect the high-gloss finish during punching, forming, and installation.

Export-Grade Eye-to-Sky / Eye-to-Wall Packaging

Coils are packaged using heavy VCI anti-rust paper, full plastic wrap, radial steel edge protectors, and fumigated wooden pallets to prevent transit abrasion and moisture damage during international ocean freight.

Industrial Applications

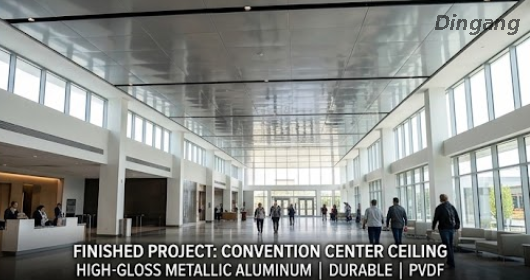

Commercial Airport Terminals & High-Speed Railway Station Ceilings

Transit hubs feature expansive open-ceiling structures that require light-reflective, high-gloss panels. Our scratch-resistant high-gloss coil provides brilliant ambient light amplification while enduring high-vibration environments.

Linear Strip Ceilings & Continuous U-Baffle Systems

High-speed roll-forming of U-shaped baffle ceiling slats demands high coating flexibility. The ≤ 1.0T bend rating enables sharp, continuous profile forming without micro-cracking at the bend radii.

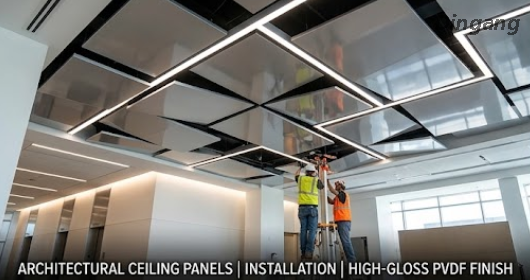

Square Lay-In & Clip-In Metal Ceiling Tiles

Precision perforated or solid metal ceiling tiles used in corporate office buildings benefit from high-gloss metallic surfaces that resist dust accumulation and maintain pristine visual uniformity across vast ceiling grids.

Shopping Mall Atrium & Interior Pillar Wall Cladding

High-traffic commercial interiors require metallic cladding that withstands public contact, cleaning equipment scuffs, and ambient moisture while delivering an upscale, modern visual aesthetic.

High-End Cleanroom & Healthcare Acoustic Ceiling Panels

Surgical suites, electronic cleanrooms, and pharmaceutical labs require smooth, non-porous interior surfaces. Our high-gloss PVDF surface resists chemical disinfectant washing, bacterial adhesion, and airborne particulate retention.

FAQ

Q1:Why choose PVDF/FEVE resin over standard PE for high-gloss interior ceiling panels?

While standard Polyethylene (PE) paints can achieve initial high gloss, they suffer from rapid gloss loss, resin yellowing under indoor UV/heat exposure, and low scratch resistance. PVDF/FEVE fluoropolymer resins maintain high gloss levels (>80%) for decades, offer superior surface hardness (≥ 2H), and resist chemical cleaning agents without fogging.

Q2:Does the high-gloss clear coat crack or micro-fissure when roll-forming deep U-baffle profiles?

No. The high-gloss PVDF topcoat is modified with elastic polyester/FEVE plasticizers that maintain coating flexibility. The coating achieves a T-bend rating of ≤ 1.0T - 1.5T, allowing 90° crisp bends and 180° hemmed edges without paint flaking or micro-fissuring.

Q3:How does the scratch-proof additive protect the surface during overhead installation?

Our high-gloss formulation incorporates surface-functionalized micro-ceramic spheres. During thermal curing, these particles concentrate near the upper clear coat boundary, creating a high-density barrier that resists tool scuffs, metal-on-metal friction, and glove abrasion during installation.

Q4:Can this high-gloss coil be perforated for acoustic ceiling tiles without chipping?

Yes. The high adhesion strength (Class 5B) between the non-chromate pretreatment layer and the paint primer ensures that high-speed CNC punching or rotary micro-perforation cuts clean holes without paint chipping along the cut edges.

Q5:What color options and metallic effect finishes are available for architectural ceilings?

We provide custom color-matching within 48 hours based on RAL, Pantone, or physical metal swatches. Options include High-Gloss Bright Silver, Anodized Look Metallic, Champagne Gold, Pure White, and Gloss Black.

Request a High-Gloss PVDF Ceiling Coil Sample & Specification Kit

Are you designing commercial interior ceiling systems, bidding on airport or transit hub projects, or sourcing high-gloss prepainted aluminum coils for your roll-forming production line? Contact our architectural technical sales team today to request physical high-gloss color swatches, technical data sheets, and competitive factory-direct quotations within 12 hours.
