High-Altitude UV-Resistant Coated Aluminum Coil | Non-Degrading Finish for Solar-Powered Drone Wings

High-Altitude Platform Station (HAPS) unmanned aerial vehicles (UAVs), solar-powered long-endurance drones, and stratospheric pseudo-satellites operate in extreme atmospheric environments (15,000–22,000 meters altitude). At these altitudes, structural wing skins, solar panel backing substrates, and fuselage fairings are exposed to intense unfiltered Ultraviolet (UV-A, UV-B, and high-energy UV-C) radiation, extreme thermal cycling (ranging from -60°C to +80°C), and high ozone concentrations. Standard paint finishes yellow, chalk, micro-crack, and delaminate within weeks, destroying structural integrity and reducing solar collection efficiency.

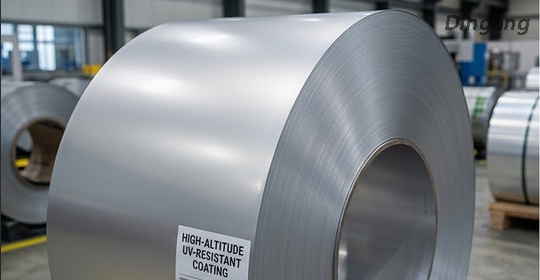

This specialized High-Altitude UV-Resistant Coated Aluminum Coil is engineered as an ultra-lightweight, non-degrading structural skin and solar substrate for solar-powered drone wings and stratospheric UAV enclosures. Built on ultra-thin, high-strength aerospace and marine-grade aluminum alloys (such as AA5052-H24,AA3004, or AA5754), this coil features an advanced FEVE (Fluoroethylene Vinyl Ether) or 70% Kynar 500® PVDF fluoropolymer coating matrix. The specialized resin chemistry provides zero-chalking UV stability, extreme resistance to thermal shock, and outstanding flexural ductility for automated precision wing skin stamping and roll-forming.

Product Advantages

High-Altitude Platform Stations (HAPS) and solar drones require structural materials that combine extreme light weight with non-degrading resistance to stratospheric solar radiation. Replacing heavy carbon composite layups or unprotected metal foils with our FEVE/PVDF pre-coated aluminum coil delivers critical aerospace performance and manufacturing advantages.

Key Performance Advantages for Stratospheric UAV Infrastructure

Unmatched Stratospheric UV Stability: The Carbon-Fluorine (C-F) chemical bond in our FEVE/PVDF resin matrix easily exceeds the energy of high-altitude solar UV photons, preventing chalking, yellowing, and resin binder erosion.

Ultra-Thin Gauge Precision (down to 0.15mm): Precision-rolled down to 0.15mm with ±0.005 mm tolerance, providing maximum structural rigidity with absolute minimum areal mass (g/m²) to optimize aircraft power-to-weight ratio.

Extreme Cryogenic & Thermal Shock Resistance: Tested to withstand rapid thermal shifts from +80°C in direct solar exposure down to -60°C in stratospheric night conditions without coating embrittlement or micro-cracking.

High Thermal Reflectivity & Emissivity Option: Formulated with high-reflectance pigments to reflect solar heat off internal avionics bays while maintaining thermal equilibrium across solar panel substrate beds.

Seamless Roll-Forming & Stamping Ductility (≤ 0.5T): Exceptional coating elasticity permits continuous roll-forming of leading-edge wing profiles, rib caps, and panel flanges without micro-cracking or edge lifting.

Complete Product Specifications

Quality Control & Production Excellence

Our continuous coil coating lines execute strict accelerated QUV radiation testing, cryogenic thermal shock audits, and laser gauge verification on every production batch to guarantee uncompromised performance in stratospheric flight environments.

B2B Sourcing & Customization Services

To support aerospace UAV OEMs, HAPS developers, and specialized stamping facilities, we offer tailored manufacturing configurations:

Ultra-Narrow Slitting for Automated Blanking & Forming

We provide precision inline slitting down to custom ribbon widths (from 100mm to 1500mm) maintained within tight tolerances (±0.10 mm) to directly feed automated roll-formers and stamping tools.

Customized Solar Reflectivity & Spectral Coatings

Available in custom solar-reflective whites, solar thermal absorption blacks, satin metallics, and high-emissivity custom shades engineered to optimize aircraft thermal balance.

Heavy-Duty Sea & Air Freight Packaging Protection

All export shipments feature core eye-to-sky or eye-to-wall configurations, heavy airtight vapor barriers packed with active desiccants, and rugged steel outer casings on fumigated wooden pallets to prevent transit damage.

Industrial Applications

This high-altitude UV-resistant pre-coated aluminum coil is specified across five core solar aviation, HAPS, and space-adjacent applications:

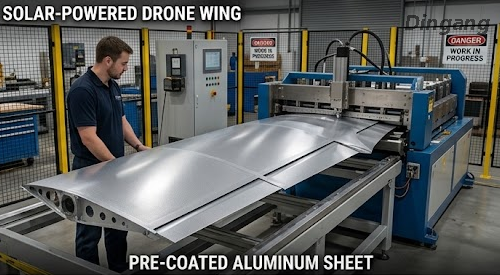

Solar-Powered Drone Wing Upper Skins & Panel Substrates

Solar arrays mounted on upper wing surfaces require smooth, dimensionally stable metal backing substrates. Our ultra-thin pre-coated coil provides a rigid, weather-sealed base that resists solar degradation and maintains flat alignment for flexible solar cell lamination.

High-Altitude Platform Station (HAPS) Fuselage Cladding

Long-endurance stratospheric UAVs operating for months at a time require lightweight fuselage skins that will not degrade under continuous solar bombardment. Our FEVE-coated coil seals the fuselage against environmental degradation while maintaining structural integrity.

Leading-Edge Wing Fairings & Rib Structural Caps

Leading edges endure intense aerodynamic friction and direct solar exposure. Roll-forming these profiles from our high-ductility pre-coated coil provides a seamless, erosion-resistant surface with zero paint flaking over extended flight missions.

Avionics Bay & Payload Enclosure Shielding

Onboard flight computers, satellite transceivers, and optical sensors require stable thermal environments. Our pre-coated aluminum offers non-magnetic, lightweight electromagnetic interference (EMI) shielding combined with tailored thermal reflectivity.

Ground Station Satellite Reflector Panels & Solar Trackers

Complementing aerial UAV fleets, ground control stations and solar tracking arrays require outdoor metal panels that withstand intense sunlight and desert weathering without fading, chalking, or corroding.

FAQ

Q1:Why is FEVE/PVDF coating required for high-altitude UAVs compared to standard polyester coatings?

Standard polyester coatings break down under high-energy stratospheric UV radiation, leading to resin chalking, micro-cracking, and mass loss. The Carbon-Fluorine bond in FEVE/PVDF resists UV photon degradation, ensuring zero chalking and long-term surface protection.

Q2:How thin can this pre-coated aluminum coil be manufactured?

We specialize in precision ultra-thin gauges starting from 0.15mm up to 0.80mm, maintained within an ultra-tight inline laser tolerance of ±0.005 mm to minimize aerial vehicle structural weight.

Q3:Can flexible solar cells be laminated directly onto this pre-coated aluminum surface?

Yes. The smooth, non-porous FEVE/PVDF finish provides an ideal substrate for industrial structural adhesives and EVA/POE encapsulants, ensuring strong peel strength and flat solar cell alignment.

Q4:Does pre-coated aluminum offer electromagnetic shielding for UAV electronics?

es. Aluminum provides natural electromagnetic interference (EMI) shielding, protecting delicate flight control systems and satellite communication links from external RF interference.

Q5:What T-bend formability rating does this ultra-thin coated coil achieve?

Despite its extreme environmental durability, the coating achieves a T-bend rating of ≤ 0.5T-1T and Class 5B cross-hatch adhesion, allowing tight wing leading-edge bends and rib cap forming without paint damage.

Request a Stratospheric Solar UAV Substrate Quote

Are you currently structuring technical submittals, designing high-altitude solar drones, or sourcing ultra-lightweight UV-resistant metal substrates for HAPS wing skin manufacturing? Send your target thickness, width, alloy grade, color code, and volume requirements to our technical sales desk for an engineering-grade quote and physical sample kit within 12 hours.
