Antimicrobial Pre-Painted Aluminum Sheet | Hygienic Surface for Hospital Cleanroom Operating Suites

Heavy-duty industrial applications—such as marine vessel superstructures, coastal architectural standing-seam roofing, offshore accommodation modules, and commercial transport trailer bodies—operate under constant exposure to high structural mechanical loads, dynamic wind uplift, high vibration, and hyper-saline marine atmospheres. Standard architectural aluminum coils (such as AA1100 or AA3003) lack the mechanical tensile strength and yield performance required for structural load-bearing applications, suffering from fatigue cracking, structural sagging, and rapid pitting corrosion in marine environments.

Engineered specifically to combine severe structural load capacity with total saltwater immunity, our High-Tensile Strength Coated Aluminum Coil utilizes high-magnesium 5000-series marine-grade alloys (AA5052, AA5083, or AA5754). The coil undergoes continuous non-chromate zirconium chemical passivation followed by an automated cleanroom roller-coating process applying high-performance PVDF or FEVE fluorocarbon resin topcoats. Backed by a 25-Year Marine Environment Performance Warranty, it delivers high yield strength (≥ 210 MPa), total resistance to saltwater corrosion and stress-corrosion cracking (SCC), zero paint delamination during deep heavy roll-forming, and high fatigue endurance under severe dynamic stress.

Product Advantages

Heavy roll-forming and marine structural applications require pre-painted metal substrates that pair exceptional structural load performance with long-term chemical isolation against saline environments. Replacing standard architectural aluminum alloys or painted structural steel with our High-Tensile 5000-Series Marine-Grade Coated Coil delivers distinct structural, financial, and operational advantages.

Key Performance Advantages for Marine & Heavy Structural Applications

High Yield Strength & Fatigue Resistance: Magnesium-alloyed 5000-series substrate provides nearly double the yield strength of standard 3003 alloys, preventing panel oil-canning, sag, and dynamic wind-load flexing across wide structural spans.

Immunity to Marine Salt Pitting & SCC: Natural oxide film combined with high-build PVDF fluorocarbon coatings prevents chloride ion penetration, eliminating pitting corrosion and stress-corrosion cracking in splash zones.

Formability for Thick-Gauge Roll-Forming: Specialized flexible resin crosslinking allows heavy-gauge (1.0mm  - 3.0 mm) cold roll-forming into high-standing seam profiles, structural decking, and corrugated panels without coating delamination.

Weight Reduction vs. Structural Marine Steel: Offers a 60% weight reduction compared to structural steel, reducing dead weight on vessel superstructures and offshore platforms while eliminating recurring field painting.

C5-M Marine Weathering & UV Protection: Formulated with 70% Kynar 500® PVDF resins, providing resistance to intense UV radiation, ocean spray, and industrial chemical atmospheres without chalking or color degradation (ΔE ≤ 5 over 25 years).

Complete Product Specifications

Production Precision & Quality Assurance

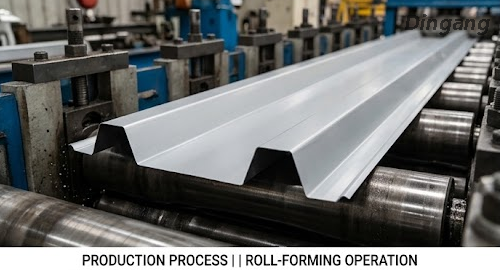

Manufacturing heavy-gauge, high-tensile pre-painted aluminum coils requires high-capacity tension leveling, multi-stage chemical passivation, and automated coating lines capable of handling thick-gauge, high-yield alloy strip.

Tailored B2B OEM & Processing Services

To support marine fabricators, structural roll-forming operations, and heavy transport manufacturers, we offer customized processing and packaging solutions built for heavy industrial environments:

Heavy-Gauge Precision Slitting & Blanking

Equipped with high-tonnage rotary slitting equipment, we supply thick-gauge slit coils down to 100mm widths with clean edges (≤ 0.03mm burr limit), as well as custom rectangular blanking for direct press-brake processing.

Custom Marine Color Matching & High-Build Finishes

Full color-matching available within 48 hours for RAL, British Standard (BS), and Federal Standard colors, with optional high-build 4-coat systems (40-50μm) for extreme C5-M marine exposure zones.

Specialized Heavy-Duty Protective Film Lamination

Coils can be laminated with customized 80 to 120-micron thick PE protective films designed to withstand the high friction and roller pressure of continuous heavy standing-seam roll-forming machinery.

Heavy-Duty Offshore Seaworthy Packaging

Finished coils are wrapped in rust-inhibiting VCI paper, sealed in heavy polyethylene barriers, fitted with steel radial edge protectors, and mounted on heavy-duty, fumigated wooden skids rated for up to 6.0 metric tons per coil.

Industrial Applications

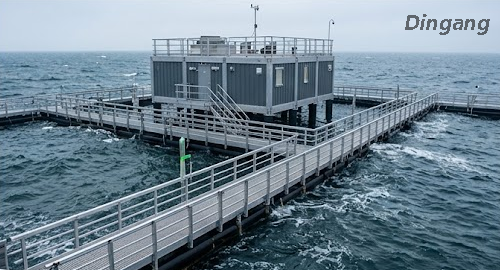

Offshore Platform Accommodation Modules & Helideck Cladding

Offshore oil platforms and wind farm substations operate in harsh marine environments. Our 5000-series coated coil provides lightweight, structural exterior cladding that resists high wind shear and continuous saltwater spray.

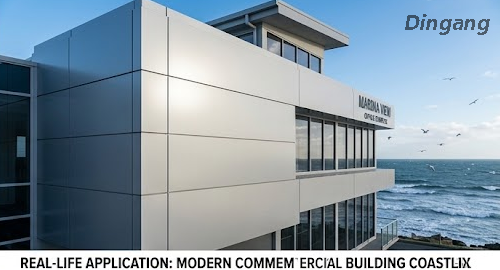

Coastal Architectural Standing-Seam Roofing & Structural Wall Panels

Commercial structures, airports, and sports arenas built within marine splash zones demand high-yield roof panels capable of withstanding extreme hurricane wind uplift forces without structural deformation.

Commercial Vessel Superstructures, Bulkheads & Marine Enclosures

Shipbuilders utilize high-tensile coated AA5052/AA5083 coil for vessel interior bulkheads, wheelhouse superstructures, and passenger ferry enclosures, lowering vessel center-of-gravity while ensuring fire and salt resistance.

Heavy Transport Semi-Trailer Enclosures & Tanker Jackets

Commercial refrigerated trailers and liquid tanker jackets require structural side-wall panels that withstand continuous road vibration, dynamic chassis flexing, and de-icing salt exposure.

Industrial Chemical Plant Roof Sheeting & Ocean Desalination Cladding

Chemical processing facilities and coastal desalination plants subject roof panels to acidic vapors and marine humidity. The C5-M rated PVDF coating isolates the high-strength aluminum substrate from severe chemical attack.

FAQ

Q1:Why is AA5052 / AA5083 preferred over AA3003 for coastal and marine roll-forming applications?

While AA3003 is suitable for standard architectural applications, AA5052 and AA5083 contain higher magnesium content (2.2% - 4.9%). This delivers nearly double the yield strength, higher fatigue resistance under wind load, and natural immunity to marine pitting and stress-corrosion cracking (SCC) in saltwater splash zones.

Q2:Will thick-gauge (1.5mm - 3.0mm) high-tensile coil experience paint cracking during roll-forming?

No. Our marine-grade coating formulation incorporates elastomeric fluoropolymer modifiers that maintain coating flexibility under high mechanical strain. The coil achieves a T-bend performance of ≤ 1.5T - 2.0T without paint flaking or micro-fissuring, even on heavy standing-seam roll-formers.

Q3:How does the coating perform under ASTM B117 salt-spray testing?

Our 3-coat 70% Kynar 500® PVDF system withstands over 3,000 hours of continuous neutral salt-spray testing (ASTM B117) and 2,000 hours of acidified salt-spray testing (ISO 9227) with zero surface blistering, cracking, or paint creep along scribe lines.

Q4:How do you handle material spring-back when roll-forming high-yield 5000-series alloys?

Our 5000-series coils undergo specialized stabilizing heat treatments (such as H32 or H111 temper) during manufacturing. This controls the yield-to-tensile ratio, providing consistent spring-back characteristics that allow roll-forming operators to maintain precise profile dimensions.

Q5:What coating thickness is recommended for C5-M high-salinity marine environments?

For applications within 500 meters of the coastline or on offshore platforms (C5-M corrosion category), we recommend a 3-coat system with a minimum total dry film thickness (DFT) of 32 - 38μm, including a dedicated clear protective coat.

Request a Marine-Grade High-Tensile Coated Coil Specification & Sample Kit

Are you designing coastal structural systems, building offshore accommodation modules, or sourcing high-yield prepainted aluminum coils for heavy roll-forming production lines? Contact our marine technical sales engineering team today to request physical alloy samples, salt-spray test reports, and factory-direct quotations within 12 hours.
