Batch-Consistent PVDF Coated Aluminum Coil | ΔE < 0.5 Color Tolerance for Large-Scale Developments

Large-scale architectural developments—including multi-building corporate campuses, phase-built transit hubs, and massive curtain wall facades—present a unique technical challenge: color consistency across vast surface areas and separate production batches. Microscopic shifts in paint formulation, viscosity, baking temperatures, or coil application speed can cause subtle color variations (Δ E > 1.0). When installed side-by-side on a building facade, these minor variations manifest as distracting panel-to-panel color shading, leading to costly project delays, rejected facade modules, and re-coating expenses.

Engineered specifically to solve high-volume visual uniformity challenges, our Batch-Consistent PVDF Coated Aluminum Coil guarantees an ultra-strict ΔE < 0.5 color tolerance across continuous production lots and separate manufacturing cycles. Powered by advanced 70% Kynar 500® / Hylar 5000® PVDF resin systems and real-time inline spectrophotometer monitoring, this coil delivers identical color fastness, gloss consistency, and long-term UV resistance. Built on structural-grade aluminum alloys (such as AA3003, AA3005, AA5052, and AA3105), it provides the structural stability and formability required for precision cassette folding, standing seam roofing, and metal facade systems.

Product Advantages

Executing mega-developments without color discrepancies requires absolute precision in paint formulation and thermal processing. By implementing our batch-consistent PVDF aluminum coil, project developers and cladding fabricators achieve unmatched visual perfection.

Key Performance Advantages for Large-Scale Developments

Guaranteed ΔE < 0.5 Precision: Every coil undergoes multi-point spectral evaluation using the CIE L*a*b* coordinate system to eliminate human error and ensure true color repeatability.

Seamless Multi-Phase Supply: Archived digital master recipes ensure that supplementary orders placed months apart match original factory runs down to the tightest tolerances.

AAMA 2605 & GB/T 5237.5 Compliance: High-purity 70% PVDF resin system guarantees 20+ years of extreme UV stability, zero chalking, and superior weatherability.

Optimized Coating Ductility for Blanking & Roll-Forming: Superior polymer flexibility allows tight T-bend profiling (≤ 1.5T-2T) without paint flaking along corner folds or seams.

20-Year Manufacturer Warranty: Backed by comprehensive written performance guarantees for gloss retention, color fidelity, and film integrity.

Complete Product Specifications

Quality Control & Color Control Ecosystem

Achieving a constant ΔE < 0.5 threshold requires end-to-end process control, combining automated chemical dosing, continuous thermal monitoring, and digital spectral checks.

B2B Sourcing & Customization Services

To support large-scale architectural projects, curtain wall fabricators, and metal roof suppliers, we offer complete commercial and technical backing:

Digital Master Color Archival Program

We store exact spectral digital master records and raw pigment formulations for your project. This guarantees that future replenishment orders—even years later—achieve identical ΔE < 0.5 color matching.

High-Speed Precision Slitting & Blanking

Continuous coil slitting available from 200mm to 1600mm widths (±0.10 mm tolerance) along with custom cut-to-length sheet blanking with protective PE surface films.

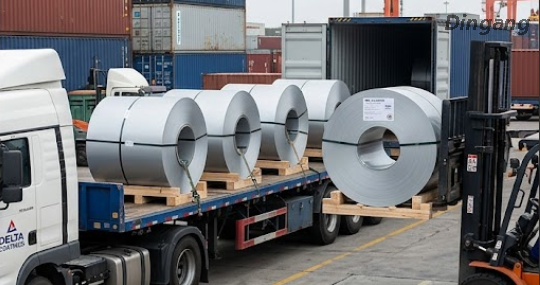

Heavy-Duty Seaworthy Export Packaging

Coils are packaged with eye-to-sky or eye-to-wall orientations, complete with heavy VCI moisture-barrier wraps, steel edge protectors, and fumigated wooden pallets designed for containerized ocean freight.

Industrial Applications

Large-Scale Multi-Building Corporate & Commercial Parks

Sprawling commercial developments feature multiple interconnected towers and low-rise blocks that require perfect aesthetic continuity. When thousands of individual solid aluminum panels or cassette units are installed across adjacent elevations, even minor color deviations (Δ E > 0.8) create visible "checkerboard" shading under direct sunlight.

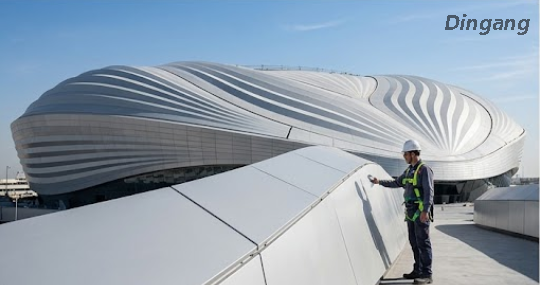

Multi-Phase Transit Infrastructure & Airport Hub Expansions

Transportation hubs often undergo multi-stage construction spanning several years. Sourcing prepainted aluminum for Phase 2 or Phase 3 extensions that matches Phase 1 structures requires locked paint formulas, digitized spectral archives, and ultra-precise thermal curing parameters.

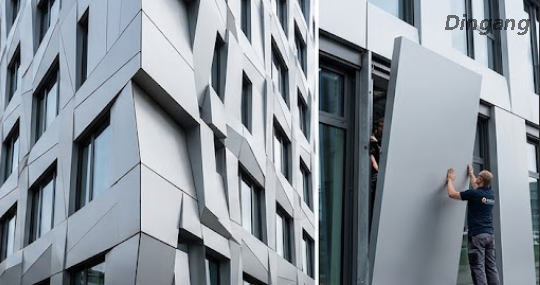

Solid Aluminum Cassettes & High-Rise Curtain Wall Cladding

High-rise metal facades utilize flat solid aluminum cassettes where reflectivity and color angle-dependence (flop effect) are critically magnified. Controlling both pigment concentration and gloss level prevents color optical distortion across vertical tower elevations.

Metallic & Pearl Metallic Architectural Envelopes

Metallic and pearl formulations contain mica or aluminum flakes that require exact electrostatic application and constant coating viscosity. Without ultra-strict process controls, flake orientation shifts during drying, resulting in severe directional visual variation across adjacent panels.

Premium Aluminum Composite Panel (ACP) Skins

Continuous ACP production lines process thousands of meters of top skin aluminum coil per day. Variations in coil surface tension, backer-primer curing, or dry film thickness impact core-peel strength, color uniformity, and post-lamination flatness.

FAQ

Q1:What is Δ E and why is a rating of < 0.5 significant for facade engineering?

ΔE measures the total color difference between two samples within the CIE L*a*b* color space. A ΔE value above 1.0 is noticeable to the naked eye. A ΔE < 0.5 ensures that color variations are virtually imperceptible, preventing panel shading on large architectural facades.

Q2:How do you guarantee color consistency between orders placed months or years apart?

We lock the project's digital master color coordinates using precision spectrophotometer readings and archive the exact raw pigment recipe. Re-orders are matched directly against this archived digital master rather than a physical sample, which can shift or fade over time.

Q3:What coating standards does this batch-consistent aluminum coil comply with?

Our coating system fully complies with North American AAMA 2605 and Chinese GB/T 5237.5-2017 standards, making it performance-equivalent to Qualicoat Class 3 specifications.

Q4:Can this coil be used for metallic and pearl colors with tight tolerances?

Yes. However, metallic and pearl finishes require a 3-coat or 4-coat system with strict control over flake orientation. We maintain strict viscosity and electrostatic applicator settings to ensure uniform metallic reflection across production runs.

Q5:What is the typical Lead Time and Minimum Order Quantity (MOQ)?

Standard production lead time is 25 to 30 days. Our standard MOQ is 3.0 to 5.0 metric tons per color batch for custom color formulations.

Request a ΔE < 0.5 Color-Matched Sample Kit

Preparing specifications or sourcing materials for a large-scale development? Contact our technical team with your required alloy, gauge, width, and RAL/custom color target. We will provide a complete technical proposal, MTC documentation, and a spectrophotometer-certified sample kit within 12 hours.
