Matt Finish PVDF Pre-Painted Aluminum Coil | Low-Gloss 15-20% Finish for Modern Commercial Storefronts

Modern commercial storefronts, flagship luxury retail entrances, urban boutique facades, and restaurant hospitality portals require refined visual depth that emphasizes architectural form over specular reflection. Standard high-gloss or semi-gloss architectural finishes (30% to 70% gloss) produce harsh street-level glare under midday sunlight and distort exterior building reflections. Furthermore, pedestrian-level retail cladding faces constant close-up scrutiny: traditional glossy sheets readily show oily fingerprint smudges, surface scuffs from pedestrian traffic, and slight structural "oil-canning" waves across flat entrance spans. When commercial fabricators attempt to achieve a matte look through offline batch powder-coating, they face heavy orange-peel textures, inconsistent gloss levels between separate production batches, and coating micro-cracks during crisp 90° press-brake bending.

Our Matt Finish PVDF Pre-Painted Aluminum Coil solves these aesthetic and fabrication challenges at the raw coil stage. Built on manganese-alloyed AA3003-H14 and AA3003-H24 structural aluminum, the strip undergoes multi-stage chemical passivation and continuous cleanroom roller-coating with a genuine 70% Kynar 500® / Hylar 5000® fluoropolymer resin system embedded with specialized microscopic matting agents. Engineered to deliver a tight 15% to 20% low-gloss satin sheen (measured at 60°), this finish scatters incident daylight to hide minor substrate deflections while offering an ultra-smooth, premium hand-feel that resists fingerprint oils. Delivering dead-flat tension-leveled flatness, verified ≤ 1.0T to 1.5T bend formability for sharp storefront cassette returns, and certified AAMA 2605 20-year outdoor UV durability, this coil enables architectural metal shops to shear, notch, route, and assemble luxury commercial storefronts directly from pre-finished stock.

Product Advantages

Commercial storefronts operate at eye level where visual imperfections, glare reflections, and surface marks directly influence brand perception. Our Matt Finish PVDF Pre-Painted Aluminum Coil pairs structural manganese-alloyed base metal with a precision-controlled 15% to 20% low-gloss fluoropolymer system. By incorporating microscopic matting agents within genuine 70% Kynar 500® resin, the coating scatters direct sunlight into a gentle diffuse glow, eliminating blinding street reflections and softening minor panel deflections to keep large storefront panels looking flat and clean. The dense, non-porous fluorocarbon surface naturally resists grease and skin oils, preventing greasy handprints from marring high-traffic entrance doors and push-plate areas. In the fabrication shop, continuous roller-applied coil avoids the heavy orange-peel texturing common in powder-coat booths, providing a uniform, smooth satin touch. With an elastomeric resin backbone that bends down to 1.0T without micro-cracking along 90° cassette folds, metal fabricators can shear, brake-form, and install storefront portals straight from the coil, cutting fabrication turnaround times by up to 30% while securing a certified 20-year outdoor weathering warranty.

Key Performance Advantages for Modern Commercial Storefronts

Controlled 15–20% Non-Glare Satin Finish: Disperses strong sunlight and urban street lighting, providing visual depth while hiding minor sheet oil-canning across wide panels.

Anti-Fingerprint & Smudge Resistance: Dense low-gloss surface naturally conceals skin oils, handprints, and dust accumulation in high-traffic pedestrian entrances.

Flake-Free Crisp 90° Cassette Bending: High polymer elasticity provides 1.0T to 1.5T bend formability, preventing paint crazing along sharp storefront box-corner folds.

Zero Orange-Peel Surface Texture: Precision reverse-roller coating ensures an ultra-smooth, uniform appearance that matches storefront window and curtain wall extrusions.

Certified 20-Year Exterior Weathering (AAMA 2605): Resists UV degradation, acid rain, and urban exhaust smog with minimal color shift (ΔE ≤ 5.0) and zero chalking.

Complete Product Specifications

Quality Control & Production Reliability

Every production coil is manufactured under ISO 9001 quality controls, utilizing automated chemical pre-treatment and cleanroom roller coating to maintain strict gloss boundaries, color consistency, and formability.

Tailored B2B OEM & Processing Services

To support commercial storefront fabricators, architectural sheet-metal press shops, and panel bending operations, we offer turnkey processing and jobsite-ready packaging:

Precision Custom Rotary Slitting & Blanking

Equipped with high-precision rotary slitters and cut-to-length shearing lines, we supply custom-slit coil ribbons down to 60mm and pre-cut rectangular blanks up to 4000mm in length with low edge burrs held under 0.015mm, allowing direct feeding into automated panel-bending machines.

Laser-Grade Protective Film Lamination

Coils can be laminated with specialized 70 to 100-micron co-extruded PE protective films designed specifically for fiber-laser cutting and press-brake forming. The film clings securely without lifting during high-speed piercing and shears, peeling off cleanly without leaving adhesive residue after storefront installation.

Custom Architectural Color & Brand Identity Matching

While Architectural Matte Black (RAL 9005), Anthracite Grey (RAL 7016), and Pure White (RAL 9010) are popular retail palettes, we formulate custom corporate brand identity colors within 48 hours, integrating certified inorganic ceramic pigments to hold low-gloss consistency across production runs.

Heavy-Duty Seaworthy Export Packaging

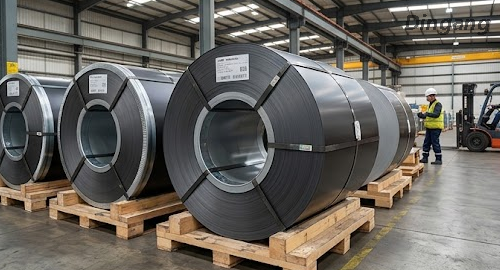

Coil reels and flat sheet packs are protected with vapor corrosion inhibitor (VCI) anti-rust paper, encapsulated in heavy waterproof plastic wrapping, fitted with rigid steel radial edge guards, and secured onto reinforced, fumigated wooden skids for international sea shipping.

Industrial Applications

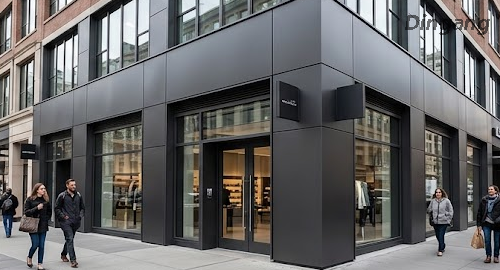

Flagship Luxury Retail Portal Surrounds & Entry Porticos

High-end commercial boutiques require clean, monolithic portals around large structural glass display windows. Fabricated from 1.5mm to 2.0mm AA3003-H14 low-gloss coil, these deep-return cassette portals provide a calm, non-reflective visual frame for window displays. The matte finish eliminates distracting reflections from passing street traffic, while the tension-leveled flat sheet preserves straight lines along multi-meter vertical portal jambs.

Commercial Storefront Transom Panels & Illuminated Signage Fascias

Above storefront display windows, horizontal transom fascias serve as mounting backgrounds for illuminated channel letters and retail brand signage. Stamped and folded from 1.2mm to 1.5mm pre-coated strip, these flat fascia panels eliminate glare from halo-lit LED signage. The 20-year AAMA 2605 finish prevents chalking lines from running down storefront glass during rainy weather.

Quick-Service Restaurant (QSR) Drive-Thru Canopies & Order Kiosk Casings

High-traffic drive-thru lanes subject exterior metal cladding to vehicle exhaust fumes, grease aerosols, and continuous outdoor sun exposure. Brake-formed from 1.0mm to 1.2mm matte PVDF coil, overhead canopy fascias and customer order kiosk housings resist soot staining and chemical cleaners, wiping down easily without dulling or altering the 15% to 20% satin finish.

Retail Entrance Vestibule Wall Paneling & Soffit Infill Strips

Entrance vestibules endure high foot traffic, fluctuating outdoor-indoor temperatures, and frequent contact from shoppers carrying bags and carts. Fabricated into crisp interlocking wall planks and recessed soffit panels, our matte pre-painted aluminum sheet resists contact scuffs while disguising oily hand smudges around push-plate zones, maintaining an orderly appearance throughout daily operations.

Architectural Storefront Column Covers & Corner Pilasters

Exterior structural steel columns flanking retail display bays require cladding with smooth, impact-resistant enclosures. Roll-formed into curved half-round covers or folded into square pilaster sleeves, 1.5mm to 2.0mm low-gloss coated sheet provides dent-resistant cladding that aligns with adjacent architectural metalwork without the visual distortion typical of high-gloss metal panels.

FAQ

Q1:Why is a 15% to 20% low-gloss finish preferred for commercial storefronts over standard semi-gloss?

Semi-gloss and high-gloss finishes (30% to 70% gloss) produce harsh reflections and specular glare from sunlight and streetlights, obscuring view into retail windows. A 15% to 20% matte finish scatters light evenly, giving storefronts an understated, high-end appearance. The low-gloss surface also masks minor metal deflections (oil-canning) and naturally hides oily fingerprints from shoppers.

Q2:How does the coating achieve a matte finish without compromising outdoor durability?

Our coating uses genuine 70% Kynar 500® PVDF resin modified with inert silica and microscopic matting agents. Unlike cheap flat paints that use chalky, porous fillers, our matting additives are locked within the crosslinked fluoropolymer matrix. This maintains non-porosity, water repellency, and full compliance with AAMA 2605 20-year weathering standards.

Q3:Will the matte coating pick up dirt or stain more easily than a smooth glossy finish?

No. While low-grade matte paints can have rough, porous textures that trap dirt, our continuous cleanroom roller-coating process produces a dense, sealed surface. It resists dirt pickup, automotive exhaust soot, and industrial smog, washing clean under normal rainfall and withstanding cleaning with standard commercial window-washing solutions.

Q4:Will the paint crack or craze when press-braking crisp 90° storefront cassette returns?

No. The fluoropolymer topcoat contains elastomeric resin flexibilizers that deliver a T-bend rating of ≤ 1.0T to 1.5T and Class 5B cross-hatch adhesion. It bends cleanly around 90° press-brake dies without micro-cracking, crazing, or separating along formed cassette returns and door wrap edges.

Q5:How do you guarantee consistent gloss levels across separate production batches?

We use closed-loop automated roller coaters and precise thermal catenary oven controls. Every master coil is continuously scanned with calibrated 60° digital gloss meters across its entire width to hold gloss strictly within the 15% to 20% range (±2 gloss units), ensuring that panels from different production runs match seamlessly on site.
