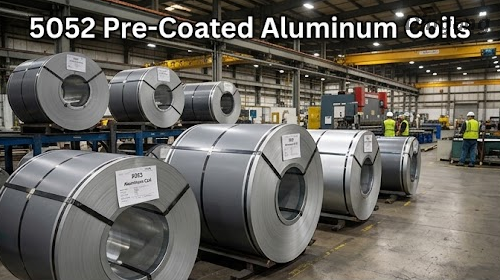

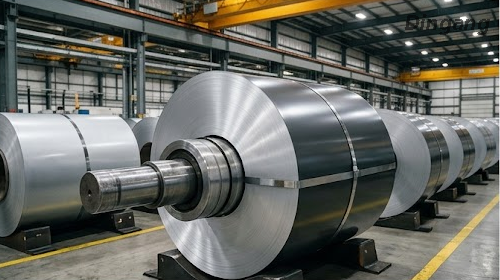

Impact-Resistant 5052 Pre-Coated Aluminum Coil | T-Bend 0T Flexible Surface for Mobile Robot Shells

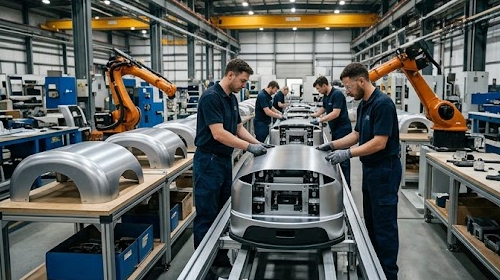

Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and automated warehouse delivery platforms operate in dynamic, high-traffic industrial facilities. In active logistics aisles, robot protective shells and chassis skirts endure continuous physical punishment: micro-collisions with steel pallet racking, high-frequency frame vibrations across expansion joints, localized impacts from falling freight, and daily scuffing from warehouse dust. When robot outer shells are fabricated from conventional sheet metal or rigid prepainted coil, multi-axis press-brake bending and sharp 180° hemmed edges cause micro-cracking and paint flaking along the fold crease. Furthermore, low-impact deflections during operation trigger paint crazing and delamination, forcing robotics manufacturers to rely on expensive, bottleneck-prone batch spray painting after sheet-metal welding.

Our Impact-Resistant 5052 Pre-Coated Aluminum Coil solves these fabrication bottlenecks and field durability issues at the raw-material stage. Formulated around fine-grain AA5052 magnesium-alloyed aluminum (available in fully annealed O or strain-hardened H32 tempers), the coil features a specialized high-elasticity polyurethane-acrylic or flexible fluoropolymer roller coating qualified for certified 0T-bend performance. Under full 180° flat-fold bending, the coating stretches alongside the aluminum crystalline matrix without micro-fracturing under 100× optical inspection. Providing direct impact resistance exceeding 9 Joules, a 60% mass reduction compared to steel casings to extend robot battery runtimes, and a scratch-resistant matte industrial aesthetic, this coil allows robotic hardware builders to stamp, punch, and deep-hem robot panels straight from the coil without secondary liquid spray finishing.

Product Advantages

Autonomous mobile robot body panels require materials that combine structural impact absorption, low deadweight, and high-strain formability without adding complex post-forming paint lines. Our Impact-Resistant 5052 Pre-Coated Aluminum Coil integrates high-strain magnesium-alloyed base metal with an elastic polymer topcoat crosslinked for 0T-bend ductility. Under rapid press-brake forming, deep corner draws, and 180° hemmed seam flattening, the cured resin matrix elongates in synchrony with the aluminum grain structure, eliminating micro-cracking and preventing white stress lines along tight bend radii. When low-speed warehouse bumps or dropped tools dent a robot panel, the elastic coating absorbs the deflection without chipping, crazing, or separating from the base metal. By shipping precision-slit pre-finished coils straight to your punch presses and bending brakes, your manufacturing plant eliminates third-party powder coating delays, reduces part scratch defects during assembly, and extends AMR operational runtimes between battery charges.

Key Performance Advantages for Mobile Robotics Enclosures

Certified 0T-Bend Formability: Zero paint micro-cracking during 180° flat-fold hemming and tight-radius press-brake bending, eliminating post-bend paint touchups.

Over 9-Joule Impact Absorption: Flexible coating flexes dynamically with substrate denting during warehouse pallet bumps without paint flaking or chipping.

60% Weight Reduction vs. Steel: Lowers overall tare mass of mobile robots, reducing drive motor strain and extending operational battery run-times per charge.

Burr-Free Clean-Shear CNC Punching: Tough polymer matrix prevents edge peeling during rapid CNC turret punching of ventilation grilles and sensor mounting ports.

Industrial Anti-Scuff Hardness: 2H pencil hardness resists scratches from warehouse debris, pallet friction, and routine equipment handling during fleet maintenance.

Complete Product Specifications

Parameter	Detailed Information
Main Product	Brushed Surface Color Coated Aluminum Coil
Optional Alloys	1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061, 8011
Available Tempers	O, H12, H14, H16, H18, H24, H26, H32, H34
Thickness Range	0.009 mm – 1.6 mm
Width Range	30 mm – 1600 mm
Inner Core Diameter	76mm,150 mm, 405 mm, 505 mm
Color Customization	RAL color system, Pantone color system, custom colors per samples
Coating Thickness	PVDF coating ≥25 μm; PE coating ≥18 μm
Standard Packaging	Export-grade wooden pallets (Eye to Wall / Eye to Sky loading modes)
Minimum Order Quantity	3 metric tons per specification
Delivery Cycle	30 – 45 working days
Loading Ports	Shanghai, Ningbo, Qingdao, Tianjin and other major ports
Payment Terms	30% T/T deposit in advance, 70% balance against B/L copy; L/C at sight

Quality Control & Production Reliability

Every production master roll undergoes closed-loop metallurgical verification, multi-stage chemical passivation, and automated cleanroom roller coating to maintain strict mechanical and optical performance standards.

Tailored B2B OEM & Processing Services

To support robotic chassis stamping lines, progressive die press shops, and sheet-metal fabricators, we offer turnkey processing and supply chain services:

Custom Blanking & Precision Rotary Slitting

Equipped with high-precision rotary slitters and cut-to-length shearing lines, we supply custom-slit widths down to 50mm and pre-cut rectangular blanks with low edge burrs held under 0.015mm, allowing direct feeding into automated punching and stamping systems.

Deep-Draw Formable Protective Film Lamination

Coils can be laminated with specialized high-elongation, low-to-medium tack PE protective films (60 to 100 microns) engineered to stretch during 90° brake bending and deep drawing without tearing, peeling off cleanly without leaving adhesive residue.

OEM Brand Color & Texture Customization

While industrial safety yellow (RAL 1023), machine grey (RAL 7035), and matte signal black (RAL 9005) are standard robotics colors, we formulate custom corporate identity colors within 48 hours, including fine-sand textures and anti-fingerprint topcoats.

Heavy-Duty Seaworthy Export Packaging

Coil packs and cut-sheet stacks are protected with vapor corrosion inhibitor (VCI) anti-rust barriers, encapsulated in heavy waterproof plastic wrapping, fitted with rigid steel radial edge guards, and secured onto reinforced, fumigated wooden skids for international sea shipping.

Industrial Applications

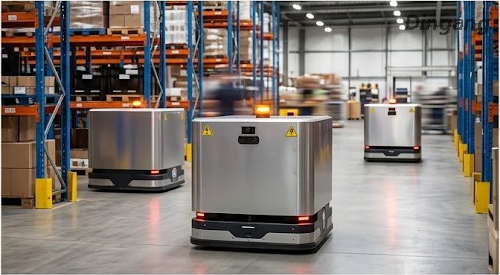

AGV/AMR Lower Perimeter Collision Skirts & Bumper Channels

Heavy automated guided vehicles running in pallet fulfillment aisles position low-slung bumper skirts right at the impact zone of forklift tines and dropped wooden pallets. Formed from 1.5mm to 2.0mm 5052-H32 coated strip, these rigid wrap-around skirts absorb frequent low-speed scrapes without structural fatigue. The 0T-flexible coating stays bonded to the metal even when collision deflection bars displace inward, preventing paint chips from contaminating automated conveyor lines.

Autonomous Forklift & Pallet Mover Mast Covers

Unmanned narrow-aisle forklifts and autonomous reach trucks carry hydraulic lifting masts subjected to high-cycle mechanical vibration and wind-plenum suction. Precision brake-formed mast covers stamped from 5052 pre-coated coil provide lightweight protection for drive chains and optical wire harnesses. The flexible coating maintains tight 90° corner bend integrity across multi-meter vertical runs without hairline cracks or edge corrosion.

LiDAR Sensor Turret Cowlings & 3D Optical Camera Bezels

Precision navigation scanners, LiDAR domes, and time-of-flight camera clusters require lightweight metal surrounds with tight-tolerance cutout apertures. Stamped from 1.0mm 5052-O deep-draw pre-coated coil, these complex rounded housings are formed in progressive dies with clean-sheared edges. The anti-glare matte finish prevents stray optical reflections that could interfere with infrared sensor measurements.

Heavy-Duty Autonomous Mobile Robot Battery Bay Access Doors

Industrial AMRs utilize heavy slide-out or flip-down battery compartment doors that warehouse operators open and close multiple times per shift. Stamped with full 180° hemmed perimeter flanges to eliminate sharp hand-hazard edges, 5052 pre-coated sheet delivers structural dent resistance without edge paint flaking, standing up to grease, battery terminal friction, and high-frequency latch cycling.

Automated Parcel Induction Sorter Trays & Cross-Belt Carriage Shrouds

High-speed cross-belt sorters in logistics hubs transport thousands of abrasive cardboard cartons and poly-bags every hour. Enclosure shrouds and side deflectors fabricated from 5052 pre-coated strip endure continuous friction and vibration from carrier belt acceleration, keeping their smooth surface finish without paint transfer onto shipped customer goods.

FAQ

Q1:What makes a "0T-Bend Qualified" coating essential for mobile robot shell fabrication?

A "0T-bend" rating certifies that the pre-painted aluminum sheet can be folded 180° flat against itself with zero inside bend radius without the paint film cracking or flaking along the fold. Mobile robot body panels use 180° hemmed perimeter flanges to eliminate sharp sheet-metal edges and add structural stiffness; a 0T-rated coating allows fabricators to hem panels on press brakes without post-paint touchups.

Q2:Why is AA5052 preferred over AA1100 or AA3003 for AGV and AMR body enclosures?

AA1100 and AA3003 have lower mechanical yield strengths and dent easily during warehouse collisions. AA5052 contains 2.2% to 2.8% magnesium, providing yield strength over 130–195 MPa (depending on temper). This gives robot body shells the rigidity to absorb everyday aisle bumps while shedding roughly 60% of the tare weight of traditional steel covers.

Q3:How does the coating withstand accidental collisions with warehouse pallet racks?

The coating is formulated with long-chain elastomeric crosslinking agents that give the cured resin high elongation. Tested to withstand direct impact energies over 9 Joules (ASTM D2794), the coating flexes with the underlying aluminum during localized denting, preventing the paint from cracking, crazing, or chipping away from the dented area.

Q4:Will the coating chip off during high-speed CNC turret punching of ventilation slots?

No. The combination of chrome-free zirconium pre-treatment and specialized ductile primer delivers Class 5B cross-hatch adhesion. The coating shears cleanly along tooling cutting edges during rapid punching, leaving crisp, burr-free perforation holes without paint dust or edge peeling.

Q5:How durable is the surface against industrial hydraulic fluids and battery chemicals?

The high-crosslink polyurethane/fluoropolymer topcoat is chemically stable and non-porous. It withstands contact with industrial hydraulic fluids, lubricating greases, battery electrolyte splashes, and daily cleaning with isopropyl alcohol or detergent solutions without softening or staining.

Request a Production Quote & Sample Validation Kit

Are you engineering mobile robot chassis shells, upgrading AGV/AMR perimeter collision protection, or looking to eliminate offline batch spray painting in your sheet-metal press shop?

Contact our technical sales engineering team today to review your robot shell project specifications and receive a factory-direct quotation within 12 hours.
