Scratch-Proof Textured Coated Aluminum Sheet | Stucco Embossed Finish for Industrial Robot Control Consoles

Human-machine interface (HMI) enclosures, teach pendant storage cradles, and floor-standing robot operator stations in automated manufacturing plants face relentless physical wear. In active automotive stamping lines, robotic welding cells, and machining centers, console panels are constantly subjected to abrasive contact: dropped hand tools, sliding technician clipboards, grit-covered work gloves, chemical coolant splashing, and intense overhead factory lighting. Smooth prepainted metal sheets quickly develop unsightly hairline scratches, micro-dents, oily fingerprint smudges, and harsh specular glare that washes out touchscreen displays and operator pushbuttons. Furthermore, fabricating rigid consoles from smooth sheet metal often requires internal welded stiffeners to prevent oil-canning across wide flat spans.

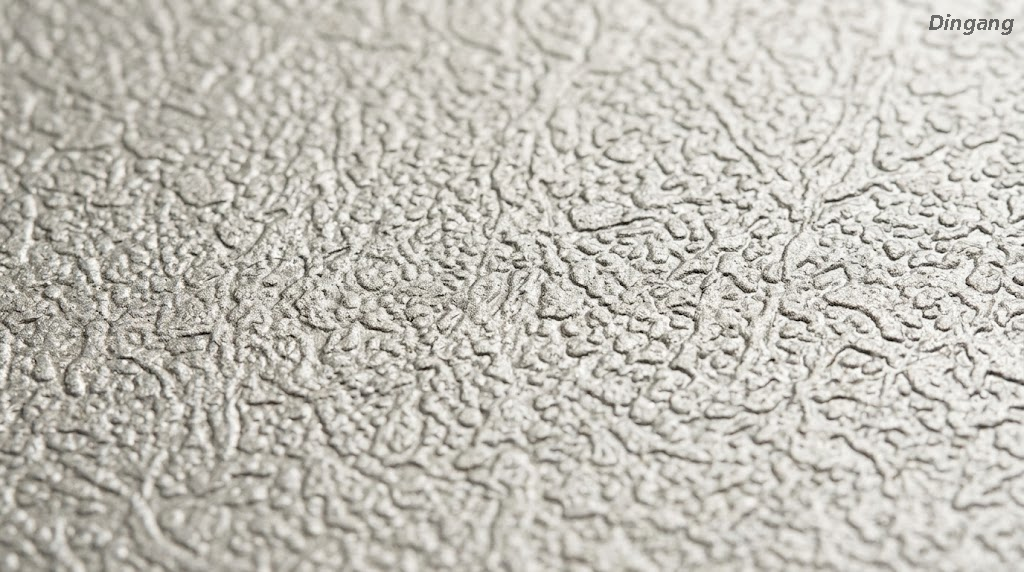

Our Scratch-Proof Textured Coated Aluminum Sheet solves these factory-floor durability issues by integrating mechanical embossing with specialized polymer surface chemistry. Built on structural-grade aluminum alloys (AA3003-H16 or AA5052-H32), the sheet is roller-embossed with a fine classic stucco pattern that increases structural cross-sectional stiffness by up to 30%, eliminating the need for welded internal gussets. The pre-coated finish utilizes a high-crosslink polyurethane or modified polyester resin embedded with micronized polyamide texturing agents. Delivering pencil hardness up to 3H, diffuse anti-glare light scattering, total resistance to oily fingerprint retention, and crack-free 90° press-brake bending, this pre-finished sheet allows control console fabricators to shear, punch, and assemble durable industrial operator stations directly from the pallet without secondary liquid spray painting.

Product Advantages

Industrial robot control stations operate in demanding factory settings where standard smooth sheet metal quickly reveals cosmetic and structural weaknesses. Our Scratch-Proof Textured Coated Aluminum Sheet addresses both challenges by pairing physical embossing with tough surface resin chemistry. The stucco-embossed surface geometry acts as a continuous structural corrugation across the entire panel, increasing flexural stiffness and dent resistance without adding sheet thickness or deadweight. At the same time, the specialized polyurethane-polyamide topcoat incorporates sub-micron texturing beads that elevate pencil scratch hardness to 3H, shielding panels from scratches caused by falling hand tools, abrasive gloves, and loose hardware. The microscopic bead structure diffuses overhead factory lighting to eliminate harsh screen glare, while naturally hiding oily fingerprint smudges from machine operators. Because the flexible coating system is engineered to bend down to 1.5T without cracking or flaking along brake-formed edges, console fabricators can process cut-to-length sheets directly through CNC turret punches and press brakes, completely eliminating the time, cost, and orange-peel inconsistencies of offline powder-coating booths.

Key Performance Advantages for Industrial Robot Consoles

3H Industrial Scratch Resistance: Polyamide-beaded resin matrix withstands heavy friction from dirty gloves, tool impacts, and sliding hardware without scratching down to bare metal.

Rigid Stucco Structural Stiffening: Embossed surface pattern boosts panel flexural stiffness by up to 30%, eliminating oil-canning and removing the need for welded stiffener ribs.

Anti-Glare Diffuse Optical Finish: Low-sheen matte texture (5% to 15% gloss) scatters overhead industrial lighting, maximizing operator visibility around HMI touchscreens.

Fingerprint and Oil Camouflage: Micro-textured surface naturally breaks up light reflection, disguising fingerprint smudges, greasy palm marks, and dust accumulations.

Direct Press-Brake Formability: High coating flexibility allows clean 90° corner bends down to 1.5T with zero paint flaking along fold seams, bypassing post-fabrication painting entirely.

Complete Product Specifications

Quality Control & Production Reliability

Every production lot is manufactured under strict quality controls encompassing base alloy spectroscopy, precision two-roll embossing, and continuous automated cleanroom roller coating to ensure consistent mechanical, visual, and protective properties.

Tailored B2B OEM & Processing Services

To support precision sheet metal press shops, electrical cabinet builders, and automation hardware fabricators, we offer tailored processing, custom sizing, and industrial protective packaging:

Precision Cut-to-Length Shearing & Custom Blanking

Equipped with high-precision leveling and cut-to-length shearing lines, we supply custom rectangular sheet blanks up to 4000mm in length with tight diagonal tolerances (±0.5mm) and deburred edges (≤ 0.015mm), allowing direct feeding into CNC punch presses and panel benders.

Deep-Draw Textured Protective Film Lamination

Sheets are laminated with specialized high-tack, micro-perforated PE protective films (70 to 100 microns) engineered to cling tightly to the recessed valleys of stucco textures during aggressive turret punching, laser cutting, and press braking without peeling off or leaving adhesive residues.

Custom Industrial Automation Color Matching

While Industrial Light Grey (RAL 7035), Slate Grey (RAL 7015), and Anthracite (RAL 7016) are standard machine control colors, we formulate custom corporate equipment colors within 48 hours, matching precise corporate palettes while preserving 3H scratch resistance and anti-glare matte texturing.

Heavy-Duty Seaworthy Flat-Pack Packaging

Cut-to-length sheets are inter-layered with moisture-proof paper, wrapped in vapor corrosion inhibitor (VCI) anti-rust film, sealed inside heavy-gauge waterproof covers, fitted with steel edge guards, and strapped securely onto heavy fumigated hardwood skids built to prevent shifting during international ocean transit.

Industrial Applications

Articulated Robot Teach Pendant Storage Cradles & Holster Brackets

Handheld robot teach pendants are repeatedly inserted and pulled out of metal docking holsters throughout every production shift. When formed from smooth sheet metal, these cradles quickly scratch and show bare aluminum wear marks. Fabricated from 1.2mm to 1.5mm stucco-embossed scratch-proof sheet, these brackets absorb continuous abrasive friction from pendant handles and thick umbilical cables, keeping their clean factory appearance over years of multi-shift operation.

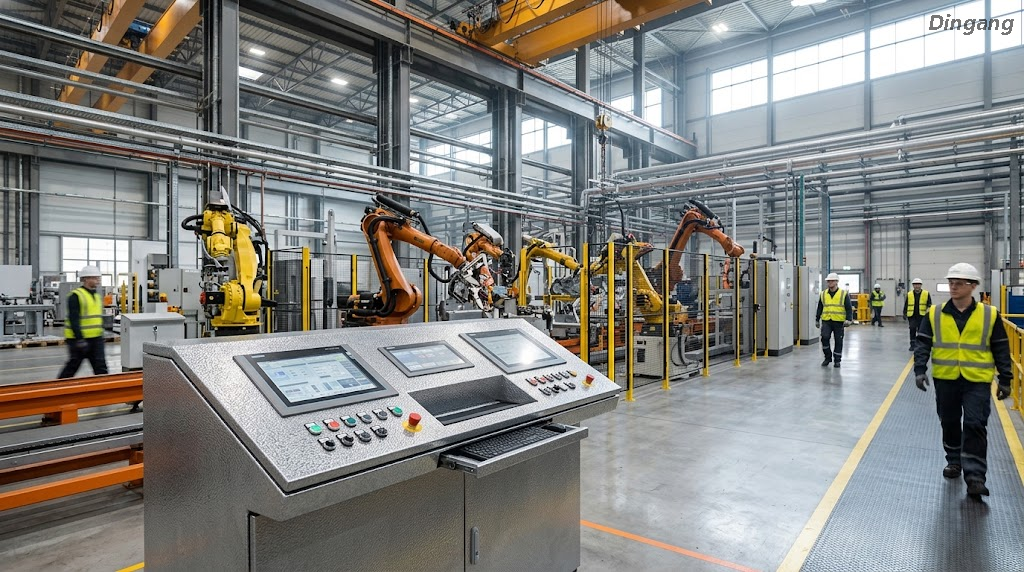

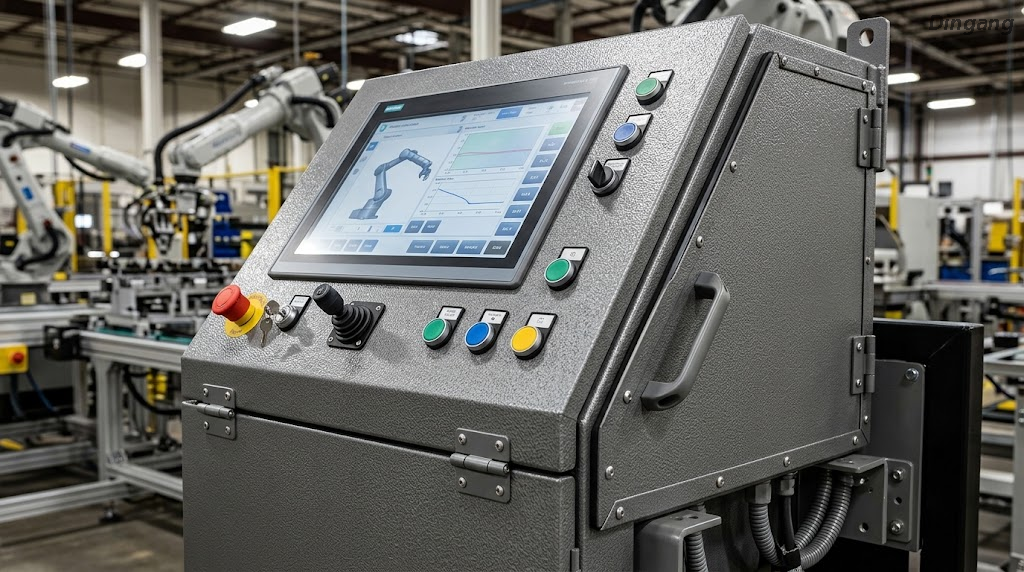

Standalone Robot Workcell HMI Pedestals & Sloped Operator Desks

Free-standing operator consoles located alongside automated welding or assembly cells feature wide, sloped top surfaces where operators rest heavy toolboxes, calibration laptops, and work binders. Stamped and folded from 1.5mm to 2.0mm AA5052 textured sheet, these desks provide rigid, wobble-free work surfaces that resist tool scratches and hide greasy palm prints, while diffuse light reflection keeps screen displays easy to read under high-bay stadium lighting.

CNC Machining Center Integrated Automation Console Doors

Access doors and front-panel enclosures on automated CNC machine loading cells face continuous misting from synthetic water-soluble cutting coolants, mineral lubricating oils, and flying metal chips. The chemical-resistant polyurethane-polyamide coating prevents coolant fluids from softening or blistering the paint, while the stucco pattern masks localized denting from stray metal chips tossed during part changeovers.

Automated Guided Vehicle (AGV) Central Dispatch Kiosk Enclosures

Floor-mounted dispatch kiosks and battery swap terminals situated along busy automated warehouse aisles endure continuous foot traffic and incidental bump contact from passing carts. Folded from 1.0mm to 1.5mm textured 3003-H16 sheet, these kiosk cabinets resist scuffs from steel-toed work boots and rolling pallet jacks, eliminating the need to send service teams out for paint touch-ups.

Multi-Axis Cartesian Robot Electrical Control Cabinet Side Enclosures

Large floor-standing electrical enclosures housing multi-axis servo drives, safety PLC racks, and terminal blocks require large, flat side covers measuring over two meters in height. Stucco-embossed textured aluminum sheets eliminate oil-canning across wide sheet spans without adding heavy internal bracing ribs, while shedding over 60% of the tare weight of traditional steel cabinet walls to make on-site maintenance removal easy for a single technician.

FAQ

Q1:Why is stucco-embossed aluminum better than flat sheet for robot control consoles?

Flat metal sheets show every minor surface flaw, bend easily across wide flat areas, and create harsh glare under factory lighting. Stucco embossing adds continuous geometric ridges that increase flexural stiffness by up to 30%, preventing panel oil-canning without requiring welded steel stiffener ribs. The textured pattern also scatters light to eliminate glare and naturally hides scratches and greasy fingerprints.

Q2:How does the textured coating achieve a 3H pencil scratch hardness rating?

Standard smooth coil coatings use soft resins that scratch easily under tool contact. Our coating incorporates micronized polyamide and ceramic additives crosslinked within a high-density polyurethane resin matrix. These micro-particles create a hard, slightly textured surface barrier that deflects sharp edges and abrasive particles, raising pencil hardness from standard F/H up to 3H.

Q3:Will the paint crack or flake when bending the embossed sheet on a press brake?

No. While the surface is hard against abrasive scratches, the underlying resin system is formulated with elastomeric flexibilizers that maintain a T-bend rating of ≤ 1.5T. It bends cleanly around 90° press-brake dies without micro-cracking, crazing, or separating from the stucco pattern ridges along the fold crease.

Q4:Can this material withstand synthetic CNC cutting coolants and lubricating oils?

Yes. The fully cured polyurethane topcoat is non-porous and chemically inert. It resists continuous contact with water-soluble machining coolants, mineral hydraulic oils, cleaning solvents, and industrial degreasers without softening, swelling, or losing gloss.

Q5:Can electrical ground connections be established on this pre-coated sheet?

Yes. When establishing safety chassis grounding for PLC boards or power supplies, technicians use standard toothed star-washers or serrated grounding screws that cut through the coating into the aluminum base at designated grounding studs, establishing low-resistance electrical pathways.

Request a Production Quote & Sample Validation Kit

Are you designing industrial robot control consoles, upgrading operator pendant cradles, or looking to eliminate offline batch spray painting in your sheet-metal press shop?

Contact our technical sales engineering team today to review your console enclosure specifications and receive a factory-direct quotation within 12 hours.
