3004 3105 Color Coated Aluminum Coil 0.4mm-0.8mm X 1000mm 1200mm for Trapezoidal Metal Roof Tile

Share to:

3004 3105 Color Coated Aluminum Coil 0.4mm-0.8mm X 1000mm 1200mm for Trapezoidal Metal Roof Tile

3004/3105 color coated aluminum coil features 0.4mm-0.8mm thickness and 1000mm/1200mm width. Optimized for roll forming into trapezoidal roof tiles, it adopts premium PE, HDP or PVDF coating. With high UV resistance, corrosion resistance and stable flexibility, it perfectly fits outdoor roofing projects in coastal and high-temperature areas.

Availability:

Product Description

Technical Specifications

Parameter	Standard Value / Specification
Alloy Grade	AA3004, AA3105
Temper	H14, H16, H24, H26
Thickness Range	0.40 mm – 0.80 mm
Width Range	1000 mm, 1200 mm, 1220 mm, 1250 mm (Customizable)
Coating Type	PE (Polyester), PVDF (Fluorocarbon), HDP (High Durable Polyester)
Top Paint Thickness	15–25 microns
Back Paint Thickness	5–8 microns (Epoxy/Service Coat)
Inner Diameter (ID)	508 mm / 610 mm
Application	Roll forming for trapezoidal / corrugated roofing sheets

Application

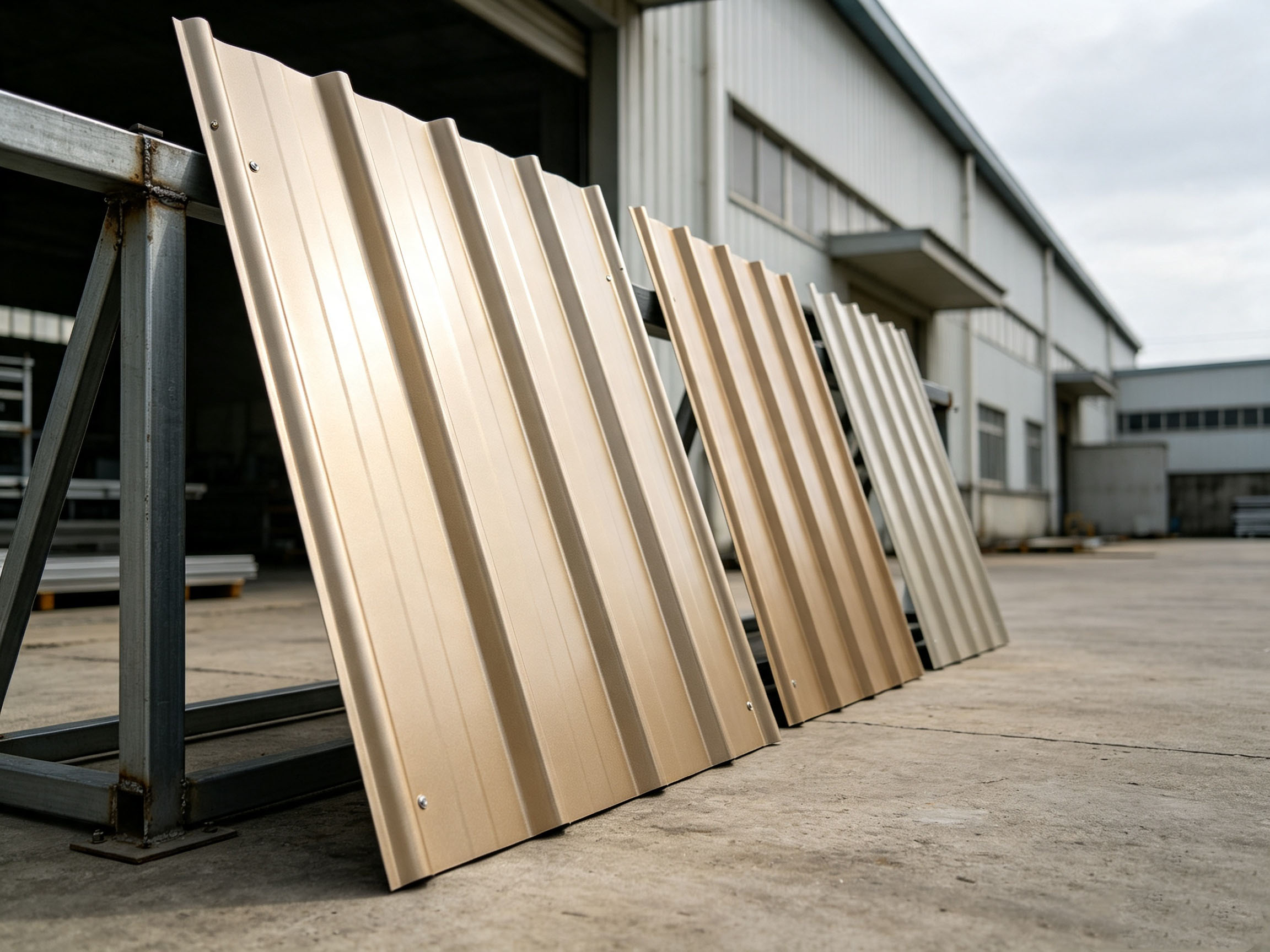

Designed for Trapezoidal Roofing Profile Manufacturing

Roll Forming Compatibility

Optimized for trapezoidal & corrugated tile roll‑forming machines. Balanced yield strength and elongation performance, no paint cracking or flaking during profiling.

Structural Durability

Compared with 1xxx series aluminum, 3004 & 3105 deliver higher tensile strength, ideal for long‑span trapezoidal roof panels and wall cladding.

Environmental Resistance

Well‑suited for Mediterranean and Middle‑East climate conditions. Excellent UV‑resistance and salt‑spray corrosion resistance for coastal environments.

Paint & Substrate Material Performance

Paint System & Substrate Performance

Substrate Chemical Performance: 3004 VS 3105

3004: Manganese‑magnesium alloy grade, higher mechanical strength. Preferred for trapezoidal roofing with high wind‑load requirements.

3105: Good bending & deep drawing capability, cost‑effective option for general roofing projects.

Paint Coating Layer Structure (From outside to substrate)

PE Protective Film
Top Coat (PE / PVDF / HDP)
Primer Coat
Chromate‑free conversion pre‑treatment layer
Aluminum Substrate (3004 / 3105)
Back Primer & Service Coat

Quality Control & Testing Standards

Quality Inspection Parameters

Thickness Tolerance: ±0.02 mm

Width Tolerance: ±1.0 mm

Coating Flexibility (T‑bend Test): 0T – 2T

Impact Resistance: 9 J (No paint peeling)

Pencil Hardness: ≥ 2H

MEK Rubbing Test: ≥ 100 times

Export Packaging & Logistics

Export Standard Packaging & Shipping

Packaging Type: Eye‑to‑Sky / Eye‑to‑Wall seaworthy export packing

Protective layers: Waterproof paper, PE plastic film, heavy‑duty steel strapping, wooden pallet / skid support

Single coil weight: 2.0 MT – 5.0 MT, adjustable according to client’s uncoiler capacity

Container loading: 20ft GP container, max loading weight 25‑27 MT

FAQs

Q1: Why choose 3004/3105 alloy instead of 1050/1100 for trapezoidal roofing sheets?

A: 3004 and 3105 alloys contain manganese and magnesium elements. They provide higher tensile strength and structural rigidity, effectively preventing trapezoidal roof panels from deformation under strong wind loads.

Q2: What coating grade do you recommend for tropical and Mediterranean coastal climates?

A: PVDF coating is highly recommended for high‑UV and salt‑spray coastal regions, offering more than 20 years outdoor weathering service life. HDP or PE coating is a cost‑efficient choice for standard industrial roofing projects.

Q3: What is the production lead‑time for one full 20ft container order?

A: Standard production lead‑time: 30 working days upon receipt of deposit and confirmed order details.
