Deep Drawing Lubrication Standards for 8011 Lacquered Aluminum Foil Containers

For stamping plant managers, tooling engineers, and packaging quality directors producing rigid aluminum food containers, mastering the tribology of deep drawing lacquered foil is essential for high-yield, zero-defect production. Alloy 8011-O (Fully Annealed) is the global standard substrate for semi-rigid container manufacturing due to its high tensile ductility, low work-hardening rate, and excellent lacquering compatibility.

However, forming deep-draw containers—such as smooth-wall catering trays, airline meal dishes, and wrinkled-wall pie pans—subjects thin-gauge foil (0.03 mm - 0.09mm) to intense tensile and compressive stresses. Without precise deep drawing lubrication standards, direct contact between the steel die and the lacquered foil causes severe surface friction. This leads to flange tearing, sidewall wrinkling, lacquered film scratch marks, and metal galling on high-speed press lines.

The Tribology of Deep Drawing 8011 Lacquered Aluminum Foil

Deep drawing converts a flat, pre-coated aluminum blank into a three-dimensional container using a punch, draw ring, and blank holder.

Friction Coefficients, Die Surface Contact Dynamics, and Metal Flow Strain

During forming, the aluminum foil undergoes severe plastic deformation:

Flange Area: The outer material is drawn inward, experiencing heavy circumferential compression.

Die Radius Area: The foil bends rapidly over the hardened tool steel radius under high normal forces.

Punch Radius Area: The bottom corners stretch radially under pure tension.

Maintaining a stable lubricant boundary film keeps the dynamic coefficient of friction ($\mu$) within the critical 0.05 - 0.08 window. Higher friction blocks metal flow into the cavity, snapping the sidewalls, while lower friction allows uncontrolled material feeding, generating heavy flange wrinkles.

Mechanical Failures: Wrinkling, Flange Buckling, Wall Thinning, and Bottom Pin-Holes

Uncontrolled friction leads to distinct press-line defects:

Tearing / Splitting at Punch Corners: Insufficient lubricant over the draw radius locks the material, causing tensile failure at the base corner.

Flange Wrinkling & Buckling: Non-uniform oil film weight permits uneven blank-holder pressure distribution, causing material overlap.

Lacquered Coating Scuffing & Galling: Boundary film breakdown allows aluminum micro-transfer onto the steel die, ruining protective lacquers and contaminating the tooling.

Lubricant Comparison Matrix: Viscosity, Dosing Rate, and Food Safety Standards

Core Industrial Applications & Regulatory Compliance Standards

Lubricant selection varies based on container depth, geometry, and processing conditions:

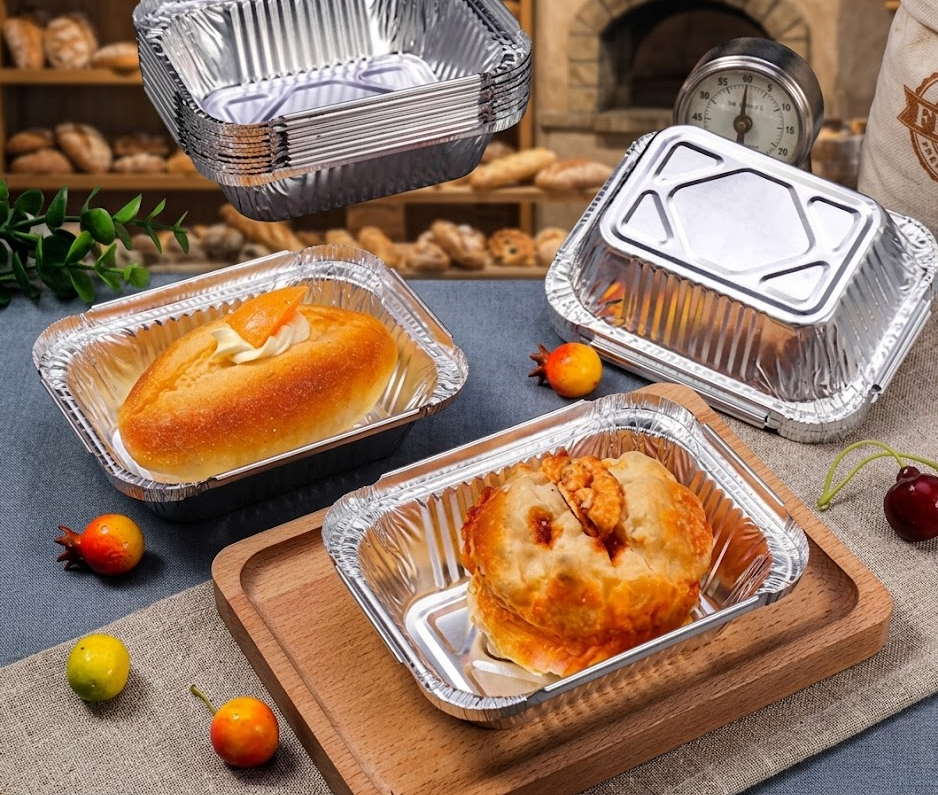

Smooth-Wall vs. Wrinkled-Wall Bakery & Meal Trays

Wrinkled-Wall Containers: Standard takeaway containers use pre-lubricated 8011 foil coated with DOS/DOA at 20 - 50 mg/m², relying on structural wall wrinkles to absorb excess material.

Smooth-Wall Containers: High-end dessert and catering trays feature zero-wrinkle rims, requiring heavy-duty synthetic esters or vanishing oils (200 - 600 mg/m²) to support high draw ratios without splitting.

View More >>

Airline Food Containers & Autoclavable Retort Dishes

Airline containers and autoclavable food trays undergo thermal processing (121°C - 130°C steam sterilization). Lubricants must be fully food-compliant and thermal-stable to prevent off-odors, surface discoloration, or taste contamination during retort processing.

View More >>

Global Food Contact Compliance: FDA 21 CFR, EU 10/2011, and BfR Standards

Container manufacturers must verify that all press lubricants comply with international regulations:

US FDA: 21 CFR 178.3910 (Surface lubricants used in the manufacture of metallic articles) and 21 CFR 178.3570 (Lubricants with incidental food contact - NSF H1).

European Union: Regulation (EU) No 10/2011 on plastic/coated materials and Article 3 of Framework Regulation (EC) No 1935/2004.

Germany BfR: BfR Recommendation IX on colorants and surface treatments for food packaging.

View More >>

Dioctyl Sebacate (DOS) & Dioctyl Adipate (DOA): Micro-Oiling Standard

Dioctyl Sebacate (DOS) and Dioctyl Adipate (DOA) are synthetic diesters widely used for mill-applied pre-lubrication on lacquered foil coils.

Characteristics: Extremely low viscosity (15 - 25 cSt at 40°C), high polarity, and excellent wetting properties.

Typical Film Weight: 15 - 60 mg/m² per side.

Key Advantage: Leaves a microscopic, odorless film that complies with food-contact regulations without requiring post-stamping degreasing.

Paraffinic Mineral Oils & Water-Soluble Synthetic Emulsions

White Mineral Oils: Pure paraffinic oils conforming to FDA 21 CFR 172.878; widely used for heavy-duty smooth-wall container drawing.

Water-Soluble Synthetics: Polyglycol-based water emulsions used on specialized automated press systems where continuous re-application and die washing are required.

Target Film Weight (mg/m²) Control and Distribution Across Web Width

Oil film weights must be verified using gravimetric solvent extraction or gravimetric infrared spectroscopy per ASTM B921. Non-uniform oil distribution causes uneven material flow into the die, leading to press jamming and part rejection.

Managing Heat Generation & Die Galling During High-Speed Stamping (> 200 strokes/min)

Continuous high-speed container stamping (200 - 300 strokes/min) generates significant frictional heat (> 80°C) in the die cavity. Heat thins standard lubricants, reducing film strength and causing aluminum galling. Incorporating thermal-stable synthetic ester additives or air-chilled die blowers maintains boundary lubricity during extended production runs.

Electrostatic Micro-Oiling vs. Roller Coater vs. Spray Lubrication

Electrostatic Micro-Oiling (Mill Standard): Uses high-voltage charging to atomize DOS or DOA into fine micro-droplets that deposit uniformly onto the grounded aluminum foil web. This process achieves tight thickness control (± 2 mg/m²) without mechanical web contact.

Precision Felt / Rubber Roller Coaters: Used on stamping press feeders to apply heavier synthetic oils (100 - 500 mg/m²). Highly effective for uniform coverage on wide-format multi-cavity tools.

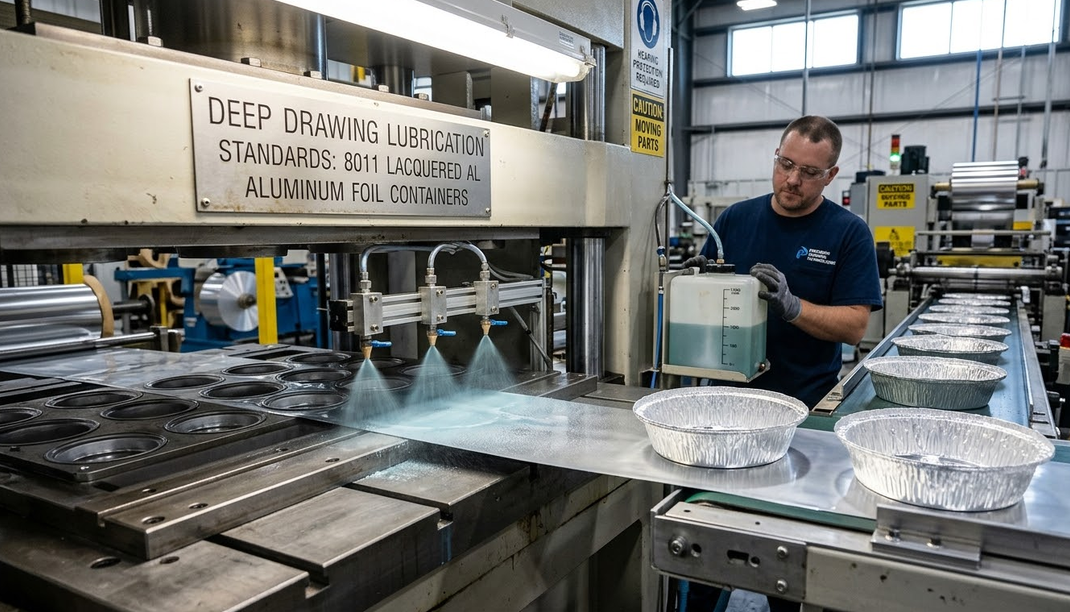

Pneumatic Spray Systems: Used for localized spot lubrication on extreme draw corners or complex die pockets.

FAQ

Q1:What is the standard DOS oil film weight for deep drawing 8011 lacquered foil containers?

A:The standard mill-applied DOS/DOA film weight ranges between 20 mg/m²  and  50  mg/m²  per side. This dosage provides sufficient lubricity for standard wrinkled-wall container stamping while maintaining full FDA food-contact compliance without requiring washing.

Q2:Can DOS pre-lubricated aluminum foil be used directly for smooth-wall container drawing?

A: Deep smooth-wall containers (> 30 mm draw depth) typically require higher lubricity than standard mill-applied DOS (20 - 50  mg/m²) provides. Press operators usually apply additional vanishing synthetic oil or NSF H1 ester oil (150 - 400 mg/m²) at the press feeder to prevent corner tearing.

Q3:What causes lacquered coating scratching during the deep drawing process?

A:Lacquer scratching is caused by breakdown of the lubricant film, high blank-holder pressure, dirty or galling steel dies, or improper lacquer curing (low surface hardness). Increasing lubricant film weight or switching to a higher-viscosity NSF H1 lubricant eliminates scuffing.

Q4:How do I test the oil film weight (mg/m²) on incoming 8011 foil shipments?

A:Lubricant film weight is tested using solvent extraction (weigh-strip-weigh method with solvent per ASTM B921) or non-destructive Fourier-Transform Infrared Spectroscopy (FTIR) calibrated to specific DOS/DOA absorbance curves.

Q5:Is post-stamping degreasing required for containers formed with DOS or vanishing oils?

A:No. Both DOS/DOA (applied at < 60 mg/m²) and vanishing synthetic oils are formulated for direct food contact under FDA 21 CFR regulations, eliminating the need for post-stamping washing or thermal degreasing cycles.

Conclusion

Controlling deep drawing lubrication parameters is essential to maximizing container press speeds, extending tool life, and eliminating scrap rates on 8011 lacquered aluminum foil lines. By specifying precise DOS/DOA micro-oiling or food-grade synthetic ester systems, container manufacturers achieve zero-defect forming while maintaining complete regulatory compliance.
