Aluminum Alloy 8011
Dingang
| Aluminum Alloy: | |
|---|---|
| Aluminum Foil Thickness: | |
| Color Options:: | |
| ID: | |
| Availability: | |
| Quantity: | |

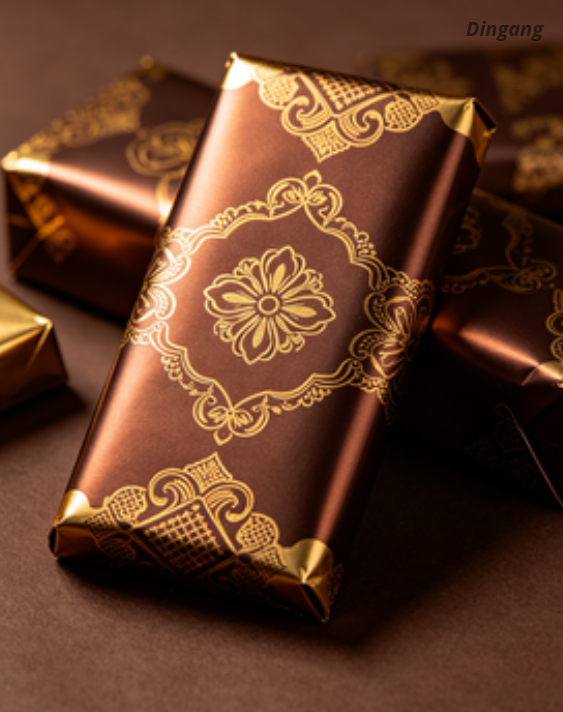

Printed 8011-O aluminum foil wrappers are designed for premium chocolates, truffles, pralines, chocolate bars, seasonal confectionery and gift-box assortments requiring metallic appearance, custom branding, dead-fold performance and a high-barrier aluminum layer.
The current foil range covers approximately 6–25μm with soft O temper. Custom colors, decorative graphics and up to 10-color rotogravure printing can be discussed according to artwork, foil gauge, wrapper format and production quantity.
For gift chocolate packaging, the wrapper can be supplied as printed aluminum foil, embossed foil, foil/paper laminate or another compatible converted structure. Rolls are suitable for automated converting and wrapping, while pre-cut sheets can be specified for manual or semi-automatic wrapping applications.
The complete packaging construction—including aluminum foil, primer, inks, protective lacquer, paper or film laminate, adhesive and the food-contact surface—should be confirmed according to the chocolate product, wrapping method and destination-market requirements.
Request Printed Chocolate Foil Samples
Technical Property | Current / Available Specification | Gift Chocolate Packaging Notes |
Product Type | Printed Aluminum Foil Wrapper | For premium chocolate, praline, truffle and gift confectionery |
Primary Alloy | AA8011 | Other structures should be evaluated separately where required |
Temper | O / Soft | Suitable for folding and close conformity around chocolate products |
Foil Thickness | 6–25μm | Select according to chocolate shape, wrapping method and laminate structure |
Thickness Tolerance | Current source reference ±3% | Confirm against the final gauge and commercial specification |
Printing | Up to 10-color rotogravure according to current capability | Suitable for logos, seasonal graphics, brand colors and decorative patterns |
Color Options | Multiple / Custom | Gold, silver, metallic effects and brand-specific colors subject to approved artwork |
Surface Wettability | Current reference ≥38 dynes/cm | Relevant before printing, priming or lacquering |
Dead-Fold | Characteristic of soft aluminum foil | Useful for chocolates, pralines, coins, eggs and shaped products |
Moisture Barrier | Current page reference WVTR <0.1g/m²·24h | Use contractually only with defined gauge, test method and complete wrapper structure |
Oxygen Barrier | Current page reference OTR <0.1cm³/m²·24h | Final value should be verified on the approved foil or laminate structure |
Core ID | 76mm | Other dimensions can be discussed according to converting equipment |
Reel Width | Customized | Specify exact machine or converting width |
Roll OD | Customized | Match customer unwind equipment |
Roll Weight | Customized | Specify handling and machine limitations |
Pre-Cut Sheets | Available subject to dimensions and production confirmation | Suitable for manual wrapping and premium gift chocolate production |
Embossing | Optional | Can add texture and premium visual differentiation |
Foil / Paper Lamination | Optional structure | Can add mechanical strength, stiffness and wrapping machinability |
Protective Overprint Lacquer | Optional / project-specific | Useful where printed graphics require additional abrasion protection |
Heat-Seal / Cold-Seal Layer | Optional functional coating | Must be specified separately; not an inherent property of bare printed foil |
Food-Contact Side | Project-specific | Exact lacquer, ink and laminate structure must be confirmed for the intended contact condition |
Aluminum foil naturally provides a metallic surface that can reinforce the premium appearance expected from gift chocolates, pralines and seasonal confectionery.
Selected areas can remain visibly metallic while other areas receive opaque, transparent or decorative inks according to the approved artwork.
Soft aluminum foil retains folds with limited spring-back, allowing the material to remain closely wrapped around compatible chocolate shapes.
This characteristic is particularly useful for individual pralines, truffles, chocolate coins, bars, eggs and molded novelty chocolates.
Continuous aluminum foil provides strong resistance to light, moisture, gases and external odors when the metallic layer remains intact.
Final package performance still depends on foil gauge, pinholes, printing, lamination, folds, seals and mechanical damage during wrapping.
Soft printed or embossed foil can conform around round and irregular truffle shapes while providing a decorative metallic finish inside premium gift boxes.

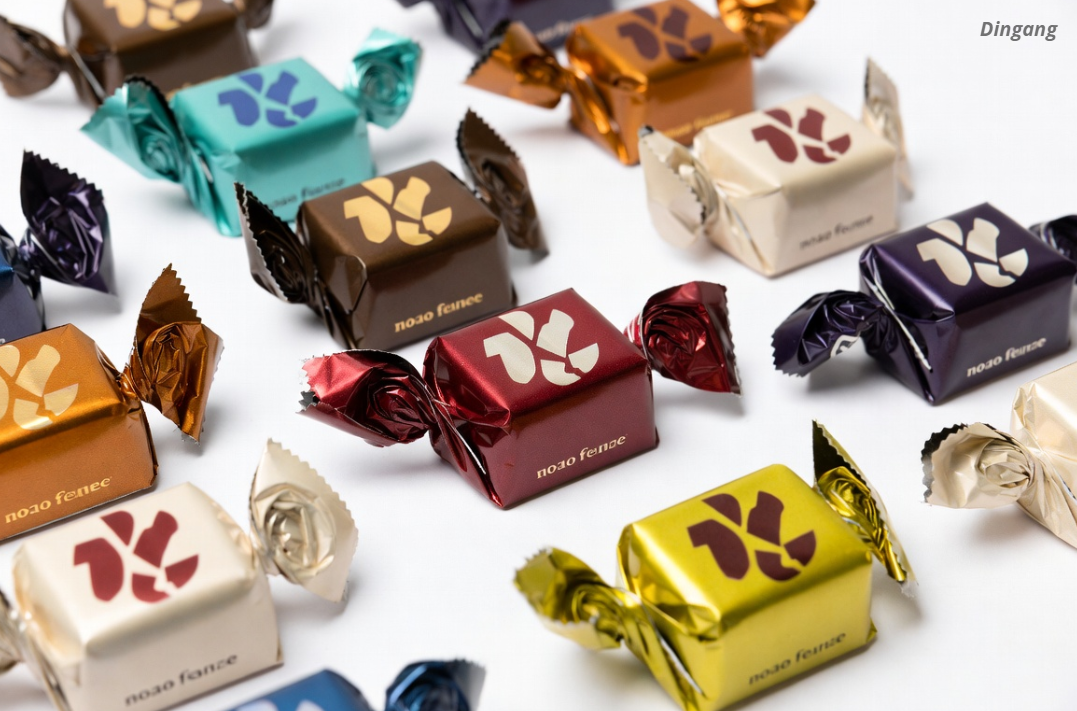

Individual praline wrappers can use custom colors, patterns or logos to differentiate flavors, collections or brand tiers within an assorted chocolate box.
Printed foil or foil/paper laminates can be used as suitable inner wrappers for premium chocolate bars where dead-fold, barrier and decorative appearance are required.
Printed and embossed aluminum foil is suitable for compatible chocolate coin wrapping where close forming and metallic visual impact are important.
Soft foil can follow curved and three-dimensional surfaces, making it useful for seasonal eggs, holiday figures and novelty chocolates.
Christmas, Valentine's Day, weddings, corporate gifts and limited-edition collections can use project-specific colors, artwork and embossing patterns.
Different foil colors or printed designs can identify individual flavors while maintaining a coordinated appearance across the complete gift-box collection.
Supply Format | Best Suited For | Key Purchasing Information |

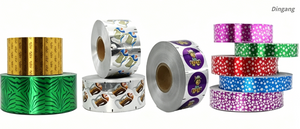

Printed Roll | Automatic or semi-automatic converting and wrapping lines | Reel width, core ID, OD, roll weight, repeat, eye mark and winding direction |
Slit Roll | Machine-ready individual wrapper widths | Precision width, edge quality, winding and splice requirements |
Pre-Cut Sheet | Hand-wrapped truffles, pralines, chocolate coins and boutique gift products | Sheet width, length, squareness, stack quantity and pattern orientation |
Embossed Sheet | Premium gift chocolates and decorative individual wrapping | Embossing texture, depth, sheet size and printed-pattern alignment |
Request Rolls or Pre-Cut Sheets
Unsupported soft foil offers a strong metallic appearance and excellent dead-fold characteristics for products where the aluminum itself forms the main wrapper.
Because there is no reinforcing paper or film layer, foil gauge, pinhole control and handling are particularly important.

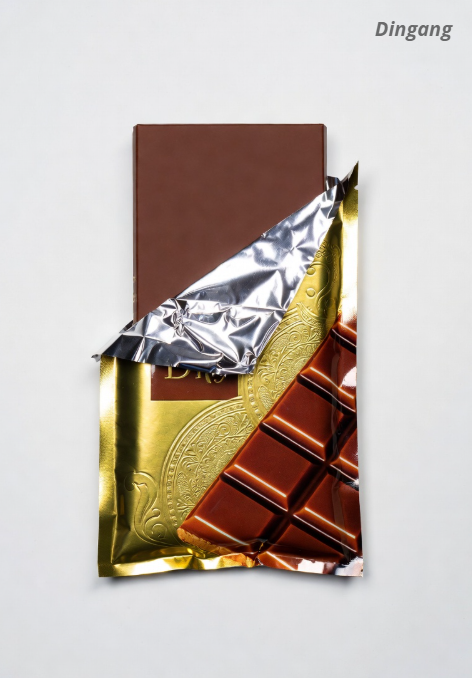

Paper-backed foil can provide additional stiffness, tensile strength and handling stability while retaining aluminum's metallic appearance and dead-fold contribution.
This structure can be useful for bars, flatter chocolates and gift products requiring a more substantial wrapper feel.
A compatible polymer film can add mechanical strength, sealing characteristics or specific surface behavior where required by the packaging design.
The exact structure should be selected according to the chocolate shape, wrapping method, packaging machine and intended food-contact surface.
The current production specification supports decorative printing of up to 10 colors according to artwork, registration requirements and commercial production feasibility.
Pantone, physical color references or approved printed proofs can be used to establish brand-specific colors.
Gold, silver and other metallic appearances can be created by combining the natural aluminum surface with compatible colored or transparent coatings.
Opaque ink layers can create stronger blocks of brand color where less metallic show-through is desired.
Suitable transparent inks can allow the underlying metallic aluminum surface to influence the final decorative appearance.
Christmas, wedding, Valentine's Day, corporate gift and other limited-edition artwork can be produced according to approved files and order requirements.
Embossing can create tactile and visual differentiation for premium chocolate wrappers without changing the fundamental metallic character of aluminum foil.
Fine patterns can create a more refined surface while remaining suitable for compatible printing and folding processes.
Geometric embossing can be used to create consistent visual texture across individual gift chocolates.
Custom logo embossing can be discussed according to tooling, foil gauge, pattern repeat and production quantity.
Where embossed features must align with printed graphics, the acceptable registration tolerance should be defined before tooling and mass production.
Foil Gauge | Selection Considerations |
6–8μm | Very thin converter foil, generally more appropriate where other laminate layers provide additional mechanical support |
9–12μm | Common thin wrapper range for suitable printed, laminated and decorative chocolate structures |
13–18μm | Increased foil body for individual wrapping, gift chocolates and selected unsupported foil applications |
19–25μm | Heavier decorative foil for more robust manual wrapping, embossing and selected specialty products |
Final foil gauge should be selected according to chocolate shape, wrapper format, embossing, forming severity, machine process and desired tactile feel.
Dead-fold describes aluminum foil's ability to retain a fold or formed shape after wrapping.
This makes soft aluminum especially useful for irregular or three-dimensional chocolates that need the wrapper to stay close to the product rather than spring open.
Soft foil can be folded underneath or around individual pieces while retaining the decorative form inside a presentation box.
The foil can conform around the edge and faces of a round chocolate coin and retain its shape after forming.
For hearts, stars, eggs and other molded shapes, dead-fold performance helps the wrapper follow complex surfaces.
Chocolate can be affected by light, moisture, oxygen and external odors. An intact aluminum layer provides strong resistance to these influences.
However, barrier performance should be evaluated on the actual commercial wrapper rather than assuming that every thin printed foil remains perfectly impermeable after printing, embossing, folding and handling.
Thin foil can contain microscopic pinholes from rolling or subsequent converting. Where barrier performance is critical, allowable pinhole count and maximum size should be specified.
Sharp creases and repeated flexing can affect foil continuity. Representative wrapped samples should therefore be evaluated when the chocolate geometry creates severe folds.
Chocolate contains cocoa butter and other fats, so the food-contact lacquer, paper, adhesive or other inner layer should be compatible with the actual product and intended storage conditions.
Premium gift foil can include several coating layers rather than only ink applied directly to aluminum.
Layer | Typical Function |
8011-O Aluminum Foil | Metallic substrate, barrier contribution and dead-fold performance |
Primer | Promotes adhesion of compatible printing inks or coating systems |
Decorative Ink | Provides artwork, brand colors, product identification and seasonal graphics |
Overprint Lacquer | Can improve resistance to abrasion during converting and handling |
Food-Side Lacquer | Can provide a defined food-contact surface where required by the wrapper construction |
Paper / Film Layer | Optional reinforcement, tactile effect, sealing or mechanical function |
The current product data references surface wettability of 38 dynes/cm or higher before printing or coating.
Surface energy supports wetting of compatible inks and primers, but it should not be treated as a guarantee that printed graphics will never peel or scuff.
Residual rolling oil should be controlled before printing because excessive contamination can interfere with ink or primer adhesion.
Printed foil can be evaluated using an agreed tape, rub or other adhesion test after curing.
Gift chocolates can rub against trays, dividers and adjacent wrapped pieces during transportation. A compatible overprint lacquer can be considered where graphic abrasion is a concern.
Request Printing & Embossing Samples
Provide vector artwork, Pantone references, required text and any metallic or transparent print areas before proof preparation.
For roll-fed wrappers, repeat length should match the converting or wrapping-machine cut length.
Photoelectric eye marks can be incorporated where automatic equipment uses printed registration control.
A physical printed proof or production sample is recommended for premium gift packaging because the metallic aluminum background can change the perceived appearance of ink colors.
Boutique chocolatiers and premium gift producers can use pre-cut foil sheets for hand wrapping truffles, pralines, coins and seasonal chocolates.
Sheet dimensions, squareness, embossing direction and packing quantity should be specified according to the chocolate dimensions and wrapping method.
Automatic lines require closer control of reel width, core ID, roll OD, winding direction, coefficient of friction, curl, print repeat and edge quality.
Slit rolls or pre-cut sheets can be selected depending on whether cutting, feeding and final folding are performed manually or by equipment.
Roll Parameter | Information to Provide |
Wrapping Machine | Manufacturer and model where available |
Finished Reel Width | Exact feed width required by the machine |
Core ID | Current reference 76mm or customer-specific requirement |
Maximum Roll OD | Provide machine unwind limit |
Roll Weight | Provide target and maximum value |
Print Repeat | Match package cut length |
Eye Mark | Provide required dimensions, color and position |
Winding Direction | Specify printed-side orientation and unwind direction |
Coefficient of Friction | Specify where machine feeding requires a defined range |
Splices | Define maximum allowable quantity and identification method |
Edge Quality | Define allowable nicks, tears and slit-edge defects |
Printed chocolate foil should be specified as a complete packaging construction rather than treating the 8011-O alloy designation alone as proof of food-contact suitability.
Where printing is applied to the non-food-contact side, the ink and converting process should control transfer through the material and set-off from the printed surface during reel or stack storage.
A printed surface should not be assumed suitable for direct chocolate contact unless the exact ink and coating system has been specifically assessed and documented for that intended use.
Where a lacquered surface contacts chocolate directly, the exact lacquer and intended contact conditions should be included in the food-contact assessment.
Where migration testing is required, testing should correspond to the final printed or laminated construction, chocolate type, storage conditions and destination market.
For EU, U.S., Saudi Arabia, GCC or other markets, required declarations and test documents should be identified before production for the exact wrapper construction.
Aluminum is rolled to the required gauge and processed to the specified soft temper for flexible chocolate wrapping.
Foil thickness is monitored according to the approved production specification. The current source references approximately ±3% thickness tolerance.
Rolling-oil residue and contamination are controlled before primer, printing or lacquer application.
A compatible primer can be applied where required to support decorative ink and lacquer adhesion.
Approved graphics are printed according to the specified colors, repeat length and registration requirements.
Compatible lacquer can be added according to scuff, food-contact and converting requirements.
The printed or unprinted foil can be embossed with an approved decorative texture where required.
Paper or compatible film can be laminated to the aluminum where the final wrapper requires additional mechanical or functional properties.
Material can be converted into machine-ready reels or pre-cut sheets according to the required chocolate wrapping format.
Inspection Item | Recommended Control |
Alloy & Temper | Verify AA8011-O or approved specification |
Foil Thickness | Measure nominal gauge and agreed tolerance |
Pinhole Level | Specify count and maximum size where barrier-critical |
Surface Cleanliness | Inspect oil residue, stains and contamination |
Surface Wettability | Verify before printing where specified |
Print Color | Compare with approved physical proof or color standard |
Print Registration | Measure against artwork tolerance |
Print Repeat | Confirm against reel and wrapper dimensions |
Ink Adhesion | Evaluate with agreed tape, rub or other method |
Scuff Resistance | Evaluate where printed wrappers contact trays or adjacent chocolates |
Embossing | Compare texture, depth and pattern against approved reference |
Sheet Size | Check width, length and squareness for pre-cut wrappers |
Reel Width | Verify against machine-feed requirement |
Edge Quality | Inspect nicks, tears and slit defects |
Roll Winding | Check telescoping, edge alignment and winding stability |
Food-Contact Documentation | Verify exact primer, ink, lacquer, adhesive and food-side construction required by the project |
A physical sample is recommended before mass production whenever a new foil gauge, print design, metallic color, embossing texture or wrapper structure is introduced.
For premium gift packaging, approval should include the foil under actual lighting conditions because metallic backgrounds and gloss can change the perceived color of printed graphics.
Representative foil should also be wrapped around the actual truffle, praline, bar or molded chocolate to check fold appearance, graphic position, scuffing and wrapper conformity.
For automatic production, the same sample should be tested on the intended packaging machine to confirm feeding, registration, cutting and winding behavior.
Request Gift Packaging Samples
For an accurate quotation, please provide the chocolate type, individual piece dimensions, gift-box configuration and wrapping method.
Specify whether you require unsupported aluminum foil, foil/paper laminate, foil/film laminate, roll material or pre-cut sheets.
Provide the required foil thickness, reel or sheet dimensions, core ID, maximum roll OD and purchasing quantity.
For printed wrappers, provide artwork, Pantone references, number of colors, print repeat, eye-mark requirements, embossing pattern and any transparent or metallic-effect areas.
For direct or indirect food-contact applications, provide the intended food-contact side, chocolate composition, storage conditions, destination market and required documentation.
Send Your Chocolate Wrapper Specification
They are aluminum foil wrappers printed or decorated for individual chocolates, truffles, pralines, bars, coins and other confectionery gift products.
The current product uses AA8011 in soft O temper.
The current product range is approximately 6–25μm.
O temper provides a soft and formable condition that allows aluminum foil to fold closely around compatible chocolate products.
Dead-fold describes aluminum foil's ability to retain a folded or formed shape with limited spring-back.
Yes. Soft printed or embossed foil can be supplied for compatible hand-wrapped or machine-wrapped truffles and pralines.
Pre-cut sheets can be discussed according to required width, length, foil gauge, artwork and production quantity.
Yes. Machine-ready printed or slit rolls can be supplied according to reel width, core ID, roll OD, winding direction and production requirements.
Foil/paper laminate structures can be discussed where additional stiffness, tear strength or wrapper machinability is required.
The current production information supports up to 10-color rotogravure printing according to the approved artwork.
Yes. Metallic gold, silver and other custom decorative effects can be discussed according to the selected ink and coating system.
Yes. Logos, text, decorative artwork and seasonal graphics can be printed according to approved artwork and production feasibility.
Yes. Decorative embossing can be discussed for premium chocolate, praline and gift packaging applications.
Custom embossing can be evaluated according to tooling design, foil gauge, pattern repeat and order volume.
No. Surface energy helps ink wetting, but final adhesion also depends on foil cleanliness, primer chemistry, ink formulation, curing and protective lacquer.
An intact aluminum layer provides very high barrier performance, but thin foil can contain pinholes or develop damage during converting, embossing, folding and handling. Final performance should be verified on the commercial wrapper.
Pinholes interrupt the continuity of the metallic barrier. Where barrier performance is critical, allowable pinhole count and size should be included in the purchasing specification.
The printed surface should not automatically be treated as a direct food-contact surface. The exact inks and coatings must be designed, assessed and documented for the intended contact condition.
A compatible food-side lacquer can be discussed where the chocolate wrapper construction requires a defined contact surface.
Compliance should be confirmed for the exact commercial wrapper construction, including foil, primer, ink, lacquer, adhesive, food-contact side and intended conditions of use. Alloy designation alone is not sufficient.
Applicable testing and documentation can be discussed according to the exact printed or laminated wrapper, chocolate product, contact conditions and destination market.
A compatible overprint lacquer can improve resistance to abrasion, but the final result should be verified using the actual ink system and packaging process.
Machine-ready rolls can be developed for automatic production, but compatibility should be confirmed using the actual reel dimensions, foil structure, coefficient of friction, print repeat and machine settings.
Provide machine model, wrapper style, reel width, core ID, maximum roll OD, print repeat, eye mark, winding direction and target production speed.
Yes. Printed and embossed sample approval is recommended before mass production, particularly for premium gift chocolates and seasonal packaging.
Please provide chocolate type and dimensions, foil gauge, roll or sheet format, artwork, colors, printing, embossing, food-contact construction, destination market and order quantity.
If you manufacture premium chocolates, truffles, pralines, seasonal gift boxes or branded confectionery, send us your artwork, wrapper dimensions and packaging requirements.
We can discuss AA8011-O foil from 6–25μm, up to 10-color printing, metallic colors, embossing, foil/paper laminates, rolls and pre-cut sheets for premium chocolate gift packaging.
Products
Application
Quick links
Contact Us
