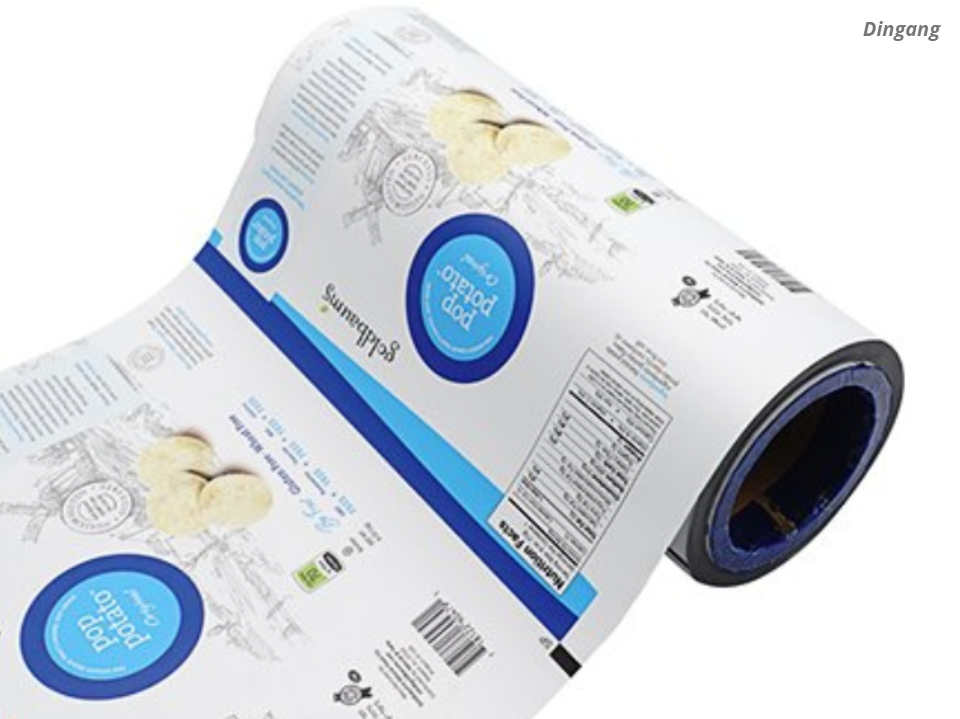

Printed Foil for High-Barrier Flexible Packaging

AA8011-O printed foil combines custom graphics with high-barrier aluminum for PET/AL/PE, PET/AL/CPP and reinforced flexible packaging used for coffee, foods, powders and sensitive products.

  • Aluminum Alloy 8011

  • Dingang

Aluminum Alloy:
Aluminum Foil Thickness:
Color Options::
ID:
Availability:
Quantity:

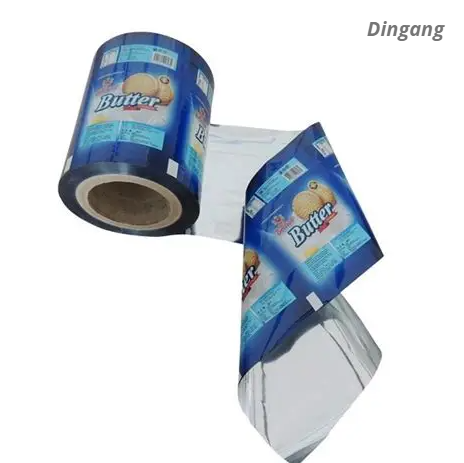

Printed Aluminum Foil for High-Barrier Flexible Packaging

Printed aluminum foil for high-barrier flexible packaging combines a printable aluminum barrier layer with application-specific polymer films, adhesives and heat-seal layers for food, beverages, coffee, tea, powders, snacks, nutritional products, selected healthcare products and other moisture- or oxygen-sensitive goods.

AA8011-O aluminum foil can be used as the flexible metallic barrier layer in structures such as PET/AL/PE, PET/AL/CPP and PET/PA/AL/PE. The outer PET or PA layer supports printing and mechanical protection, aluminum provides strong light and gas barrier performance, and PE or CPP provides product contact and heat sealing.

Custom rotogravure or flexographic printing can incorporate logos, product information, nutrition data, barcodes, QR codes and multi-color retail graphics. Reverse printing can also place the ink inside the laminate for improved resistance to external rubbing and handling.

Barrier and package performance should be specified for the complete laminate. OTR, WVTR, puncture resistance, seal strength, hot tack, flex durability and package integrity depend on the full material structure and converting conditions rather than the aluminum alloy alone.

Request a Quotation

Technical Specifications

Parameter

Available / Typical Direction

Purchasing Guidance

Product

Printed Aluminum Foil / Printed Foil Laminate

For high-barrier flexible packaging and converting

Primary Foil Alloy

AA8011 or Application-Specific Foil

Select according to gauge, converting and end-use requirements

Typical Temper

O Temper

Soft condition suitable for flexible lamination and converting

Aluminum Foil Thickness

Project-Specific

Define according to barrier, pinhole, flex and package requirements

Typical Structure

PET / AL / PE

General high-barrier printed flexible packaging

CPP Structure

PET / AL / CPP

For suitable applications requiring PP-based sealant performance

Heavy-Duty Structure

PET / PA / AL / PE

Adds nylon for higher puncture and flex resistance

Retort Direction

PET / AL / PA / RCPP or Qualified Equivalent

All layers must be qualified for the actual sterilization cycle

Outer Film

PET / PA / BOPP / Custom Film

Provides print support, stiffness and mechanical protection

Sealant Layer

PE / CPP / PP / RCPP / Specialty Sealant

Must match product contact, sealing and thermal conditions

Printing

Rotogravure / Flexographic / Custom Multi-Color

Artwork, color, repeat and registration are project-specific

Printing Configuration

Surface Print / Reverse Print

Reverse print can protect graphics inside a transparent outer film

Surface Energy

Current Target: 38+ dynes/cm Where Specified

Indicates surface wetting; does not replace ink or bond testing

OTR

Finished-Laminate Specification

Specify test method and environmental conditions

WVTR

Finished-Laminate Specification

Specify temperature, RH and test method

Lamination Bond Strength

Structure-Specific

Evaluate after required adhesive curing and conditioning

Heat-Seal Strength

Package-Specific

ASTM F88/F88M can be specified where appropriate

Hot Tack

Application-Specific

Important where newly formed seals carry load before cooling

Puncture Resistance

Laminate-Specific

Important for sharp, heavy or irregular products

Machine Compatibility

VFFS / HFFS / Flow Wrap / Pouch Making

Confirm width, core, OD, friction, repeat and seal window

Food-Contact Documentation

Application- and Destination-Specific

Review all relevant films, inks, adhesives, coatings and sealants

A printed foil laminate should be ordered as a complete material structure. Aluminum gauge, total thickness, outer film, adhesive, seal layer, printing, barrier targets and packaging-machine requirements should all be defined before commercial production.

Send Your Flexible Packaging Specification

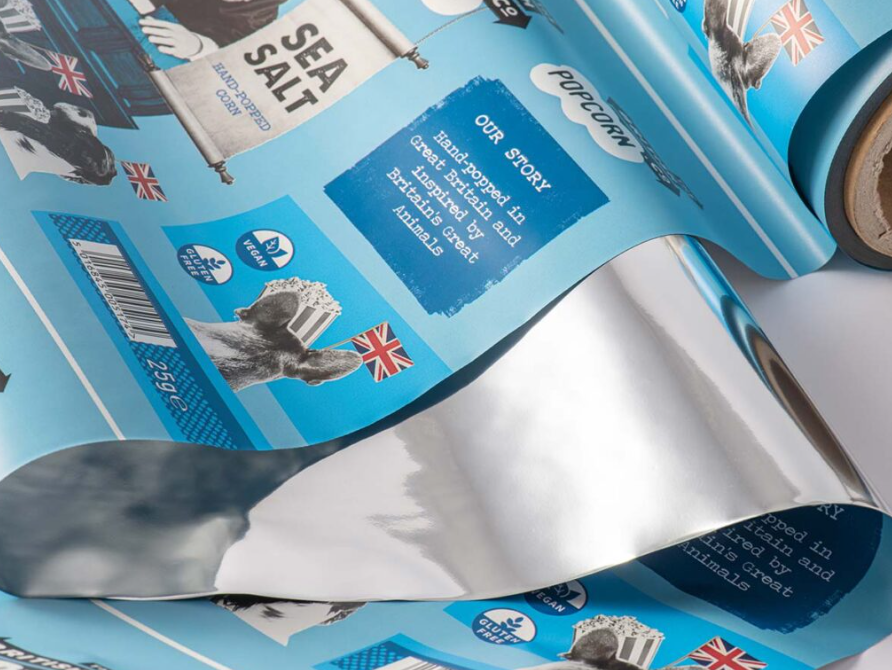

How the Laminate Layers Work Together

PET Outer Layer

PET can provide dimensional stability, heat resistance, print support, abrasion resistance and protection for the layers beneath it.

Where reverse printing is used, the ink can be trapped between PET and the next layer, helping protect graphics during transportation and retail handling.

Aluminum Foil Barrier Layer

Continuous intact aluminum foil is opaque and provides an extremely strong barrier to oxygen, moisture, aroma and light transmission through the metallic layer.

Very thin foil can still be affected by pinholes, folding and flex cracking, so finished-laminate performance should be verified where barrier requirements are critical.

PA / Nylon Reinforcement

PA nylon can improve puncture resistance, toughness and flex durability for packages that experience heavier mechanical loads or repeated deformation.

PE or CPP Seal Layer

PE, CPP and other suitable sealants provide the thermoplastic sealing surface that converts printed rollstock into a closed pouch or sachet.

The sealant must be selected for the packaged product, mating surface, filling temperature and sealing process.

Printed Foil vs Metallized Film

Solid aluminum foil and metallized polymer film are different barrier technologies.

Feature

Solid Aluminum Foil

Metallized Film

Metal Layer

Continuous aluminum foil

Very thin deposited metal layer

Light Barrier

Complete opacity when intact

Depends on metallization density and film construction

Barrier Level

Very high where foil remains intact

Can range from moderate to high depending on technology

Flex Resistance

Can develop flex cracks under severe repeated deformation

Certain structures can tolerate repeated flexing better

Typical Selection

Maximum-barrier or light-sensitive products

Where lower weight, flexibility or other design priorities apply

Oxygen Barrier and OTR

Oxygen-sensitive products such as coffee, tea, nuts, spices, dairy powders and nutritional ingredients can benefit from low oxygen transmission.

OTR should be measured on the exact finished laminate when a numerical requirement is contractual. ASTM D3985 can be specified for suitable flexible materials.

A universal value such as 0.1 cm³/m²·day should not be assigned to every printed aluminum laminate because foil gauge, pinholes, flex damage and converting conditions can change the final result.

Moisture Barrier and WVTR

Moisture-sensitive foods, powders, coffee, tea, pharmaceutical-style sachets and other dry products often require a low water-vapor transmission rate.

ASTM F1249 can be used for suitable flexible barrier structures where this method is specified.

Numerical WVTR values should include the test temperature and relative-humidity conditions. Results obtained under different conditions should not be compared without considering the test environment.

Flex Cracking and Barrier Retention

Solid aluminum foil provides excellent initial barrier performance but has less stretch than many polymer films.

Repeated folding, gusset formation or aggressive flexing can create cracks in very thin foil and reduce the finished barrier.

Gusseted Pouches

Stand-up pouch bottoms and side gussets experience concentrated deformation. Barrier-sensitive products should use structures validated for the actual pouch geometry.

PA Reinforcement

Adding nylon can improve the mechanical toughness of heavy-duty laminates, although the finished structure should still be tested for barrier retention after representative flexing.

Heat-Seal Performance

Aluminum provides the barrier layer, but the actual package seal is normally created by PE, CPP, PP, RCPP or another thermoplastic sealant.

Seal Strength

ASTM F88/F88M can be used where appropriate to measure the force required to separate seals in flexible barrier materials.

Hot Tack

High-speed packaging lines can place load on the seal before it has cooled completely. Hot-tack performance can therefore be important for vertical and horizontal form-fill-seal applications.

Seal Window

Production trials should establish a practical operating window covering sealing temperature, pressure and dwell time instead of relying on a single laboratory setting.

Lamination Bond Strength

Strong interlayer adhesion is required to maintain laminate integrity during printing, pouch making, filling and distribution.

Surface energy such as a 38+ dynes/cm target can indicate whether an adhesive or ink is likely to wet the foil surface, but it does not directly measure finished laminate bond strength.

Surface Cleanliness

Rolling oil, dust or contamination can interfere with ink and adhesive performance even when the measured surface energy appears acceptable.

Adhesive Cure

Reactive laminating adhesives require appropriate curing before demanding conversion, filling or thermal processing.

Direct Bond Testing

Interlayer adhesion should be evaluated on the actual cured laminate. ASTM F904 can be specified where appropriate for separation of laminate plies for bond-strength evaluation.

Printing Performance

Custom printing can include logos, brand colors, ingredients, nutrition panels, instructions, barcodes, QR codes and regulatory information according to approved artwork.

Rotogravure Printing

Rotogravure is suitable for high-volume flexible packaging requiring repeat graphics, solid colors and controlled registration.

Flexographic Printing

Flexographic printing can also be used for compatible structures and artwork where the production configuration supports the required print quality.

Ink Adhesion

Finished ink adhesion should be checked on representative production material after curing. Tape adhesion methods such as ASTM F2252/F2252M can be specified where appropriate.

Brand Color Control

Critical colors should be approved against a printed production proof or master sample, with an agreed measurement method and color tolerance where required.

High-Speed Packaging Compatibility

High-speed converting depends on the complete laminate structure rather than the aluminum foil alone.

Roll Width and Slitting

Width, slit tolerance and edge condition should be matched to the packaging equipment and pouch format.

Core ID and Reel OD

Core diameter, maximum reel outside diameter and roll weight should match the machine unwinder.

Coefficient of Friction

Surface friction can affect web tracking, forming and feeding. A coefficient-of-friction specification can be agreed where required.

Printed rollstock should match the packaging machine's repeat length, photocell registration, cutting position and unwind direction.

Coffee and Tea Packaging

Coffee and tea can be sensitive to oxygen, moisture, aroma loss and external odors. Printed aluminum foil laminates can provide strong environmental barrier performance for suitable pouches, sachets and rollstock.

Freshly roasted coffee can continue releasing carbon dioxide, so whole-bean and ground-coffee packaging may require a one-way degassing valve in addition to the high-barrier laminate.

Snack and Dried-Food Packaging

Nuts, spices, dried foods, confectionery and selected snacks can use aluminum-containing laminates where moisture, oxygen, aroma or light protection is required.

Products with sharp edges or hard particles can require additional puncture resistance, such as a PA layer or increased total laminate thickness.

Powder and Nutritional Packaging

Milk powders, beverage powders, protein powders, nutritional mixes and other hygroscopic products can benefit from strong moisture and oxygen barrier packaging.

Fine powders can enter the heat-seal area during filling, so package validation should include realistic seal contamination where this is a production risk.

Dairy and Lidding Applications

Aluminum can be used in dairy and container-lidding systems, but lidding foil and flexible laminate rollstock should not automatically be treated as identical products.

Lidding applications require the sealing layer or heat-seal lacquer to match the specific cup or tray material, such as PP, PS, PET or another agreed substrate.

Peelable Lids

Easy-peel performance depends on the container surface, sealant chemistry, temperature, pressure and dwell time and should be evaluated on the actual container.

Permanent Seals

Applications requiring a permanent seal use a different sealing-performance target from easy-peel packages.

Retort Packaging Requires a Dedicated Structure

A standard printed PET/AL/PE laminate should not automatically be described as retortable.

Retort packaging requires films, printing inks, adhesives and sealants specifically selected to survive the intended high-temperature process.

Retort-Grade Sealant

RCPP or another qualified retort sealant can be used in purpose-designed structures where appropriate.

Retort Adhesive

The laminating adhesive must retain adequate bond performance after the specified temperature and dwell cycle.

Post-Process Validation

Finished retort packs should be evaluated after processing for seal integrity, delamination, barrier retention, flex cracking and appearance.

Pharmaceutical and Healthcare Packaging

Printed aluminum laminates can be used in selected healthcare sachets, diagnostic packaging, powder packs and other qualified high-barrier formats.

Pharmaceutical flexible laminates require application-specific material qualification and documentation. A general AA8011-O printed laminate should not automatically be substituted for PTP blister foil or cold-form pharmaceutical laminate.

PTP Blister Foil

Conventional push-through blister lidding commonly uses purpose-designed hard-temper pharmaceutical foil with primer and heat-seal coating.

Cold-Form Packaging

Cold-form pharmaceutical laminate is a dedicated forming structure and should not be treated as equivalent to standard printed PET/AL/PE flexible packaging.

Food-Contact and Printing Requirements

Food-contact suitability should be evaluated for the entire finished laminate rather than from the aluminum alloy designation alone.

European Union

Printed food-contact packaging for the European market should be evaluated against the applicable food-contact framework and good manufacturing practice requirements.

Printing inks applied to the non-food-contact side should be formulated and processed so that substances do not transfer through the material or by set-off to the food-contact side at unacceptable levels.

Conventional printed surfaces should not directly contact food unless the printing system has been specifically evaluated for that use.

United States

U.S. food-contact suitability depends on the actual films, inks, adhesives, coatings and sealants together with the intended food and conditions of use.

Destination-Market Documentation

Projects requiring SFDA, SASO or other market-specific documentation should identify the destination country, package structure and intended use before commercial production.

Manufacturing and Quality Control

Foil Gauge

Aluminum foil thickness should be measured independently of polymer films, adhesive and coatings.

Total Laminate Thickness

Total structure thickness affects stiffness, sealing, pouch feel and high-speed machine performance.

Pinhole Control

Barrier-critical foil can include agreed pinhole inspection criteria, particularly where thinner aluminum gauges are used.

Surface Energy

Surface wetting can be monitored before printing, coating or adhesive lamination where required.

Ink Adhesion

Ink adhesion should be evaluated after curing on the actual printed substrate.

Color and Registration

Production should be checked against approved artwork, master colors and print-registration requirements.

Lamination Bond

Interlayer bond strength should be evaluated after the specified curing period and any required thermal conditioning.

Seal Strength

Finished heat seals should be tested under representative production conditions.

Hot Tack

Hot-seal strength can be evaluated where newly formed seals carry product load before complete cooling.

WVTR and OTR

Barrier values should be measured on the exact finished laminate where numerical performance limits are contractual.

Puncture Resistance

Puncture testing should be considered for products with sharp edges, high fill weight or demanding transport conditions.

Flex Resistance

Barrier-sensitive packages can be evaluated after representative flexing to determine whether folding or gusset formation reduces barrier integrity.

Roll Winding Quality

Finished reels should be checked for wrinkles, telescoping, edge damage, loose winding and other defects that can interfere with automated packaging machinery.

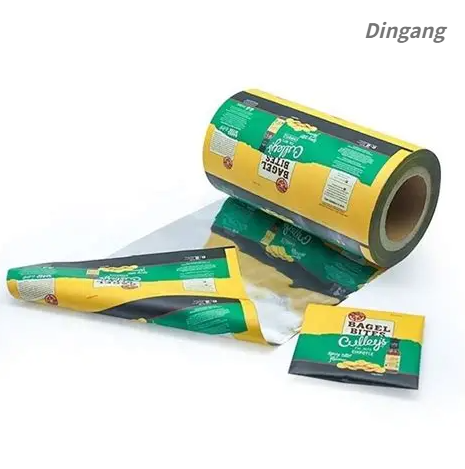

printed foil for high-barrier flexible packaging production

Factory and Warehouse

Printed and laminated aluminum foil should be stored in clean, dry conditions and protected from direct sunlight, excessive humidity, contamination and physical damage before converting.

Dingang printed aluminum foil warehouse

Information Required for a Quotation

For accurate material selection and pricing, please provide:

  • Final packaged product

  • Food, beverage, nutritional, healthcare or industrial application

  • Required laminate structure

  • Required aluminum foil thickness

  • Outer-film type and thickness

  • PA/nylon layer if required

  • Required sealant layer

  • Total laminate thickness

  • Required OTR and test conditions

  • Required WVTR and test conditions

  • Required seal strength

  • Hot-tack requirement if applicable

  • Puncture or flex-resistance requirement

  • Cold-fill, hot-fill, pasteurization or retort process

  • Artwork and printing colors

  • Color reference or approved sample

  • Print repeat length

  • Eye-mark and registration requirement

  • VFFS, HFFS, flow-wrap or pouch-making equipment

  • Required roll width

  • Core ID, reel OD and maximum reel weight

  • Unwind direction

  • Food-contact or other compliance requirements

  • Required test reports

  • Destination market

  • Order quantity

Get a Custom Printed Foil Proposal

Frequently Asked Questions

What is printed foil for high-barrier flexible packaging?

It is printed aluminum foil used alone or within a multilayer flexible laminate to provide branding together with strong oxygen, moisture, aroma and light barrier performance.

Why is AA8011-O used?

AA8011-O is a soft packaging foil suitable for flexible lamination and converting. Final mechanical and barrier performance depends on the complete package structure.

Is AA8011-O a high-strength temper?

No. O temper is a soft annealed condition selected for flexibility rather than maximum tensile strength.

What is PET/AL/PE?

PET/AL/PE combines PET for printing and outer protection, aluminum for high barrier and PE for product contact and heat sealing.

Why add PA nylon?

PA nylon can increase puncture resistance, toughness and flex durability for mechanically demanding packages.

Does aluminum foil provide a complete oxygen barrier?

Intact solid aluminum foil provides an extremely strong oxygen barrier, but finished-package performance can be affected by pinholes, flex cracks, folds and seals.

Is OTR below 0.1 cm³/m²/day guaranteed?

No universal value should be assigned to every structure. OTR should be tested on the exact finished laminate under defined conditions.

Is WVTR below 0.1 g/m²/day guaranteed?

No. WVTR depends on the finished structure and test conditions and should be verified when a numerical target is required.

How can WVTR be tested?

ASTM F1249 is one recognized method for suitable flexible barrier materials where specified.

How can OTR be tested?

ASTM D3985 is one recognized method for oxygen-transmission testing of suitable films and laminates.

Does 38+ dynes guarantee strong ink adhesion?

No. Surface energy supports ink wetting, but final adhesion also depends on cleanliness, primer, ink chemistry and curing.

Does 38+ dynes guarantee strong lamination?

No. Lamination bond also depends on adhesive chemistry, coating weight, curing and application conditions.

Can the foil be custom printed?

Yes. Logos, colors, graphics, ingredients, barcodes, QR codes and product information can be printed according to approved artwork.

What is reverse printing?

Reverse printing places the ink on the inner surface of a transparent outer film before lamination, helping protect the printed graphics from abrasion.

Can printed aluminum laminate run on VFFS equipment?

Yes, when roll dimensions, stiffness, friction, print repeat and sealant properties are compatible with the intended machine.

Can it be used for coffee packaging?

Yes. Aluminum-containing laminates can provide strong oxygen, moisture, aroma and light protection for coffee. Freshly roasted coffee may also require a one-way degassing valve.

Can it be used for snacks and dried foods?

Yes, where the required moisture, oxygen, light and mechanical protection matches the selected laminate structure.

Can it be used for dairy lidding?

Aluminum can be used for suitable dairy lidding, but the heat-seal layer must match the actual cup or tray material and required peel behavior.

Is standard PET/AL/PE suitable for retort?

It should not automatically be described as retortable. Retort packaging requires dedicated heat-resistant films, adhesive, ink and sealant systems.

Can printed foil be used in pharmaceutical packaging?

It can be used in selected qualified healthcare and pharmaceutical-style flexible packs, but pharmaceutical packaging requires application-specific documentation and validation.

Is this the same as pharmaceutical PTP foil?

No. Conventional PTP blister foil is a dedicated pharmaceutical lidding material with different temper, coating and performance requirements.

Is printed foil automatically FDA compliant?

No universal claim should be made. Food-contact suitability depends on the complete supplied structure and its intended conditions of use.

Can printing directly contact food?

Conventional packaging printing is normally kept on the non-food-contact side. Direct-contact printing requires a specifically evaluated compliant system.

What information is required for a quotation?

Please provide the packaged product, laminate structure, foil gauge, total thickness, sealant, OTR/WVTR targets, printing artwork, package format, machine type, roll dimensions, compliance requirements, quantity and destination.

Should samples be tested before mass production?

Yes. New printed laminate structures should be evaluated for printing, bond strength, sealing, machine compatibility, barrier and finished-package performance before commercial production.

Contact Dingang for Samples and Pricing

Previous:
Next:

Product Category

Related Products

Consult Us To Get Your Customized Aluminum Solution

We help you specify and source the coated aluminum you need, on time and within budget.

Products

Application

Quick links

Follow Us

Contact Us

    joey@cnchangsong.com
    +86-18602595888
   Building 2, Zhixing Business Plaza, No.25 North Street, Zhonglou District, Changzhou City, Jiangsu Province, China
    Chaoyang road, Konggang economic development area, Lianshui, Huai'an city, Jiangsu,China
© COPYRIGHT 2026 CHANGZHOU DINGANG METAL MATERIAL CO., LTD. ALL RIGHTS RESERVED.
