Retort aluminum composite pouch material is a multilayer flexible packaging laminate designed for thermally processed shelf-stable foods such as ready meals, meat, seafood, sauces, wet pet food and selected nutritional products.
Typical structures combine PET, aluminum foil, PA or Nylon, and CPP, RCPP or PP sealant layers. Each layer performs a specific function: PET supports printing and dimensional stability, aluminum foil provides the principal light and gas barrier, PA can improve puncture and flex resistance, and CPP or RCPP provides the food-contact heat-seal layer.
The published product range includes aluminum foil thicknesses from 7μm to 25μm, total laminate thicknesses from 70μm to 180μm, widths from 100mm to 1800mm and structures designed around 121°C, 125°C or customized 135°C retort requirements. The complete laminate must be selected and validated for the actual food product, pouch format and thermal process.
Request a Retort Laminate Quotation
| Item | Published / Available Specification | Purchasing Consideration |
|---|---|---|
| Product Type | Retort aluminum composite pouch laminate | For thermally processed shelf-stable food packaging |
| Typical Structures | PET/AL/CPP, PET/AL/PA/CPP, PET/AL/RCPP, PET/AL/PA/PP | Structure should match product, retort temperature, puncture risk and required shelf life |
| Aluminum Foil Thickness | 7μm–25μm | Final gauge should reflect barrier, flex-crack and forming requirements |
| Total Laminate Thickness | 70μm–180μm | Heavy fills, bones, shells or sharp contents may require reinforced construction |
| Published Retort Temperatures | 121°C / 125°C / customized 135°C | Exact structure must be qualified for the complete time-temperature-pressure cycle |
| Sealant Layer | CPP / RCPP / PP | Select a retort-grade sealant appropriate to processing temperature and food-contact requirements |
| Width Range | 100mm–1800mm | Custom slitting according to pouch converter and printing equipment |
| Roll Length | Customized | Confirm core ID, roll OD, roll weight and winding direction |
| Surface Finish | Glossy / Matte | Surface system must remain compatible with retort-safe printing and lamination |
| Printing | Up to 10-color gravure printing | Specify reverse print, ink system, curing and post-retort appearance requirements |
| Oxygen Barrier | High barrier aluminum-containing structure | Specify numerical OTR and test conditions where contract-critical |
| Moisture Barrier | High barrier aluminum-containing structure | Specify numerical WVTR and test conditions where required |
| Heat-Seal Strength | Structure-dependent | Define pre-retort and post-retort seal strength with the applicable test method |
| Interlayer Bond Strength | Structure-dependent | Retort-grade adhesive must retain sufficient bond after processing |
| Food-Contact Construction | Available according to customer and destination-market requirements | Verify sealant, adhesive, ink and other components for the intended food-contact use |
| Customization | OEM / ODM supported | Structure, roll dimensions, printing and performance targets can be reviewed by application |
A retortable pouch is a complete packaging system. Laminate construction, adhesive, inks, sealant layer, pouch geometry and converting process should all be qualified against the actual filling and sterilization cycle.
Get Retort Film Specifications & Samples
PET can provide dimensional stability, tensile strength, print support and external surface protection during pouch converting, retort processing and distribution.
The aluminum foil layer provides the principal opaque barrier against light and very high resistance to oxygen and water-vapor transmission when the foil remains intact.
Finished package barrier can still be affected by foil pinholes, flex cracking, aggressive forming, seal defects, edge damage and pouch handling.
PA can provide additional puncture, impact and flex resistance for meat, seafood, pet food and other products containing hard particles, shells, bones or irregular shapes.
CPP or retort-grade CPP provides the food-contact sealing layer. RCPP or another validated high-temperature PP sealant can be selected where higher processing temperatures or demanding post-retort seal performance are required.
The laminating adhesive must maintain sufficient interlayer bond strength after heat, moisture, pressure and cooling exposure. A general-purpose flexible-packaging adhesive should not automatically be assumed suitable for retort use.
| Structure | Primary Characteristics | Typical Application Direction |
|---|---|---|
| PET / AL / CPP | PET outer layer + aluminum barrier + CPP sealant | Sauces, soups, prepared foods and compatible standard retort applications |
| PET / AL / PA / CPP | Adds PA reinforcement for additional puncture and flex resistance | Meat, seafood, wet pet food and products with irregular or hard inclusions |
| PET / AL / RCPP | High-barrier structure with retort-oriented sealing layer | Ready meals and compatible higher-temperature thermal processing |
| PET / AL / PA / PP or RCPP | Reinforced multilayer construction with higher mechanical durability | Demanding retort products requiring enhanced puncture and seal performance |
| Custom Multilayer Structure | Individual layers selected around product and process requirements | Application-specific retort programs and converter requirements |
These structures are engineering directions rather than universal recipes. Individual film thicknesses, adhesive chemistry and sealant grade should be selected after the actual food product and process cycle have been defined.
Approximately 121°C is widely used in commercial retort processing, but the actual scheduled process depends on the food formulation, fill weight, package dimensions and required commercial sterilization conditions.
A laminate specified for 121°C should maintain acceptable bond, seal, barrier and appearance after the complete heating and cooling cycle, not merely tolerate brief exposure to the nominal temperature.
For processes around 125°C, adhesive, sealant and ink systems should be specifically selected and validated for the increased thermal and pressure exposure.
The current product range lists customized structures for processing up to 135°C. This should be treated as an application-specific option rather than a standard rating for every laminate construction.
For 135°C programs, the complete structure should be qualified for the required time, pressure, cooling cycle, food composition and package geometry.
The packaging material does not by itself establish the thermal process required to make a food shelf stable. The scheduled process should be developed and validated by the food manufacturer or qualified processing authority for the actual product and package.
Important process inputs can include:
Food type, formulation and pH
Product viscosity and particulate size
Fill weight and fill temperature
Pouch width, height and filled thickness
Headspace and residual air
Retort equipment type
Scheduled temperature and processing time
Overpressure profile
Cooling conditions
Required lethality or validated process target
Changes to package size, fill weight, structure or product formulation may require review of the validated thermal process.
A retort laminate should be evaluated after the complete process, because heat and moisture can temporarily or permanently affect adhesives, polymers, seals and visual appearance.
Interlayer bond strength should remain sufficient after the specified retort cycle. Buyers can define pre-retort and post-retort peel-strength requirements where laminate adhesion is critical.
The laminate should be inspected after thermal processing for blistering, tunneling, bubbles or other signs of adhesive or lamination failure.
Handling, retort movement and distribution can create repeated flexing. Where barrier retention is critical, the complete laminate can be evaluated for flex-crack resistance before and after processing.
Reliable pouch performance depends on the seal layer and sealing conditions as well as the laminate itself.
Seal strength should be measured using an agreed test method both before and, where required, after the specified retort cycle.
The acceptable sealing window includes temperature, pressure and dwell time that produce stable seals without excessive distortion, sealant squeeze-out or thermal damage.
Food contamination in the seal area can reduce seal integrity. Filling equipment and pouch design should therefore minimize product contamination of the sealing surfaces.
Required seal width should be determined according to the pouch design, food product, packaging machine and validated retort process rather than using one universal width for every application.
An intact aluminum foil layer provides very high resistance to oxygen transmission through the metallic layer. Where oxidation-sensitive foods require controlled barrier performance, a numerical OTR requirement should be specified together with the test conditions.
Aluminum-containing laminates can provide very high moisture-barrier performance when the foil, laminate and finished pouch remain intact. WVTR should be defined numerically where moisture protection is critical.
Solid aluminum foil is opaque and blocks light transmission through the metallic layer, which can benefit light-sensitive foods and ingredients.
High-barrier laminate can reduce transfer of oxygen, moisture and volatile compounds, but final flavor retention and shelf life should be confirmed through product-specific storage and stability testing.
Retort pouches can be used for commercially sterilized foods intended for ambient distribution when the food formulation, thermal process, package integrity and storage program have been appropriately validated.
The laminate alone should not be assigned a universal shelf-life figure. Actual shelf life depends on food composition, oxygen sensitivity, package barrier, seal integrity, retort severity, distribution environment and storage temperature.
The current product range supports gravure printing up to 10 colors for branded food and pet-food packaging.
Reverse printing between laminate layers can help protect the printed image from external abrasion and direct food contact when the complete structure is correctly designed.
Inks and primers should remain stable through the specified retort temperature, moisture exposure and pressure cycle without unacceptable color shift, transfer, bleeding or loss of adhesion.
For printed commercial packaging, artwork, color standards, registration tolerance and approved print samples should be agreed before bulk production.
Food-contact suitability should be assessed for the complete laminate construction rather than the aluminum foil alone.
Relevant components can include:
Food-contact CPP, RCPP or PP sealant film
Laminating adhesive and residual components
Printing inks and primers
Coatings, additives and processing aids
Aluminum foil
Any functional or tie layers included in the laminate
Buyers should identify the destination market, food type, retort conditions and intended food-contact conditions so the applicable declarations, migration data or supporting documentation can be reviewed.

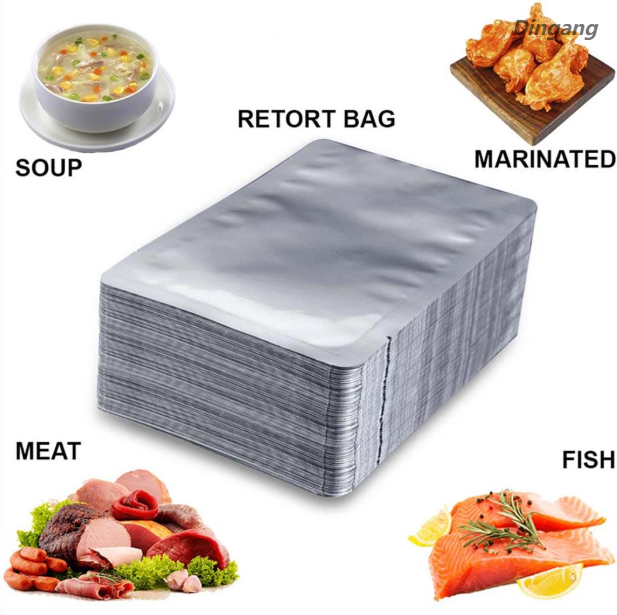

Retort aluminum laminates can be used for compatible rice dishes, curries, soups, stews, sauces, pasta and other prepared foods intended for thermal processing and ambient distribution.
Dense or particulate meals should be evaluated for pouch dimensions, filled thickness, puncture risk and thermal-process requirements.
Meat and seafood products can place greater mechanical demands on the pouch because bones, shells, hard particles or dense contents can create localized stress.
A PA-reinforced structure such as PET/AL/PA/CPP or PET/AL/PA/RCPP can be considered where additional puncture, flex and handling resistance is required.
Retort foil laminates are widely used for compatible wet pet-food pouches because they combine strong barrier properties with low package weight and flexible format options.
Chunk products, bones or hard inclusions should be considered when selecting PA reinforcement, total laminate thickness and sealant structure.
Retort laminate can be evaluated for suitable baby-food and nutritional packaging where the complete food-contact construction, migration requirements, pouch format and thermal process have been validated for the intended market.
Requirements for infant or medical nutrition can be more restrictive than general food packaging and should therefore be identified before material qualification.
A conventional retort pouch containing a continuous aluminum foil layer should not automatically be treated as suitable for conventional microwave heating.
Where a product must be heated directly in a microwave, a specifically designed metal-free or otherwise microwave-qualified retort packaging structure should be selected and validated for the intended appliance and food product.
| Test Item | What to Define |
|---|---|
| Total Thickness | Nominal thickness, tolerance and sampling method |
| Aluminum Thickness | Required foil gauge and applicable tolerance |
| Interlayer Bond Strength | Layer pair, pre-retort and post-retort peel requirement |
| Seal Strength | Seal method, test method and pre/post-retort minimum value |
| OTR | Required value, temperature and relative humidity |
| WVTR | Required value and test environment |
| Puncture Resistance | Required method and minimum force for demanding products |
| Retort Resistance | Temperature, duration, pressure and cooling cycle |
| Visual Inspection | Delamination, blistering, distortion, ink change, wrinkles and surface defects |
| Package Integrity | Leak, burst or other validated finished-pouch integrity tests where required |
Retort laminate can be supplied in roll form with protective packaging designed to reduce moisture exposure, contamination and mechanical damage during storage and international transportation.
Eye-to-sky or eye-to-wall packing can be discussed according to roll dimensions, lifting method and the customer's converting equipment.
The current published lead-time reference is 10–20 days depending on order quantity and specification. Final schedule should be confirmed during quotation and order placement.
Wooden Case Packing
Pallet Coil Packing
Aluminum Foil Barrier Pouch
To receive an accurate retort-laminate recommendation and quotation, please provide as much of the following information as possible:
Food product and formulation type
Product pH, where relevant to the process design
Fill weight
Filled pouch thickness
Pouch dimensions and format
121°C, 125°C, 135°C or other validated processing temperature
Retort duration and pressure profile
Steam, water spray, water immersion or other retort process
Required PET/AL/CPP, PET/AL/PA/CPP, PET/AL/RCPP or custom structure
Required individual layer thicknesses
Required aluminum foil thickness
Required total laminate thickness
Required sealant film and retort grade
Required interlayer bond strength
Required post-retort peel strength, if specified
Required heat-seal strength
Sealing temperature, pressure and dwell time
Required OTR and test conditions
Required WVTR and test conditions
Puncture or flex-resistance requirement
Printing artwork and number of colors
Gravure-printing requirement
Glossy or matte finish
Required roll width and tolerance
Core inner diameter
Maximum roll outside diameter
Maximum or preferred roll weight
Winding direction
Food-contact destination market
Required migration, declaration or food-contact documentation
Required retort, seal, OTR/WVTR or package-integrity test reports
Order quantity
Destination country or delivery port
Send Your Retort Packaging Requirements
It is a multilayer flexible packaging laminate containing aluminum foil and heat-resistant polymer films designed for food packages that undergo thermal retort processing.
The current product range includes PET/AL/CPP, PET/AL/PA/CPP, PET/AL/RCPP and PET/AL/PA/PP, with customized multilayer constructions available according to the process and food product.
The published aluminum foil thickness range is 7μm to 25μm.
The current published total thickness range is 70μm to 180μm.
Suitable retort-grade structures can be designed for 121°C processing, but performance must be confirmed for the actual time, pressure, cooling cycle, food and pouch geometry.
The current product range includes structures intended for 125°C processing. Retort-grade adhesive, sealant and printing systems should be qualified for the specified cycle.
No. The current product information lists customized 135°C structures, but a general PET/AL/CPP laminate should not automatically be treated as suitable for that temperature.
CPP is cast polypropylene used as a sealant film in many flexible packages. RCPP refers to a polypropylene sealant grade developed for retort conditions and should be selected according to the required thermal process.
PA can increase puncture, impact and flex resistance, making it useful for meat, seafood, pet food and other products with hard or irregular contents.
An intact aluminum layer provides very high oxygen-barrier performance, but finished package performance can still be affected by foil defects, flex cracks, seals and handling damage.
No universal shelf life should be assigned to the laminate alone. Shelf life depends on food formulation, retort process, barrier requirements, seal integrity and storage conditions and should be validated for the finished product.
A properly processed retort food can be designed for ambient shelf-stable distribution when the food formulation, scheduled thermal process and package have been validated for that purpose. The packaging material alone does not establish commercial sterility.
A conventional pouch containing continuous aluminum foil should not automatically be used in a conventional microwave oven. Products intended for direct microwave heating require a specifically designed and validated packaging structure.
Yes. The current product range supports gravure printing up to 10 colors. Ink, primer and laminate construction should be suitable for the required retort cycle.
Depending on the package, post-retort inspection can include seal strength, interlayer peel strength, delamination, blistering, leakage, pouch distortion, print condition and barrier retention.
It can be an appropriate structure direction for wet pet-food retort packaging because PA adds mechanical reinforcement and RCPP provides a retort-oriented seal layer. Final suitability must be validated for the actual product and process.
Suitable structures can be evaluated for baby-food packaging, but food-contact, migration, thermal-process and destination-market requirements should be reviewed specifically for that application.
Food-contact suitability applies to the complete intended use of the material. Sealant films, adhesives, inks, coatings and other components should have appropriate regulatory support for the food type and processing conditions.
Sample availability can be confirmed according to laminate structure, total thickness, roll width, printing and retort requirements. Trial pouch production and actual thermal-process testing are recommended before commercial approval.
Please provide food type, fill weight, pouch size, retort temperature and cycle, laminate structure, individual layer thicknesses, seal requirements, OTR/WVTR targets, printing requirements, roll dimensions, quantity and destination.
