Lacquered Aluminum Foil for Food Containers, Trays & Lids

Lacquered Aluminum Foil for Food Containers, Trays and Lids

Lacquered aluminum foil is aluminum foil or thin-gauge container stock supplied with a controlled protective, decorative or heat-seal coating for food containers, trays, lids and compatible packaging applications.

The current product range includes 8011, 8006 and 3003 alloys in O, H22 and H24 tempers, with thicknesses from 0.03 to 0.15 mm and widths from 200 to 1300 mm. Single-side and double-side lacquer systems can be selected according to the required forming, food-contact, heat-resistance and sealing conditions.

For formed food containers, alloy, temper, thickness and lacquer flexibility must work together during stamping. For lidding applications, the heat-seal lacquer must also match the actual container rim material, sealing temperature, pressure, dwell time and required peel strength.

Food-contact suitability should be confirmed for the complete supplied structure, including aluminum alloy, lubricant, primer, lacquer, printing ink or laminate, together with the destination market and intended conditions of use.

Request Lacquered Aluminum Foil Price

Technical Specifications

Two Main Lacquered Foil Structures

Lacquered Foil for Food Containers and Trays

Container foil is selected primarily for stamping, drawing and forming. The lacquer must remain compatible with the forming process while providing the required surface protection, food resistance, appearance and thermal performance.

Typical material selection involves 3003, 8006 or 8011 with O, H22 or H24 temper depending on drawing depth, flange geometry, wall stiffness and the finished container design.

Heat-Seal Lacquered Foil for Lids

Lidding foil requires a different coating approach. The heat-seal layer must be chemically and mechanically compatible with the actual container sealing surface, such as PP, PS, PET, PE or another approved substrate.

The lidding specification should define whether the required opening behavior is easy peel, controlled peel or a stronger permanent-type seal. Seal strength should be validated using the actual container rim, filling conditions and sealing equipment.

Discuss Container or Lidding Foil Structure

How to Choose the Aluminum Alloy

8011 Aluminum Foil

8011 is widely used in packaging and lidding applications because it can be supplied in soft or harder conditions depending on the forming or sealing requirement.

For lids and converted foil, the final specification should also define coating, surface cleanliness, printability and seal requirements rather than relying on alloy designation alone.

8006 Aluminum Foil

8006 can be selected for formed food-container applications where its strength, elongation and forming behavior suit the required tray geometry.

The final temper and thickness should be matched to drawing depth, flange design and finished-container rigidity.

3003 Aluminum Foil

3003 is an Al-Mn alloy commonly used for semi-rigid food containers because it combines useful strength, formability and corrosion resistance.

For deeper or more demanding forms, container tooling and material temper should be evaluated together before bulk production.

Selecting O, H22 or H24 Temper

O Temper

O temper is fully annealed and provides greater softness and ductility. It can be considered where deeper forming or greater material flexibility is required.

H22 Temper

H22 provides a balance between formability and strength for suitable container designs. The correct selection depends on alloy, gauge and forming depth.

H24 Temper

H24 provides greater rigidity than softer conditions and is commonly evaluated where the finished tray or container requires additional stiffness while retaining sufficient forming capability.

Lacquer System Selection

Protective Lacquer

Protective lacquer can provide separation between the aluminum surface and the packaged product, improve resistance to oils or food residues and provide a controlled surface for formed containers.

The required chemistry depends on the food type, filling temperature, reheating or baking conditions, contact time and destination-market food-contact requirements.

Heat-Resistant Lacquer

Where the finished container is exposed to baking, reheating, hot filling or sterilisation processes, the lacquer system should be validated for the actual temperature and duration.

The temperature capability of bare aluminum should not be used as the temperature rating of the complete coated foil.

Oil-Resistant Lacquer

Oil resistance should be evaluated using the actual food composition, temperature and contact duration. A lacquer described as oil-resistant should not automatically be assumed suitable for every fatty, acidic or salty food.

Heat-Seal Lacquer

Heat-seal lacquer is selected according to the container flange or sealing surface. PP, PS, PET, PE and other substrates can require different lacquer chemistry and sealing conditions.

The target seal must be validated for sealing temperature, pressure, dwell time, peel force, leak resistance and storage conditions.

Single-Side vs. Double-Side Lacquer

Single-side coating can be selected where only the food-contact or sealing side requires a functional lacquer. Double-side coating can be used where both surfaces require protection, color, printability or application-specific performance.

Request a Lacquer System Recommendation

Forming Performance for Aluminum Containers

Stable container production requires more than nominal foil thickness. Alloy, temper, tensile properties, elongation, rolling direction, lubrication, lacquer flexibility and die geometry all influence the forming result.

Forming Depth

Deeper containers normally place greater demand on foil elongation and coating flexibility. The material should be evaluated against the actual tray drawing rather than selected from thickness alone.

Corner Radius

Tight corner radii increase localized strain. Tool geometry and material temper should be reviewed to limit tearing, wrinkling or coating damage.

Flange Geometry

The finished flange must be compatible with the lid or closing system. Flatness and dimensional stability become especially important where the container is heat sealed.

Coating Adhesion After Forming

Lacquer adhesion should remain acceptable after the required stamping or drawing operation. Severe forming can stretch, crack or thin an unsuitable coating even when the flat foil initially appears satisfactory.

Heat-Seal Performance for Lids and Closures

Lidding performance depends on the complete interface between foil, heat-seal lacquer, container rim and sealing equipment.

Container Material

Identify whether the lid will seal to PP, PS, PET, PE, lacquered aluminum or another approved surface. The lacquer must be selected for that exact substrate.

Seal Strength

Seal strength should be specified numerically where contract-critical. Excessively weak seals can leak, while excessive seal strength can make consumer opening difficult or damage the container rim.

Peelability

Easy-peel applications require controlled adhesion so the lid remains secure during filling, transport and storage but opens cleanly when used.

Sealing Window

High-speed production benefits from a practical sealing window rather than one exact temperature. The acceptable range should be validated using the customer's production line and actual container material.

Food-Contact and Process Compatibility

An aluminum alloy number alone does not make finished lacquered foil suitable for every food-contact application. The supplied lacquer, lubricant, ink, primer or laminate must also be appropriate for the intended conditions of use.

Before production, specify destination market, food type, direct or indirect contact, contact temperature, contact duration, reheating or baking requirements and any required migration or regulatory documentation.

Acidic and Salty Foods

Acidic, salty or chemically aggressive foods may require a dedicated lacquer system. Actual compatibility should be tested with the intended product and process.

Baking and Reheating

Where containers are baked or reheated, specify the maximum temperature, exposure duration and food composition so coating performance can be verified.

Retort and Sterilisation

Retort or sterilisation applications require dedicated coating and package validation. A general heat-resistant lacquer should not automatically be treated as suitable for every retort process.

Product Characteristics

Suitable lacquered aluminum foil can provide useful heat resistance for compatible baking and reheating applications when the coating system is validated for the actual process.

Appropriate coatings can provide resistance to oils, moisture and food residues according to the selected lacquer chemistry and intended contact conditions.

Controlled alloy, temper and thickness help support stable stamping and forming performance for container production.

Smooth and consistent foil surfaces help support high-speed coating, slitting, printing, stamping and sealing operations.

Food-contact suitability should be confirmed for the exact finished lacquered structure and intended market rather than assumed from bare aluminum alone.

Process-Oriented Material Selection

Material should be selected according to the actual converting process. A shallow takeaway tray, deep airline casserole, dairy lid and heat-sealed food container can require different alloy, temper, thickness and lacquer combinations.

Instead of selecting only by nominal gauge, provide the finished component drawing, forming depth, sealing surface and processing temperature so the material specification can be reviewed before bulk supply.

Stable Coating and Forming Consistency

Consistent thickness, surface cleanliness, lacquer coverage and coating adhesion help reduce production variation during high-speed forming and sealing.

For repeat orders, the agreed alloy, temper, coating structure and approved reference sample should remain consistent across production batches where these parameters are contract-critical.

Main Applications

Disposable Aluminum Food Containers

Lacquered aluminum can be formed into suitable takeaway trays, airline casseroles, bakery containers and ready-meal packaging where the selected material meets the drawing and food-contact requirements.

Household and Catering Applications

Certain lacquered foil structures can be used for household or catering packaging, but household wrapping foil typically uses different gauges and supply specifications from semi-rigid container stock.

Pharmaceutical Applications

Pharmaceutical packaging requires dedicated alloy, temper, lacquer, printing, pinhole, cleanliness and regulatory specifications. The food-container product specification on this page should not automatically be substituted for pharmaceutical foil.

Flexible Packaging

Flexible laminates can use coated aluminum foil as a barrier layer, but thin flexible-packaging foil normally has a different gauge, temper and converting specification from 0.03–0.15 mm container stock.

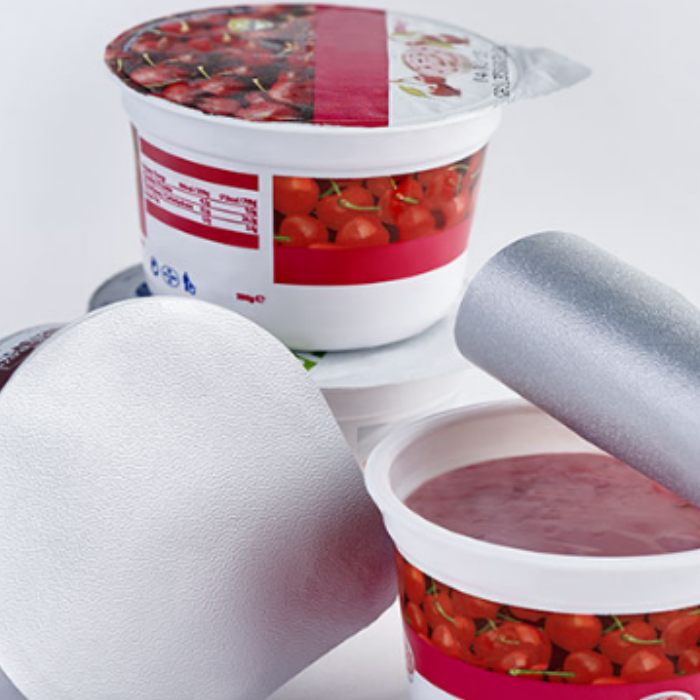

Dairy Lids and Heat-Seal Applications

Lacquered aluminum foil can be used for suitable dairy and dessert lids where the foil thickness, primer, printing surface and heat-seal lacquer are matched to the cup or container material.

Typical applications can include yogurt cups, cream portions, pudding cups, sauces and other portion packs where the approved lidding structure provides the required seal and opening behavior.

PP Containers

For polypropylene rims, specify a heat-seal system designed and validated for the actual PP grade and sealing equipment.

PS Containers

Polystyrene dairy cups can require a different heat-seal chemistry from PP or PET. Seal temperature and peel behavior should be tested using the final cup.

PET Containers

PET sealing surfaces should be identified clearly in the inquiry so the lacquer system can be selected for the actual resin and required peel performance.

Aseptic Carton Applications Require a Separate Specification

Aluminum foil is used as a barrier layer in some aseptic beverage and dairy carton structures, but those products are multilayer laminates designed around paperboard, polymer layers, foil gauge, sterilisation process and package converting equipment.

The current 0.03–0.15 mm lacquered food-container specification should not automatically be treated as an aseptic-carton foil specification. Buyers requiring aseptic packaging foil should provide the complete laminate structure, foil thickness, surface and processing requirements separately.

Induction-Seal and Foil Diaphragm Applications

Aluminum foil can form part of an induction-seal liner or foil diaphragm structure for bottles and containers. The aluminum layer interacts with the electromagnetic field, while sealing performance depends on the complete liner construction and compatible heat-seal layer.

Induction-seal applications should specify container material, neck finish, liner structure, sealing equipment, line speed and opening requirement. Bare lacquered foil alone should not be assumed to represent a complete induction-liner system.

High-Speed Converting Requirements

Thickness Consistency

Stable foil gauge supports repeatable forming, sealing and feeding. Thickness tolerance should be agreed according to nominal gauge and final production process.

Coating Uniformity

Uneven lacquer coverage can create variation in corrosion protection, forming behavior or heat-seal performance. Coat weight and coating uniformity should be specified where these parameters are critical.

Surface Cleanliness

Oil residue, particles and surface contamination can interfere with coating, printing or sealing. Cleanliness requirements should be defined for high-speed converting.

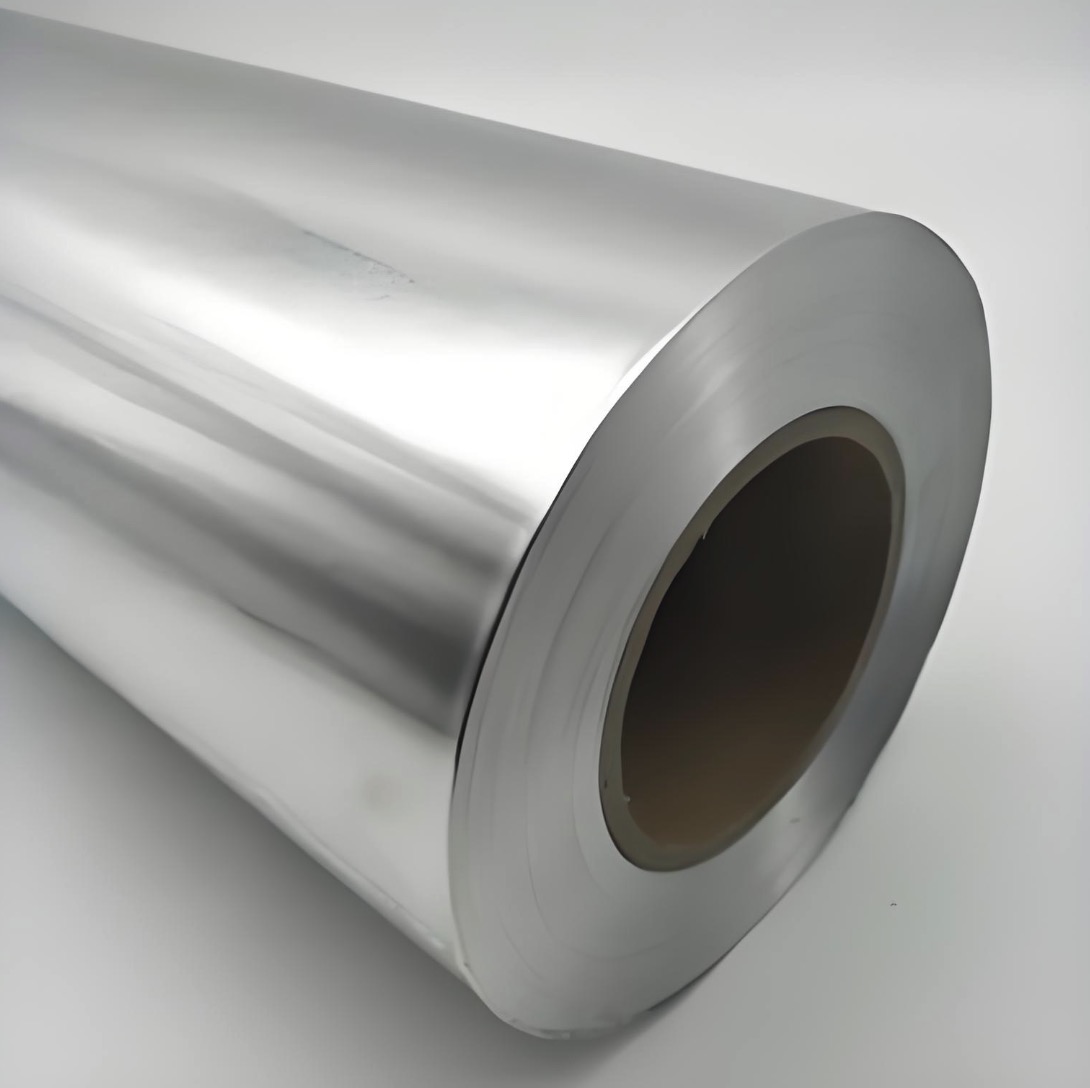

Roll Shape

Jumbo rolls should be supplied with stable winding, controlled edge alignment and suitable core dimensions for the receiving slitting, coating or stamping line.

Quality Checks Before Production

Verify Alloy and Temper

Confirm 8011, 8006 or 3003 and the agreed O, H22 or H24 temper against the material documentation before converting.

Measure Foil Thickness

Verify nominal thickness within the ordered 0.03–0.15 mm range using the agreed tolerance and measurement method.

Check Width

Confirm roll width against the specified 200–1300 mm range and the requirements of the forming or slitting equipment.

Inspect Coating Adhesion

Coating adhesion should be checked before and, where relevant, after representative forming or sealing trials.

Check Coating Appearance

Inspect for bare spots, excessive variation, scratches, contamination, stains or other defects that could affect food contact, forming or visual appearance.

Run a Forming Trial

For a new tray design, test representative material using the intended dies, lubricant and production speed before bulk approval.

Run a Heat-Seal Trial

For lidding foil, test representative material against the actual container using production sealing temperatures, pressures and dwell times before approving mass production.

Request Material for a Forming or Sealing Trial

Customizable Options

Thickness and width can be selected within the available production range according to container design, tooling and roll requirements.

Single-side or double-side lacquer structures can be discussed according to whether the foil requires food protection, heat-seal performance, decorative color, printability or surface protection.

Coating color and appearance can be customized where the selected lacquer system supports the required forming and food-contact conditions.

Core size, roll weight, slit width and winding direction can be discussed according to the customer's production line.

Packaging and Delivery

Information to Provide for a Quotation

For an accurate quotation, please provide the final application, container or lid drawing, alloy and temper if specified, thickness, width, core ID, roll weight or outside diameter, single-side or double-side lacquer requirement, food type, processing temperature, forming depth, sealing substrate where applicable, heat-seal requirement, printing or color requirement, required food-contact documents, order quantity, packing requirement and destination.

Get a Lacquered Aluminum Foil Quote

Frequently Asked Questions

What is lacquered aluminum foil?

Lacquered aluminum foil is aluminum foil or thin-gauge aluminum stock supplied with a controlled coating that can provide protection, color, oil resistance, heat resistance or heat-seal functionality depending on the lacquer system.

Which alloys are available?

The current product specification lists 8011, 8006 and 3003.

Which tempers are available?

The current product range lists O, H22 and H24. The correct condition depends on alloy, thickness, drawing depth and required finished-container rigidity.

What thickness range is available?

The current listed thickness range is 0.03–0.15 mm.

What width range is available?

The current listed width range is 200–1300 mm.

What is the difference between container foil and lidding foil?

Container foil is selected mainly for forming and stamping, while lidding foil is selected around the sealing surface, heat-seal lacquer, seal strength and peel behavior. They may use different gauges, tempers and lacquer constructions.

Which alloy is best for food containers?

3003, 8006 and 8011 can all be used in suitable container applications. Selection should be based on forming depth, rigidity, thickness, temper and the finished container design.

Can the foil be used for yogurt lids?

Yes, suitable lacquered aluminum foil can be used for yogurt and dairy lids when the foil structure and heat-seal lacquer are matched to the actual cup material and sealing conditions.

Can the foil seal to PP containers?

It can when a heat-seal lacquer compatible with the actual polypropylene sealing surface is specified and validated using the production container and sealing equipment.

Can the foil seal to PS containers?

Yes, a suitable PS-compatible heat-seal system can be used where validated for the required seal strength and peel performance.

Can the foil seal to PET containers?

PET applications require a compatible heat-seal lacquer selected for the actual PET rim or coating. Seal trials should be performed before bulk approval.

Is the lacquer always heat sealable?

No. Protective, decorative and heat-resistant lacquers do not automatically provide heat-seal functionality. Heat sealing requires a dedicated lacquer or compatible sealing layer.

Can single-side lacquered foil be supplied?

Yes. The current product range includes single-side and double-side lacquer configurations.

Can the lacquer be colored?

Colored lacquer can be discussed where the formulation is compatible with forming, food-contact requirements and required thermal performance.

Is lacquered foil suitable for baking?

It can be suitable when the exact coating system is validated for the required baking temperature, exposure time and food composition. Bare aluminum temperature capability should not be used as the coating temperature rating.

Is lacquered foil oil resistant?

Suitable lacquers can provide oil resistance, but compatibility depends on coating chemistry, food type, temperature and contact duration.

Is all lacquered aluminum foil automatically safe for direct food contact?

No. Food-contact suitability must be established for the exact aluminum, lacquer, lubricant, ink or laminate structure and the intended conditions of use.

Can FDA or EU documentation be supplied?

The existing product information lists FDA and EU documentation upon request. The exact document, coating system, scope and destination-market requirement should be confirmed before production.

Can this foil be used for aseptic milk cartons?

Aseptic cartons use a dedicated multilayer packaging structure and normally require a separate foil specification. The 0.03–0.15 mm food-container product on this page should not automatically be treated as aseptic-carton foil.

Can the foil be used for induction sealing?

Aluminum foil can form part of an induction-seal liner, but the complete liner construction, heat-seal layer, bottle material and induction equipment must be specified and validated together.

Is the foil suitable for pharmaceutical packaging?

Pharmaceutical packaging requires a dedicated product specification covering alloy, temper, pinholes, coating, printing, cleanliness and regulatory requirements. The food-container specification should not automatically be substituted.

Can the foil be used for flexible packaging?

Coated aluminum can be used in flexible packaging structures, but thin laminate foil normally uses a different gauge and converting specification from semi-rigid container foil.

Can the material run on high-speed container-forming lines?

It can be evaluated for high-speed production when thickness, alloy, temper, lubrication, coating adhesion, roll quality and tooling are matched to the actual forming line.

Can the material run on high-speed sealing lines?

Yes, where the heat-seal lacquer and foil structure provide a validated sealing window at the required line speed, temperature, pressure and dwell time.

What should be tested before bulk production?

For containers, test forming performance, coating adhesion and food compatibility. For lids, test seal strength, peelability, leak performance and sealing-window stability using the actual container.

Can slit widths be customized?

Custom slitting can be discussed within production capability. Provide width tolerance, core ID, roll weight and winding direction with the inquiry.

How is lacquered aluminum foil packed?

The existing product information references standard export wooden cases with moisture-proof protection and eye-to-wall or eye-to-sky roll orientation where suitable.

What is the reference delivery time?

The existing product information references approximately 15–20 days. Actual delivery time depends on specification, coating, quantity and production schedule.

What information should I provide for a quotation?

Please provide the final application, container or lid type, alloy and temper if known, thickness, width, core ID, roll weight, lacquer configuration, food type, forming depth, processing temperature, sealing substrate and seal requirement where applicable, printing or color requirement, quantity, required food-contact documents, packing requirement and destination.
