Prepainted Aluminium Sheet for Caravans, Motorhomes and Refrigerated Truck Bodies

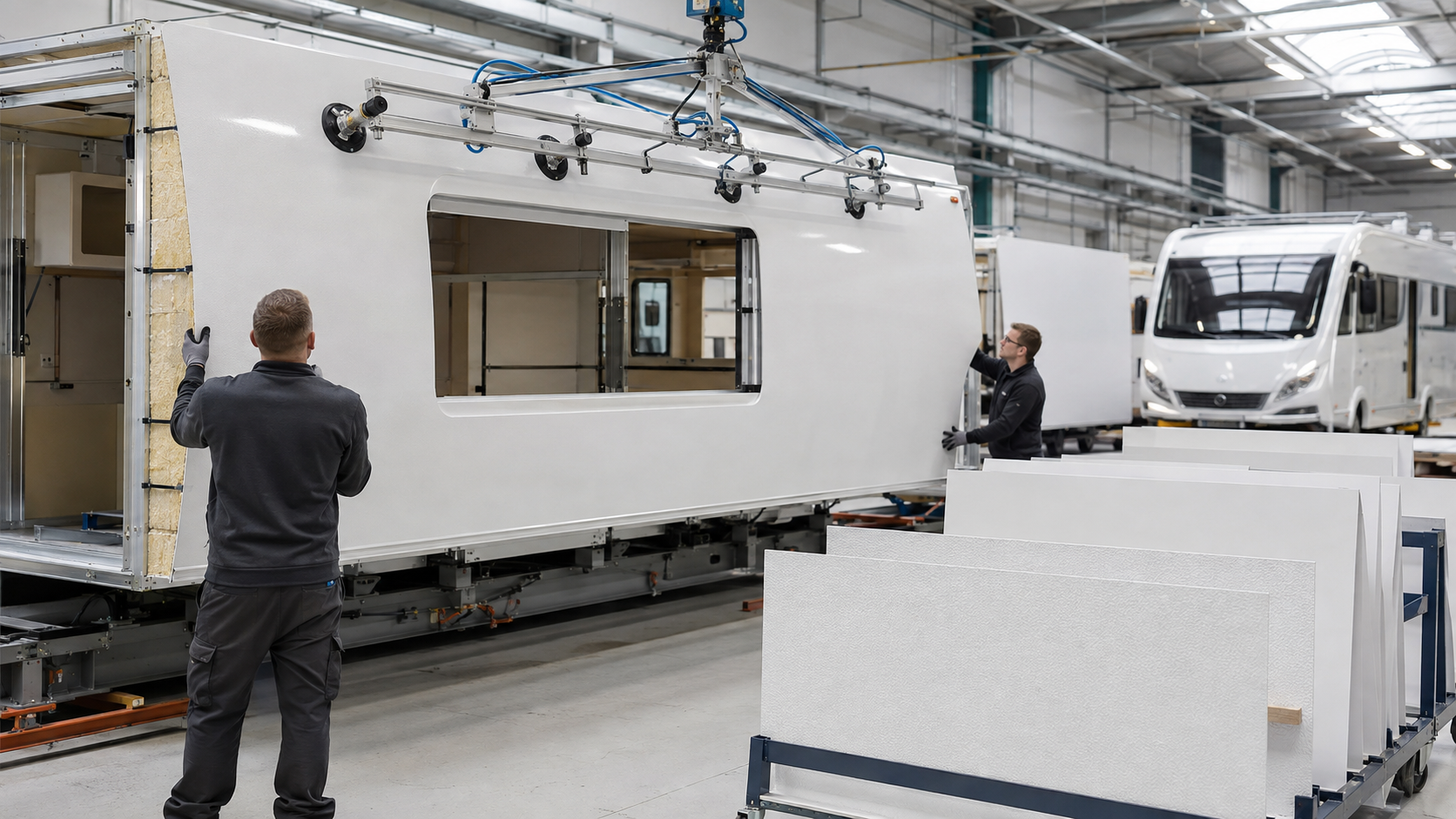

A caravan sidewall is one of the largest visible panels on the vehicle. It has to stay flat, retain its colour, bond to the wall construction and arrive at final assembly without scratches. At the same time, every kilogram added to the body reduces payload or increases the energy required to move it.

These are practical reasons why prepainted aluminium is used in caravans, recreational vehicles and commercial vehicle bodies. The European Coil Coating Association identifies caravans and recreational vehicles as established applications and also notes the use of prepainted metal in lorries, tankers, buses and trains.

Ding’ang supplies smooth and embossed color-coated aluminium coil and sheet for vehicle skins, roof panels, interior liners and refrigerated-body laminates. The specification can be adapted to panel width, bonding process, strength requirement and exterior finish.

Where the material is used

Typical components include:

• caravan and motorhome exterior sidewalls;

• roof skins and front or rear decorative panels;

• trailer and horsebox wall panels;

• refrigerated truck and van-body skins;

• insulated box-body interior liners;

• service-door and compartment panels;

• ceiling and furniture-facing sheets;

• colour-matched trims and protective covers.

Each component has a different risk profile. An exterior wall needs visual consistency and weather resistance. A roof needs forming and sealant compatibility. A refrigerated liner needs cleanability and resistance to condensation. One coating should not be copied across all parts without validation.

Choosing between 3003, 5052 and 5754

AA3003 is a common choice for general vehicle skins and laminated panels. It offers good formability and corrosion resistance and can be supplied in soft or half-hard tempers depending on handling and shaping.

AA5052 offers higher strength and is useful for panels or components requiring better dent resistance and mechanical performance. AA5754 may be considered for still higher-strength transport applications, subject to the forming and joining process.

The wall-panel designer should evaluate:

• skin thickness and panel stiffness;

• adhesive and core contribution;

• impact and dent requirements;

• bending, hemming or corner-forming operations;

• thermal expansion of long exterior panels;

• road vibration and fixing design;

• repair method and end-of-life separation.

Changing alloy may also change springback and adhesive-surface preparation. A sample panel should be built and aged before the commercial order.

Smooth or embossed exterior skin?

Smooth sheet creates a clean, modern finish and works well for printed graphics or premium vehicle designs. It also makes minor dents, adhesive read-through and handling marks more visible.

Embossed aluminium adds texture. Depending on the pattern, it can make small surface variations less noticeable and may change the apparent stiffness of the skin. Stucco and other shallow textures are widely used in utility and refrigerated applications.

Ding‘ang can discuss smooth matte, glossy and embossed finishes, together with RAL, Pantone or sample-matched colours. When the customer applies graphics or decals, ink, adhesive and overlaminate compatibility should be tested on the final coating.

Width and flatness affect the finished wall

A wider skin can reduce seams and improve appearance, but it requires careful handling and coil-shape control. Thin, wide aluminium can show waves if winding tension, levelling or laminating pressure is uneven.

The buyer should specify:

• usable material width, including trim allowance;

• thickness and permitted variation;

• flatness or waviness acceptance method;

• coil ID, maximum OD and maximum weight;

• surface-defect criteria for the visible side;

• winding and visible-side orientation;

• protective film and interleaf requirements;

• splice policy for continuous lamination.

A small A4 colour sample cannot validate these properties. For new vehicle-body programmes, request a full-width trial or a production-representative cut sheet.

Bonding to foam, plywood and composite cores

Many caravan and refrigerated-body panels are laminates. The aluminium skin may be bonded to foam, plywood, honeycomb or another composite layer. Coating on the bonding side must be compatible with the selected adhesive.

Important trial variables include:

• adhesive type and coating weight;

• open time and press cycle;

• surface cleaning before lamination;

• cure temperature;

• peel strength at room and low temperature;

• humidity, freeze-thaw and heat ageing;

• panel bow after curing.

For direct foaming, EN 13523-20 offers a method for evaluating foam adhesion to an organic coating. The vehicle or panel manufacturer should add application-specific ageing tests that reflect real service.

Why prepainted sheet can simplify production

Painting a complete vehicle-body panel requires space, ventilation, curing and significant handling. Prepainted coil moves the finishing stage upstream, where coating thickness and cure can be controlled continuously.

For the body manufacturer, that can mean:

• fewer paint-line operations;

• reduced work-in-progress;

• repeatable colour and gloss;

• faster movement from lamination to assembly;

• easier planning of standard fleet colours;

• reduced overspray and paint handling at the panel plant.

The benefit depends on disciplined batch control. Repair paints, sealants, adhesives and decals should all be approved against the selected coating.

Ding’ang supply options

Dingang's product platform includes:

• 3003, 5052 and other application-approved aluminium alloys;

• coil or sheet in customer-specific thickness and width;

• smooth, matte, glossy, brushed or embossed surfaces;

• PE, PVDF and project-agreed coating systems;

• white, grey and custom fleet colours;

• visible-face protective film;

• coating and mechanical tests agreed by batch;

• seaworthy pallets and coil packaging for export.

For a refrigerated body, the exterior and interior skins can be specified separately. This prevents paying for exterior UV performance on an internal liner while ensuring the liner has the required cleanability and humidity resistance.

Frequently asked questions

Is prepainted aluminium suitable for one-piece caravan roofs?

It can be, subject to width, forming, joint design, thermal movement and sealing requirements. The roof manufacturer should trial the full construction rather than approve the metal alone.

Does embossed aluminium weigh more than smooth sheet?

At the same nominal metal thickness, the mass per square metre is broadly governed by alloy density and thickness. Embossing changes geometry and apparent stiffness, not the basic amount of metal, although process and thickness tolerances must be considered.

Can the outside and inside of a refrigerated panel use different coatings?

Yes, and this is often sensible. The exterior may prioritise weathering and colour; the interior may prioritise cleanability, condensation and chemical resistance.

Can Ding‘ang provide wide sheets instead of coils?

Both coil and cut-sheet supply can be discussed. Availability depends on the required width, thickness, surface, flatness and shipment size.

Build and test a representative panel

Send Dingang the wall or roof construction, skin thickness, width, adhesive system, surface finish and annual volume. We can prepare a coated or embossed aluminium proposal for a full-size lamination trial.
