Aluminum Alloy 8011
Dingang
| Aluminum Alloy: | |
|---|---|
| Aluminum Foil Thickness: | |
| Color Options::: | |
| ID: | |
| Temper: | |
| Availability: | |
| Quantity: | |
Aroma-tight lacquered aluminum foil is designed for heat-sealed lids used on compatible single-serve coffee capsules and beverage pods. The material combines soft-temper aluminum foil with a print or protective primer on the exterior side and an application-specific heat-seal lacquer on the sealing side.
The current product specification uses AA8011-O soft-temper aluminum foil in a 30–40μm thickness range. The soft aluminum substrate provides controlled flexibility for lid converting and brewing-system opening behavior, while the heat-seal lacquer can be selected for compatible aluminum, PP, PBT or other approved capsule rim materials.
For coffee-capsule packaging, foil gauge, lacquer chemistry, seal strength, embossing, printing, capsule geometry and brewing-machine opening behavior should be developed as one complete lidding system rather than evaluated independently.
Request a Coffee Capsule Foil Quotation

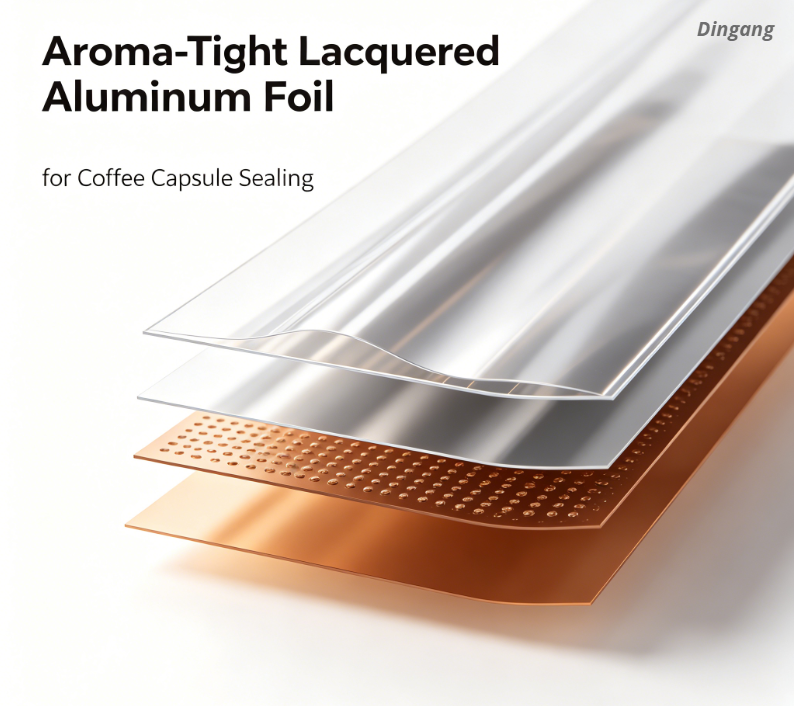

Layer | Primary Function | Purchasing Consideration |
|---|---|---|
Print / Protective Primer | Supports printing and protects the exposed aluminum surface | Confirm ink system, printing method, embossing and brewing-temperature exposure |
AA8011-O Aluminum Foil | Provides the main metallic barrier and mechanical lidding structure | Confirm gauge, temper, puncture behavior, pinhole limits and die-cut performance |
Heat-Seal Lacquer | Bonds the lid to the capsule rim during sealing | Select according to aluminum, PP, PBT or other actual rim substrate |
Technical Property | Published / Available Specification | Order Requirement |
|---|---|---|
Product Type | Lacquered aluminum foil for coffee capsule lids | Confirm capsule type and brewing system |
Primary Alloy | AA8011 | Other suitable foil grades can be evaluated where required by the capsule design |
Temper | O soft temper | Confirm mechanical behavior with actual lid geometry and brewing system |
Foil Thickness | 30–40μm | Select according to die-cutting, embossing, puncture and extraction requirements |
Published Gauge Tolerance | ±3% reference | Confirm gauge measurement method and sampling plan |
Coating Structure | Primer / AA8011-O aluminum / custom heat-seal lacquer | Final coating system should match printing, rim substrate and food-contact requirements |
Published Seal Strength | ≥8.0N/15mm to aluminum / PP reference | Confirm substrate, seal temperature, pressure, dwell time and peel-test method |
Published Sealing Window Reference | Approximately 180–230°C depending on system | Actual production window must be established on the customer's capsule and sealing machine |
Capsule Rim Compatibility | Aluminum / PP / PBT / application-specific substrates | Lacquer chemistry must be matched to the actual rim surface |
Surface | Flat / embossed / printed | Embossing pattern and depth should be approved against lid punching and sealing performance |
Printing | Custom printing available | Confirm gravure/flexographic process, color count, ink system and artwork orientation |
Pinhole Requirement | Project-specific | Define inspection method and acceptable defect level rather than assuming zero pinholes |
Residual Solvent / Odor | Controlled according to coating and printing specification | Specify analytical and organoleptic requirements where critical |
Roll / Die-Cut Supply | Project-specific | Confirm roll stock or finished lid requirements during quotation |
Documentation References | SFDA / SASO / FDA / EU food-contact / RoHS references currently published | Request current documents applicable to the exact coating structure and destination market |
Seal strength, sealing temperature and opening behavior should always be verified with the actual capsule rim, sealing machine, filled coffee product and brewing system before commercial approval.
Request Technical Data & Sealing Samples
Soft-temper aluminum provides higher ductility than hard-temper pharmaceutical push-through foil and can therefore be suitable for coffee-capsule lids that require controlled flexing, embossing and opening behavior during brewing.
The correct mechanical response depends on the brewing system. Some capsule systems open or rupture the lidding against an extraction plate, while others use different piercing or pressure-release arrangements.
For this reason, O temper should be qualified with the actual capsule, lid diameter, embossing pattern and machine rather than assumed to provide identical performance across all single-serve systems.
Selection Factor | 30μm | 40μm |
|---|---|---|
Material Stiffness | Lower under comparable conditions | Higher under comparable conditions |
Opening / Puncture Behavior | Can require less force depending on lid design | Can require greater force depending on lid design |
Embossing | Suitable where the approved embossing geometry permits | Provides additional foil mass for some embossed lid designs |
Final Selection | Validate on actual capsule and brewing machine | Validate on actual capsule and brewing machine |
Roasted and ground coffee contains volatile aromatic compounds and oils that can change during storage when exposed to oxygen, moisture, heat and other environmental conditions.
An intact aluminum foil layer provides an extremely effective barrier to light and very high resistance to oxygen and water-vapor transmission through the metallic layer.
Finished coffee-capsule shelf life still depends on the complete system, including foil pinholes, capsule body barrier, heat-seal integrity, capsule seams, storage temperature, coffee degassing and initial oxygen level at filling.
Freshly roasted coffee releases carbon dioxide after roasting and grinding. Capsule manufacturers should control roast-to-pack timing, residual gas and filling conditions according to their coffee blend and capsule design.
The lidding foil should not be described as simply trapping all gas indefinitely; package pressure and coffee degassing behavior should be considered during commercial capsule development.
Where oxidation-sensitive premium coffee requires controlled residual oxygen, the filler can define oxygen targets and use appropriate inert-gas flushing or other approved packaging procedures.
Aluminum capsule rims require a lacquer system developed for the actual rim surface, coating and capsule manufacturing process.
The sealing layer should provide sufficient bond strength during filling, distribution and brewing while allowing the lid to open or puncture in the manner required by the brewing system.
The lacquer does not normally create a metallurgical metal-to-metal fusion. It forms an adhesive heat-seal bond between the coated aluminum lid and the prepared aluminum capsule rim.
Seal performance can be affected by rim lacquer, surface contamination, coffee particles, rim flatness and sealing-tool alignment. Line validation should therefore use production-representative capsules.
Plastic coffee capsules require a heat-seal lacquer compatible with the specific polymer and surface formulation used for the capsule rim.
PP and PBT should not be treated as interchangeable sealing surfaces. Resin grade, additives, molding conditions and rim geometry can change sealing behavior even when the nominal polymer type remains the same.
For new plastic-capsule projects, providing empty capsule samples is recommended so the heat-seal lacquer can be evaluated directly on the intended rim material.
The current product information publishes a seal-strength reference of ≥8.0N/15mm to aluminum or PP.
This value should be treated as meaningful only when the test substrate, seal temperature, seal pressure, dwell time, conditioning and peel-test method are defined.
The current product information references sealing temperatures in the approximate range of 180°C to 230°C depending on substrate, line speed and dwell time.
The commercial operating window should be established on the actual packaging line. A temperature that seals one capsule material successfully can produce inadequate or excessive sealing on another.
Coffee particles on the rim can interfere with sealing. Where contamination tolerance is important, the actual filled-capsule line should be tested across realistic rim-cleanliness conditions.
Coffee capsule lidding performs both a storage function and a brewing-system function. During brewing, the lid must behave according to the intended machine design without uncontrolled tearing, premature opening or excessive resistance.
The required opening behavior depends on lid thickness, temper, embossing, capsule rim, seal strength, coffee fill, extraction plate geometry and the brewing-machine design.
Coffee-machine pump ratings should not be used directly as a universal pressure requirement for lidding foil. Actual pressure acting on the capsule and the point at which the lid opens depend on the complete brewing system.
Foil grade and opening behavior can influence the brewing-system pressure profile and extraction sequence. Final performance should be evaluated through filled-capsule brewing trials rather than foil testing alone.
Feature | Flat Foil | Embossed Foil |
|---|---|---|
Surface | Smooth | Textured according to embossing pattern |
Appearance | Clean printed metallic surface | Distinctive premium tactile and visual effect |
Thickness Measurement | Based directly on aluminum gauge and coatings | Finished apparent caliper increases according to embossing depth |
Brewing Performance | Validate with actual machine | Embossing can change stiffness and opening behavior; validate with actual machine |
The exterior foil surface can be prepared for compatible gravure or flexographic printing according to the required brand design.
Custom artwork can include logos, product names, roast identification, color coding, promotional graphics and other approved printed elements.
Where printed lids will be die cut from roll stock, repeat length, registration, eye marks, punching orientation and artwork position should be coordinated with the converter's equipment.
If printing or ink can come into direct contact with coffee or another beverage ingredient, the ink system and intended use should be evaluated separately for the applicable food-contact requirements.
Coffee is highly aroma-sensitive, so the lacquer, ink and residual solvents should be controlled so they do not create unacceptable odor or taste changes under normal and foreseeable use.
Where organoleptic performance is contract-critical, an agreed sensory or analytical test should be defined rather than relying on general statements such as odor-free or completely inert.
Printed and lacquered foil should be adequately dried and cured. Buyers can specify residual-solvent limits and analytical methods where these parameters are important to coffee flavor protection.
Food-contact suitability should be evaluated for the complete lidding construction and its intended conditions of use rather than from the aluminum alloy alone.
Components requiring review can include:
Aluminum foil substrate
Heat-seal lacquer
Print or protective lacquer
Printing inks
Any plastic or adhesive functional layer
Capsule rim coating where it contributes to the seal interface
For the EU market, the complete food-contact article should be assessed under the applicable general food-contact framework and Good Manufacturing Practice requirements.
Where plastic layers are included in the structure, the applicable provisions of Regulation (EU) No 10/2011 should be reviewed for those plastic components and their intended use.
For U.S. food-contact applications, coating, polymer, adhesive, ink and other functional components should have an appropriate regulatory basis for the intended food type, temperature and use conditions.
Where SFDA, SASO or another destination-market document is required, the buyer should identify the exact regulatory, conformity or submission requirement so the applicable documentation can be confirmed.
RoHS is not a food-contact standard. If RoHS documentation is requested as part of a customer restricted-substance program, it should be treated separately from food-contact compliance.
Lacquered aluminum lidding can be developed for compatible aluminum coffee-capsule rims using an HSL matched to the capsule's rim coating and sealing process.
PP capsules require a heat-seal system designed for the actual PP resin and rim surface. Representative empty capsules should be supplied for seal-development trials where possible.
PBT or other specialty plastic capsules require application-specific lacquer validation because sealing response varies between polymer families and molded surfaces.
The same aluminum gauge should not automatically be assigned to every beverage format. Coffee fill weight, water volume, brewing sequence and capsule-system geometry should be considered during qualification.
Lacquered aluminum lidding can also be evaluated for compatible tea, cocoa and other single-serve beverage capsules, but product-specific aroma, powder, sealing and brewing requirements should be reviewed.
Supply Format | Purchasing Consideration |
|---|---|
Roll Stock | Specify roll width, core ID, OD, winding direction, artwork repeat and die-cutting layout |
Printed Roll Stock | Coordinate print registration, eye marks, repeat length and punching position |
Embossed Roll Stock | Define embossing pattern, apparent caliper and subsequent punching requirements |
Die-Cut Lids | Confirm diameter, flange shape, tabs, embossing, artwork and packing requirements where finished-lid supply is included |
Stable high-speed production requires more than nominal foil thickness. Slitting quality, winding, curl, coating uniformity, coefficient of friction, print registration and heat-seal behavior can all affect line efficiency.
The current product information references ±3% gauge control. Where this is critical to converting performance, measurement method and sampling frequency should be agreed.
Roll-stock edges should be controlled for burr, damage and width variation to support stable feeding into printing, embossing or punching equipment.
Excessive curl can interfere with die cutting, lid handling and sealing. Curl requirements can therefore be included in the converter's material specification.
Coated surfaces should remain separable during storage and converting under the specified temperature, pressure and roll-storage conditions.
Inspection Item | What to Confirm |
|---|---|
Alloy and Temper | AA8011-O or approved project-specific material |
Foil Gauge | 30–40μm nominal gauge and agreed tolerance |
Heat-Seal Lacquer | Coating weight, chemistry and compatible capsule rim |
Seal Strength | Actual capsule substrate, sealing conditions and minimum result |
Seal Window | Temperature, pressure, dwell time and line speed |
Pinhole / Surface Defects | Inspection method and acceptance level |
Print Adhesion | Ink system, rub resistance and visual acceptance |
Residual Solvent | Required analytical method and maximum limits |
Odor / Organoleptic Performance | Agreed sensory or analytical evaluation where required |
Embossing | Pattern, orientation, depth and visual uniformity |
Slit Width | Width tolerance, burr and edge quality |
Roll Quality | Core, OD, winding, telescoping, splice and roll traceability |
Where recyclability is part of the coffee-capsule design program, the lid should use only the amount of lacquer, ink and additional polymer required to achieve the necessary sealing, protection and branding functions.
The recyclability of a finished coffee capsule should be evaluated as a complete capsule-and-lid system under the relevant local collection and recycling infrastructure rather than from the aluminum lid alone.
Finished foil rolls should be protected from moisture, dust, mechanical damage, high temperature and contamination during storage and transportation.
Roll packaging can include sealed protective wrapping, end protection, cartons and pallets according to width, OD and customer requirements.
Printed or lacquered foil should be stored according to the applicable coating, ink and shelf-life recommendations so blocking, odor, adhesion or print-performance changes are minimized before use.
To receive an accurate coffee-capsule lidding proposal, please provide as much of the following information as possible:
Capsule material: aluminum, PP, PBT or other substrate
Capsule manufacturer or exact capsule sample
Capsule rim diameter and geometry
Brewing-machine system or compatible capsule platform
Required AA8011-O or alternative foil specification
Foil thickness: 30μm, 35μm, 40μm or other qualified gauge
Gauge tolerance requirement
Flat or embossed lid
Embossing pattern and depth
Required heat-seal lacquer chemistry or existing reference
Target seal-strength requirement
Sealing temperature
Sealing pressure
Dwell time
Packaging-line speed
Coffee fill weight
Coffee grind and rim-contamination condition, if relevant
Required puncture or opening behavior
Brewing-trial acceptance criteria
Print primer requirement
Gravure or flexographic printing
Number of printing colors
Artwork, repeat and registration requirements
Residual-solvent requirements
Odor or organoleptic requirements
Pinhole acceptance level
Roll stock or die-cut lid requirement
Finished roll width and tolerance
Core inner diameter
Maximum roll outside diameter
Maximum or preferred roll weight
Winding direction
Splice limits
Destination food-contact market
Required declaration, migration or food-contact documents
Order quantity
Destination country or delivery port
Send Your Coffee Capsule Lid Specifications
It is aluminum lidding foil coated with an exterior print or protective surface and an interior heat-seal lacquer designed to bond to a compatible coffee-capsule rim.
AA8011-O provides a soft, ductile aluminum substrate suitable for compatible embossing, die cutting and controlled lid-opening behavior. Final suitability depends on the capsule and brewing system.
No. The required temper depends on lid geometry, thickness, embossing and the brewing-system opening mechanism. The actual capsule should be used for qualification.
The current product specification uses 30–40μm aluminum foil.
Neither gauge is universally better. Thicker foil generally provides greater stiffness, while thinner foil can open with less force. The appropriate gauge should be established through actual capsule and brewing trials.
Yes, a suitable heat-seal lacquer can be developed for compatible coated aluminum capsule rims. Rim coating and sealing conditions should be confirmed.
The aluminum substrate may be similar, but the HSL should be selected specifically for the PP rim. A lacquer optimized for an aluminum capsule should not automatically be assumed suitable for PP.
PBT-compatible lacquer systems can be evaluated according to the exact molded capsule and its surface. Representative capsule samples are recommended.
The current product information lists ≥8.0N/15mm to aluminum or PP as a published reference. Actual acceptance should define the substrate and complete test conditions.
The current product information references approximately 180–230°C depending on substrate, line speed and dwell time. The final production window should be established on the actual sealing machine.
No. The seal must remain secure during storage and brewing but still allow the lid to behave correctly during extraction. Excessive or insufficient bond strength can both cause problems.
Some lidding systems can provide useful contamination tolerance, but seal integrity should be validated with realistic levels of coffee particles on the actual production line.
An intact aluminum layer provides extremely strong barrier performance, but total aroma retention also depends on capsule-body barrier, seal integrity, residual oxygen, storage conditions and package damage.
A continuous aluminum layer has extremely low gas transmission through the intact metal, but a universal zero value should not be used without a defined test method and complete package construction.
Yes. Embossing can be developed according to the required texture, logo effect and lid-processing method. Brewing performance should be checked after embossing because the pattern changes foil geometry.
Yes. Compatible print primer can support gravure or flexographic printing for logos, product identification and decorative graphics.
Where ink is intended for direct food contact, the ink system must be specifically suitable and documented for that intended use. Standard exterior printing should not automatically be treated as direct-food-contact printing.
Lacquers and inks should be adequately cured and controlled for residual solvents. Where coffee flavor sensitivity is critical, organoleptic or analytical acceptance requirements can be included in the specification.
Not by itself. EU 10/2011 applies specifically to relevant plastic food-contact materials and layers. The complete food-contact lid should also be assessed under the applicable general food-contact and GMP requirements.
No. RoHS is a restricted-substance requirement for electrical and electronic equipment. It can be supplied where requested by a customer program, but it does not replace food-contact compliance.
It can be evaluated for compatible tea, cocoa and other beverage pods, but barrier, seal, opening and brewing requirements should be validated for the actual product.
Yes. Roll-stock specifications can include width, core ID, roll OD, winding direction, print repeat, embossing, splice limits and other converting requirements.
Finished lid supply can be discussed where applicable. Lid diameter, lip or tab geometry, embossing, artwork and packing format should be provided during quotation.
Sample availability can be confirmed according to foil thickness, capsule rim, HSL system, printing and embossing. Sealing and filled-capsule brewing trials are recommended before commercial approval.
Please provide capsule material and sample, rim dimensions, brewing system, foil thickness, seal-strength target, sealing conditions, printing, embossing, roll or lid format, food-contact market, quantity and destination.
