Aluminum PE Paperboard PE Moisture Barrier Sheet

Dingang aluminum/PE/carton/PE sheet combines 1235 or 8011 aluminum foil, PE bonding layers and rigid paperboard for moisture-barrier packaging, with custom thickness, width, sealing and export supply.

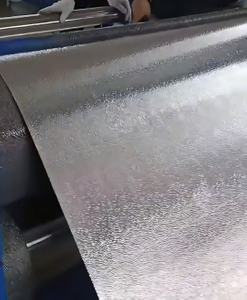

  • Aluminum/PE/Carton/PE Sheet

  • DINGANG - APCPS

PE Layer Thickness (Outer/Inner):
Aluminum Alloy:
Aluminum Layer Thickness:
Total Thickness:
Availability:
Quantity:

Moisture Barrier Aluminum PE Carton PE Sheet for Protective Packaging

Aluminum / PE / paperboard / PE sheet is a multilayer barrier material designed for protective packaging where moisture resistance, light protection, structural rigidity and heat-sealable polymer surfaces are required.

The current construction combines 1235 or 8011 aluminum foil, polyethylene bonding or sealing layers and a paperboard core. Total laminate thickness can be customized within the listed 200–800 μm range according to barrier, rigidity, converting and packaging requirements.

The aluminum layer provides the principal metallic barrier to light, gases and moisture vapor when it remains intact. PE layers contribute moisture resistance, bonding and heat-sealing functions, while the paperboard layer provides stiffness, dimensional support and a printable substrate where required.

For metal components and industrial export packaging, this laminate can form part of a corrosion-protection system. Long-term anti-corrosion performance should be designed around the complete sealed package and can require desiccants, humidity control or VCI materials according to storage and transport conditions.

aluminum PE paperboard PE moisture barrier laminated sheet

Request Aluminum PE Paperboard Sheet Price

Aluminum / PE / Paperboard / PE Layer Structure

Layer

Material

Main Function

1. Aluminum Layer

1235 / 8011 aluminum foil

Metallic barrier against light, oxygen, moisture vapor, odors and external contamination when the foil remains intact

2. PE Layer

LDPE / LLDPE / EVA or another agreed compatible resin

Bonding, moisture resistance and laminate construction

3. Paperboard Core

Coated paperboard according to application

Rigidity, dimensional support, handling strength and printable surface where required

4. Inner PE Layer

LDPE / LLDPE / EVA or another compatible polymer

Heat-sealing, moisture resistance and protection of the paperboard structure

Layer order, polymer grade and individual layer thickness should be confirmed for the actual package. A laminate intended for dry industrial equipment, food packaging or another specialized application can require different materials and acceptance criteria.

Technical Specifications

The following values are existing product references. Final contractual specifications should identify the exact layer structure, measurement method, test conditions and acceptance limits.

Parameter

Typical Range / Reference

Purchasing Note

Total Thickness

200–800 μm

Combined laminate thickness; final value depends on all individual layers

Aluminum Layer

6–50 μm

Specify nominal foil gauge and allowable tolerance

PE Layer Thickness

20–60 μm each

Existing outer/inner layer reference; final thickness depends on bonding and sealing requirements

Paperboard Thickness

100–600 μm

Selected according to stiffness, folding, converting and package geometry

Paperboard Grammage

Approximately 200–400 g/m²

Existing product reference; confirm paper grade and grammage with order

Aluminum Alloy

1235 / 8011

Select according to foil gauge, conversion and approved laminate structure

PE Type

LDPE / LLDPE / EVA

Polymer grade should be matched to bonding, sealing, product-contact and service requirements

Tensile Strength

15–30 MPa reference

Existing composite reference; test method, specimen direction and layer structure should be agreed before using this as an acceptance criterion

Elongation at Break

200–400% reference

Existing reference; confirm whether requirement applies to PE layer or completed laminate and define test method

Oxygen Transmission Rate

<0.5 cm³/m²·day·atm at 23°C, 50% RH

Existing reference value; final OTR should be confirmed for the specified laminate and test method

Water Vapor Transmission Rate

<1.0 g/m²·day at 38°C, 90% RH

Existing reference value; joints, pinholes and converting damage can affect finished-package performance

Heat-Seal Temperature

120–180°C reference

Depends on PE grade, seal pressure, dwell time and mating surface

Printing

Flexographic / gravure / compatible digital processes

Printing surface, treatment, ink and curing system should be specified

Product-Contact Documentation

Documentation for applicable materials can be discussed

FDA or EU suitability should be confirmed for the exact PE, adhesive, ink, paperboard and finished construction rather than assumed from the product name

Why Aluminum Foil Is Used as the Barrier Layer

Moisture Vapor Protection

An intact aluminum layer provides very low moisture-vapor transmission and can significantly improve the barrier of paperboard-based packaging compared with uncoated paperboard.

Oxygen and Gas Barrier

Continuous aluminum provides a strong gas barrier. Actual package performance still depends on foil integrity, folds, cut edges, seams and sealing.

Light Protection

Aluminum is opaque and blocks direct light transmission through the metallic layer, which is useful for light-sensitive packaged products and industrial components.

Odor and Aroma Barrier

The foil layer can limit odor and aroma transfer through an intact laminate. The complete closed package should be evaluated where odor retention is critical.

Role of the PE Layers

Bonding Between Layers

Polyethylene can serve as a bonding or extrusion-lamination layer between aluminum and paperboard when the resin, processing temperature and surface treatment are compatible.

Moisture Protection for Paperboard

PE can reduce direct moisture exposure to the paperboard and help preserve stiffness during storage and use within the intended environmental conditions.

Heat-Sealing Function

A suitable PE layer can provide heat-sealing functionality. Seal temperature, dwell time, pressure and seal strength should be established for the exact polymer grade and package design.

Product-Contact Layer

Where the inner PE surface directly contacts food, pharmaceutical products or another sensitive product, the exact resin and complete material system should have the documentation required for the intended use and destination market.

Paperboard Core for Rigidity and Converting

The paperboard core gives the laminate significantly greater stiffness and handling stability than a flexible foil/polymer laminate alone.

Stiffness

Paperboard thickness and grammage can be adjusted according to the required package rigidity, folding characteristics and converting method.

Printing Surface

Where the paperboard surface is exposed for printing, board coating, surface smoothness and ink system should be specified according to the selected printing process.

Folding and Creasing

If the sheet will be die-cut, folded or creased, representative material should be tested because deep folding can locally stress the aluminum layer and alter barrier performance.

Discuss Your Layer Structure and Thickness

Moisture-Proof Packaging for Industrial Products

The laminate can be used as a moisture-barrier sheet, liner or converted packaging component for industrial products that require greater environmental protection than conventional paperboard alone.

Metal Components

Metal parts, bearings, tools, assemblies and other moisture-sensitive components can use aluminum-barrier packaging as part of a controlled export or storage package.

Electronics and Electrical Components

Moisture-sensitive electronics can benefit from high-barrier packaging, but electrostatic-discharge requirements should be specified separately where applicable.

Machinery and Spare Parts

The material can be converted into liners, sheets or other protective packaging components for equipment and spare parts during storage or transportation.

How the Laminate Supports Corrosion Protection

Corrosion requires suitable environmental conditions, often including moisture and oxygen. An aluminum barrier laminate can reduce transmission of these external factors when it forms part of a properly sealed package.

Barrier Protection Is Passive

Standard Aluminum / PE / Paperboard / PE laminate does not automatically provide active corrosion inhibition. Its principal role is limiting environmental ingress through the packaging material.

Use Desiccants Where Required

For export or long-term storage, desiccants can be placed inside a properly sealed barrier package to absorb residual moisture and moisture introduced during packing.

VCI Requires a Dedicated Specification

Where active volatile corrosion inhibition is required, specify a compatible VCI component or VCI-containing inner layer separately. Standard PE should not automatically be described as VCI material.

Seal Integrity Is Critical

Open seams, unsealed edges, punctures and damaged folds can bypass the barrier layer. Package construction and closure quality should therefore be validated with the actual packed product.

Selected Food and Consumer Packaging Applications

The laminate can also be evaluated for selected food, dry-product and consumer packaging where paperboard rigidity, aluminum barrier performance and a polymer sealing layer are required.

Dry Food Packaging

Potential applications can include compatible dry foods, powders, coffee, tea and nutritional products where the finished package has been qualified for the contents and required shelf life.

Pet Food and Consumer Products

Selected dry or semi-moist products can use multilayer paperboard packaging where the complete laminate provides the necessary moisture, odor, grease and sealing performance.

Aseptic Applications Require Separate Validation

Aseptic liquid-food cartons use carefully engineered multilayer constructions together with dedicated sterilization, forming, filling and sealing processes. The four-layer specification on this page should not be assumed equivalent to an approved aseptic-carton material without separate qualification.

Medical and Pharmaceutical Packaging

Healthcare applications require product-specific barrier, cleanliness, sterilization and regulatory requirements. Sterile-barrier or pharmaceutical suitability must be established for the exact finished packaging system.

Manufacturing Process

1. Material Preparation

Aluminum foil, paperboard, polyethylene resin and any required adhesive are selected according to the agreed laminate construction. Surface treatment can be used where required to improve bonding.

2. Extrusion or Adhesive Lamination

For suitable constructions, molten PE can be extrusion-laminated between layers. Alternative structures can use an adhesive-lamination process according to the specified polymer, board and aluminum surfaces.

3. Cooling and Bond Stabilization

The combined web is cooled and stabilized according to the lamination process so the layers maintain dimensional consistency and the required bond.

4. Slitting, Sheeting or Rewinding

The laminate can be converted to the required width, roll configuration or flat-sheet dimensions according to downstream packaging equipment.

5. Inspection

Inspection can include appearance, total thickness, individual layer dimensions where applicable, bond strength, dimensional tolerance, sealing performance and barrier testing according to the agreed order specification.

Quality Control Reference

The existing product information includes the following quality references. Buyers should confirm the applicable test method, conditioning, specimen direction and exact laminate construction before these values are adopted as contractual acceptance criteria.

Inspection Item

Existing Reference

Recommended Order Clarification

Appearance

No wrinkles, bubbles, pinholes or delamination; uniform thickness

Define allowable cosmetic defects, pinhole inspection method and sampling level

Layer Bonding Strength

≥ 8 N/15 mm, no obvious peeling

Confirm which interface is tested, peel angle, test speed and conditioning period

Heat-Sealing Integrity

No air leakage or cracking under pressure test

Define seal temperature, pressure, dwell time and leakage-test method

Barrier Properties

OTR ≤ 0.3 cm³/(m²·d·atm); WVTR ≤ 0.8 g/(m²·d)

Existing QC reference; confirm temperature, humidity, test standard and exact laminate before contractual use

Odor & Residue

No abnormal odor; no harmful solvent residue

Define relevant solvent-residue or sensory test where required by the application

Dimensional Tolerance

Thickness ±5%; width ±1 mm

Confirm whether thickness tolerance applies to total laminate and define measurement points

Hygiene / Product Contact

Existing information references FDA, EU and applicable national requirements

Confirm exact resin, adhesive, ink, paperboard, intended contact condition and supporting documentation for the destination market

Key Parameters to Confirm Before Ordering

Total Laminate Thickness

Specify the required finished thickness within the available range and identify the allowable tolerance.

Aluminum Foil Gauge

State the required aluminum thickness separately from total laminate thickness because foil gauge directly influences material cost, handling and barrier robustness.

Paperboard Grade and Grammage

Provide the required board thickness or grammage together with stiffness, printing and folding requirements.

PE Resin Type

State LDPE, LLDPE, EVA or another approved polymer where already defined, together with heat-sealing and product-contact requirements.

Width or Sheet Dimensions

Provide finished roll width or flat-sheet length and width together with dimensional tolerance.

Bond Strength

If delamination resistance is critical, define the relevant interface, test method and minimum peel strength.

Barrier Requirements

For moisture- or oxygen-sensitive products, state required OTR and WVTR together with the test temperature, relative humidity and standard.

Heat-Sealing Conditions

Provide the mating surface, packaging machine, temperature range, pressure and dwell time where sealing performance is critical.

Corrosion-Protection Method

For metal packaging, state storage duration, transport route, climate, metal type and whether desiccant, vacuum packing, humidity indicator or VCI protection will be used.

Send Your Laminate Structure for Review

Roll and Sheet Supply

The composite material can be slit, rewound or sheeted according to downstream converting requirements. Final availability depends on laminate thickness, paperboard stiffness and production configuration.

Roll Supply

For roll material, provide width, core ID, maximum roll diameter, target roll weight and unwind direction.

Flat Sheets

For flat-sheet supply, specify length, width, squareness, stacking and packaging requirements.

Die Cutting and Folding

Where customers will convert the material into cartons, liners or formed components, provide the intended cutting, creasing and folding process so representative material can be evaluated.

Packaging, Storage and Handling

Moisture-Protected Export Packing

Finished rolls or sheets should be protected from water, humidity, edge impact and contamination during export shipment according to the dimensions and transport method.

Dry Storage

Store the laminate indoors in a dry environment and protect exposed paperboard edges from direct water contact and condensation.

Temperature Conditioning

After transport through significantly different temperatures, allow material to condition appropriately before opening moisture-protective packaging to reduce condensation risk.

Information Required for a Quotation

For an accurate quotation, please provide the end application, complete layer structure if known, total thickness, aluminum alloy and foil thickness, paperboard thickness or grammage, PE grade and layer thickness, finished width or sheet dimensions, roll configuration, barrier requirements, bond-strength requirement, heat-sealing conditions, printing requirements, corrosion-protection method where applicable, order quantity, required documentation, packing requirement and destination.

Get an Aluminum PE Carton PE Sheet Quote

Frequently Asked Questions

What is Aluminum / PE / Carton / PE sheet?

It is a multilayer composite combining aluminum foil, polyethylene and paperboard to provide barrier protection, stiffness and sealing functionality in one laminated material.

What is the main purpose of the aluminum layer?

The aluminum layer provides the principal barrier against light, moisture vapor, gases and odors when it remains continuous and undamaged.

What is the function of the paperboard?

Paperboard provides stiffness, dimensional support and a suitable substrate for converting or printing depending on the package design.

Why are PE layers used?

PE layers can provide bonding, moisture protection and heat-sealing functionality according to the resin grade and laminate construction.

Which aluminum alloys are available?

The current product specification lists 1235 and 8011 aluminum foil.

What is the total thickness range?

The existing product range is 200–800 μm total laminate thickness.

What aluminum foil thickness is available?

The listed aluminum layer range is 6–50 μm. Final availability should be confirmed together with the complete laminate structure.

What paperboard thickness is available?

The existing specification lists 100–600 μm paperboard and approximately 200–400 g/m² as a grammage reference.

Does this material prevent rust?

It can reduce moisture and oxygen ingress as part of a properly sealed corrosion-protection package, but the standard laminate is a passive barrier rather than an active rust inhibitor.

Should desiccant be used with the laminate?

Desiccants can be appropriate for long-term storage, ocean freight and moisture-sensitive metal products because they absorb residual moisture inside the sealed package.

Does the sheet contain VCI?

Standard PE should not be assumed to contain VCI. If active corrosion inhibition is required, a dedicated VCI specification should be identified with the inquiry.

Is the laminate completely waterproof?

The aluminum and PE layers provide strong moisture resistance, but finished-package protection also depends on cut edges, folds, punctures, joints and seals. The complete package should be tested where water resistance is critical.

Can the material be heat sealed?

Suitable PE layers can provide heat-sealing functionality. The existing temperature reference is 120–180°C, but actual sealing conditions depend on polymer grade, pressure, dwell time and equipment.

Can the material be printed?

Yes, compatible structures can be prepared for flexographic, gravure or other printing processes. Printing surface, treatment and ink requirements should be stated before production.

Can it be supplied in rolls and sheets?

The material can be slit and rewound or cut into sheets according to laminate thickness, stiffness and production capability.

Can width be customized?

Yes. Provide the finished roll width or sheet dimensions and required tolerances with the inquiry.

Is the laminate suitable for food contact?

Food-contact suitability depends on the exact PE grade, adhesive, ink, paperboard, layer orientation and intended contact conditions. Required documentation should be confirmed for the exact supplied construction.

Does 1235 or 8011 alloy automatically make the package food grade?

No. Alloy designation alone does not establish food-contact compliance for the finished multilayer material.

Can it be used for aseptic beverage cartons?

Aseptic carton packaging requires a dedicated multilayer structure, sterilization compatibility and qualified filling and sealing process. The standard four-layer sheet on this page should not automatically be treated as aseptic packaging material.

What does OTR measure?

OTR measures oxygen transmission through a material under defined test conditions. Temperature, relative humidity, specimen condition and test method should be stated with the result.

What does WVTR measure?

WVTR measures water-vapor transmission under specified temperature and humidity conditions. Finished-package moisture protection also depends on edges, seams and sealing.

Why is bond strength important?

Insufficient layer adhesion can lead to delamination during converting, folding, heat sealing, storage or transportation. The relevant interface and test method should therefore be defined.

Can the sheet be folded or die cut?

Yes, depending on thickness and board structure. Representative material should be tested because aggressive creasing or folding can damage the aluminum barrier layer.

Is the laminate recyclable?

The laminate contains paperboard, aluminum and polymer layers. Actual collection and material recovery depend on local infrastructure and whether facilities are equipped to process multilayer composite packaging.

What should be tested for industrial anti-corrosion packaging?

Depending on the project, testing can include barrier performance, package seal integrity, bond strength, puncture resistance, storage simulation and corrosion testing with the actual metal component and protection system.

What information is required for an accurate quotation?

Please provide the application, total thickness, aluminum alloy and gauge, paperboard thickness or grammage, PE grade and layer thickness, roll or sheet dimensions, sealing requirements, barrier target, bond-strength requirement, printing or surface requirements, corrosion-protection method where applicable, quantity, technical documentation and destination.

Dingang aluminum PE paperboard PE laminated sheet contact information

Request a Moisture Barrier Laminate Quote

Previous:
Next:

Product Category

Related Products

Consult Us To Get Your Customized Aluminum Solution

We help you specify and source the coated aluminum you need, on time and within budget.

Products

Application

Quick links

Follow Us

Contact Us

    joey@cnchangsong.com
    +86-18602595888
   Building 2, Zhixing Business Plaza, No.25 North Street, Zhonglou District, Changzhou City, Jiangsu Province, China
    Chaoyang road, Konggang economic development area, Lianshui, Huai'an city, Jiangsu,China
© COPYRIGHT 2026 CHANGZHOU DINGANG METAL MATERIAL CO., LTD. ALL RIGHTS RESERVED.
