PVDF Coated Aluminum Coil | High Strength-to-Weight Substrate for Humanoid Robot Exoskeletons

Next-generation bipedal humanoid robots, industrial power exoskeletons, and autonomous service mechatronics require ultra-lightweight, highly durable structural cladding and protective armors. Every additional gram of dead weight on a robot’s articulated limbs directly increases actuator torque demands, overheats joint motors, and severely drains onboard battery energy reserves. Traditional post-assembly spray painting creates uneven coating thicknesses, adds unnecessary dead weight, and risks micro-flaking inside high-precision robotic joints and actuator housings.

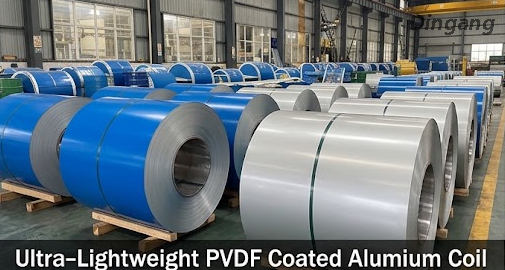

This specialized Ultra-Lightweight PVDF Coated Aluminum Coil is engineered as a high strength-to-weight structural skin and protective shell for humanoid robot exoskeletons, robotic limb fairings, and joint covers. Built on high-tensile, lightweight automotive and aerospace-grade aluminum alloys (such as AA5052-H32, AA5754, or AA3004), this substrate features a tough 70% Kynar 500® / Hylar 5000® PVDF fluoropolymer coating. The advanced coating formulation provides exceptional impact absorption, chemical and oil resistance, and superior draw-stamping flexibility, allowing complex, sleek robotic body contours to be stamped directly with uniform, micrometer-precise paint protection.

Product Advantages

Humanoid robots and industrial exoskeletons require structural skins that deliver extreme lightness without sacrificing mechanical toughness. Replacing heavy post-painted steel stampings or expensive composite parts with our ultra-lightweight PVDF pre-painted aluminum coil delivers critical advantages across design, manufacturing, and operation.

Key Performance Advantages for Advanced Robotics

65% Mass Reduction vs. Steel: High strength-to-weight ratio slashes moving inertia on robotic arms, legs, and torso frames, enabling faster dynamic responses and lower power consumption.

Precision Stamping Formability (≤ 0.5T): Advanced elastic resin system stretches seamlessly with the aluminum substrate during deep press stamping, radius draws, and tight hem bending without flaking or micro-cracking.

Aggressive Chemical & Hydraulic Oil Resistance: Inert PVDF topcoat resists degradation from synthetic gear lubricants, hydraulic fluids, grease, isopropyl alcohol (IPA), and industrial cleaning agents.

Superior Scratch & Impact Shielding: Formulated with a tough cross-linked polymer backbone (Pencil Hardness ≤ 2H) that resists surface scuffs, scratches, and impact chips during high-velocity robotic movements.

Zero Edge Corrosion & Particle Shedding: Non-outgassing, rust-proof aluminum base ensures zero red rust at trimmed edges or fastener holes, preventing particle contamination inside cleanroom or assembly environments.

Complete Product Specifications

Quality Control & Production Excellence

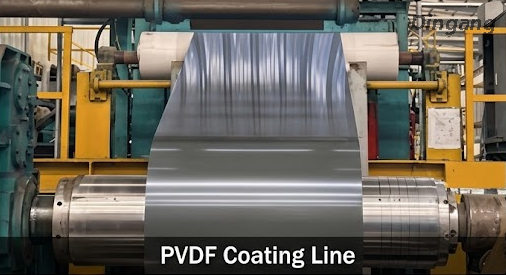

Our continuous coil coating lines execute strict draw-forming simulations, chemical immersion testing, and thickness audits on every production batch to guarantee flawless performance on automated robotics stamping lines.

B2B Sourcing & Customization Services

To support robotics OEMs, precision stamping suppliers, and specialized mechatronics fabricators, we offer tailored manufacturing configurations:

Precision Slitting for High-Speed Stamping Lines

We provide precision inline slitting down to custom ribbon widths (from 100mm to 1500mm) maintained within tight tolerances (±0.10mm) to directly feed automated blanking presses and stamping tools.

Custom Futuristic Colors & Finishes

Available in custom robotic aesthetics, including Cyber White, Matte Stealth Black, Titanium Grey Metallic, Anodized-Look Satin, and custom OEM brand colors with controlled sheen levels.

Heavy-Duty Sea Freight Packaging Protection

All export shipments feature core eye-to-sky or eye-to-wall configurations, heavy airtight vapor barriers packed with active desiccants, and rugged steel outer casings on fumigated wooden pallets to prevent transit damage.

Industrial Applications

This ultra-lightweight PVDF pre-painted aluminum coil is specified across five core robotics, exoskeleton, and advanced mechatronics applications:

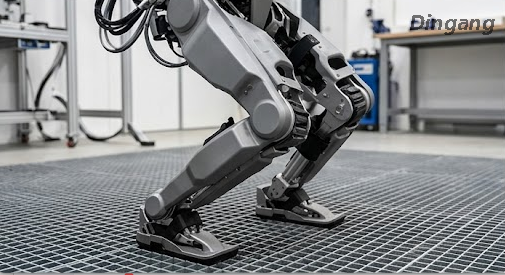

Humanoid Robot Bipedal Leg & Thigh Fairings

Dynamic leg movements demand minimal swinging mass to conserve energy. Stamping outer thigh, shin, and calf guards from our ultra-lightweight pre-coated aluminum coil reduces leg weight while providing a stylish, scratch-resistant outer armor.

Industrial Power Exoskeleton Frame Cladding

Wearable exoskeletons used in manufacturing and logistics must remain as light as possible for operator comfort. Utilizing our PVDF pre-coated aluminum for chest plates, arm guards, and backpack battery covers provides rugged impact protection without burdening the wearer.

Robotic Arm Actuator & Joint Protective Covers

Rotating joint actuators and harmonic drive gearboxes require lightweight covers to keep out dust, oil, and debris. Our pre-coated aluminum sheet provides a non-magnetic, EMI-shielding enclosure that withstands continuous vibration and lubricant exposure.

Autonomous Service & Delivery Robot Body Panels

Robots operating in public spaces, hospitals, and hotels require sleek, high-end aesthetics. Our low-gloss matte and satin PVDF finishes hide fingerprints, resist daily collisions with furniture or doors, and clean effortlessly with standard disinfectants.

Medical Rehabilitation & Prosthetic Shells

Robotic prosthetic limbs and medical rehabilitation devices require biocompatible, easy-to-sanitize exterior surfaces. Our smooth, non-porous PVDF coating resists skin oils, alcohol wipes, and moisture, maintaining a clean, professional finish over years of use.

FAQ

Q1:Why is PVDF pre-coated aluminum preferred over post-assembly spray painting for humanoid robot shells?

Pre-coated coil guarantees 100% uniform film thickness (20-28 μm) across every part, eliminating weight variations caused by uneven spray paint. It also eliminates paint shop bottlenecks and prevents paint flaking near sensitive actuators.

Q2:Can this pre-coated coil handle deep 3D press stamping and tight radius draws?

Yes. The 70% PVDF coating system achieves a T-bend rating of ≤ 0.5T-1T and 5B cross-hatch adhesion, stretching smoothly along with the aluminum substrate during deep press draws without flaking or crazing.

Q3:How does aluminum compare to carbon fiber composites for humanoid robot skins?

While carbon fiber is lightweight, it is expensive, prone to brittle cracking on impact, and difficult to recycle. PVDF pre-coated aluminum offers high impact ductility, lower production costs, 100% recyclability, and built-in electromagnetic (EMI) shielding.

Q4:How does the coating react to hydraulic fluids, gear oils, and cleaning solvents?

The cross-linked 70% PVDF resin is chemically inert. It withstands continuous exposure to synthetic gear oils, hydraulic fluids, isopropyl alcohol (IPA), and aggressive chemical cleaners without softening, staining, or swelling.

Q5:What gauge thickness tolerances are maintained during manufacturing?

Utilizing inline laser monitoring, we maintain gauge spectrums from 0.30mm to 1.50mm within tight tolerances of ±0.008mm, ensuring consistent feed and tool clearance in automated press dies.

Request a Humanoid Robotics Substrate Quote

Are you currently structuring technical submittals, designing bipedal humanoid robots, or sourcing ultra-lightweight pre-painted metal substrates for precision exoskeleton stamping? Send your target thickness, width, alloy grade, color code, and volume requirements to our technical sales desk for an engineering-grade quote and physical sample kit within 12 hours.
