High-Formability Satin Coated Aluminum Coil | Precision-Stamped Material for Electric Autonomous Shuttle Shells

Next-generation electric autonomous shuttles, driverless transit pods, and robo-taxis demand architectural-grade exterior aesthetics paired with high automotive structural efficiency. Exterior body shells must navigate compound curves, sharp perimeter reveals, and deep-drawn sensor housing recesses while projecting a modern, premium appearance. Standard gloss paint systems produce high glare that can interfere with optical LiDAR/camera calibration and highlight subtle surface imperfections, while standard post-assembly spray painting creates costly bottlenecks and uneven coating thickness on complex geometries.

This specialized High-Formability Satin Coated Aluminum Coil is engineered as a precision-stamped, glare-free exterior skin for electric autonomous shuttles and urban mobility pods. Built on ductile, automotive-grade aluminum alloys (such as AA5052-O/H32, AA3004, or AA5754), this substrate features a flexible satin-finish polyurethane/fluoropolymer topcoat (15% - 30% low-gloss spectrum). The coating formulation provides extreme elongation capabilities, permitting deep press drawing, stretch forming, and tight edge hemming without micro-cracking, gloss shifting, or paint delamination—ensuring seamless integration into automated automotive body stamping lines.

Product Advantages

Electric autonomous shuttles require exterior materials that support high-volume stamping while maintaining flawless surface aesthetics. Replacing post-painted composite parts or heavy steel stampings with our high-formability satin pre-painted aluminum coil provides critical manufacturing, structural, and aesthetic advantages.

Key Performance Advantages for Autonomous Transit Infrastructure

Superior Stamping Formability (≤ 0.5T): Specialized elastic resin chemistry stretches along with the aluminum substrate during deep stamping, radius draws, and hem bending without paint cracking, flaking, or die fouling.

Low-Glare Optical Compatibility (15-30% Gloss): Satin finish minimizes harsh light reflections, preventing optical distortion for shuttle-mounted LiDAR sensors, cameras, and proximity radars.

65% Weight Reduction vs. Steel: Lightweight structural aluminum base slashes vehicle curb weight, directly extending EV battery range and reducing tire and suspension wear.

Batch-to-Batch Color Uniformity (ΔE ≤ 0.5): Precision coil-coating technology eliminates shade variations between adjacent door, roof, and side panels during vehicle assembly.

Corrosion & Environmental Resilience: Guarantees zero red rust along trimmed edges or fastener holes, withstanding road salt spray, car wash detergents, and continuous UV exposure.

Complete Product Specifications

Quality Control & Production Excellence

Our continuous coil coating lines execute strict draw-forming simulations, spectrophotometer color matching, and environmental durability audits on every production lot to guarantee uncompromised performance on automotive assembly lines.

B2B Sourcing & Customization Services

To support automotive stamping suppliers, shuttle OEMs, and continuous panel fabricators, we offer tailored manufacturing options:

Precision Slitting & Blanking Line Supply

We provide precision inline slitting down to custom ribbon widths (from 100mm to 1500mm) maintained within tight tolerances ($\pm0.10\text{mm}$) to directly feed automated blanking presses and stamping lines.

Custom Low-Gloss Color Matching

Available in custom automotive satin shades, including Shuttle Pearl White (RAL 9016 Satin), Cyber Metallic Grey, Matte Graphite, and custom OEM brand colors with controlled sheen levels ($15\% - 30\%$).

Heavy-Duty Sea Freight Packaging Protection

All export shipments feature core eye-to-sky or eye-to-wall configurations, heavy airtight vapor barriers packed with active desiccants, and rugged steel outer casings on fumigated wooden pallets to prevent transit damage.

Industrial Applications

This high-formability satin pre-painted aluminum coil is specified across five core autonomous transport and electric vehicle body applications:

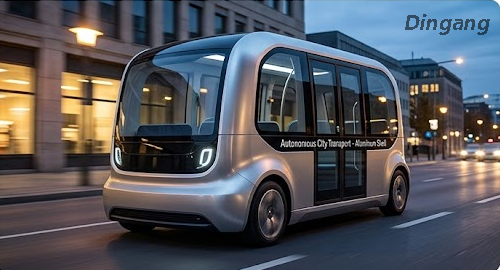

Driverless Electric Shuttle Outer Body Panels

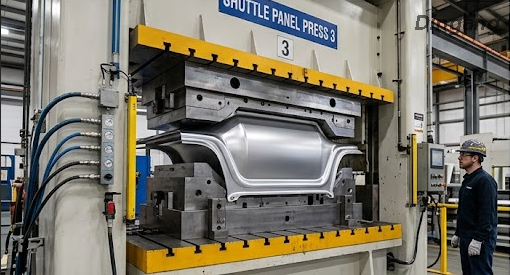

Autonomous urban shuttles feature sweeping curved side panels, door skins, and wheel arch covers. Stamping these components from our satin pre-coated aluminum coil eliminates post-assembly spray painting, providing a durable, uniform finish right off the press line.

Autonomous Robo-Taxi Door Skins & Fender Assemblies

Fleet-operated robo-taxis undergo constant urban use and frequent cleaning. Our high-formability coil allows precision press stamping of complex fender curves and hemmed door edges, offering high scratch resistance and anti-fingerprint properties.

Integrated Sensor Housing & Bumper Fairings

Exterior sensor pods housing radar, LiDAR, and camera units require non-reflective, dimensionally stable encasements. The low-glare satin coating prevents optical sensor interference while providing lightweight impact protection.

Autonomous Airport & Campus Transit Pods

Dedicated low-speed autonomous pods operating on airport aprons and corporate campuses demand a modern, high-tech appearance. Satin pre-coated aluminum panels resist harsh outdoor weathering, aircraft fuel splashes, and daily passenger wear.

Urban Air Mobility (UAM) Ground Support & Boarding Kiosks

Complementing autonomous shuttle fleets, passenger boarding pods and autonomous charging stations require matching exterior cladding. Our pre-coated coil provides a seamless aesthetic match across the entire autonomous transit ecosystem.

FAQ

Q1:Why is a satin finish preferred over high gloss for autonomous shuttle exterior shells?

A satin finish (15-30% gloss) reduces intense specular reflection, preventing optical glare from interfering with vehicle camera and LiDAR sensors. It also hides micro-defects and finger smudges while delivering a modern aesthetic.

Q2:Can this pre-coated coil handle deep press stamping and edge hemming without paint peeling?

Yes. The coating is formulated with a high-elongation resin matrix that achieves a T-bend rating of ≤ 0.5T and 5B cross-hatch adhesion, stretching seamlessly with the metal during deep press draws and tight hem bends.

Q3:How does pre-coated aluminum coil compare to post-assembly spray painting for vehicle bodies?

Pre-coated coil provides 100% uniform film thickness, eliminates solvent emissions in the vehicle assembly plant, reduces production cycle times, and lowers overall finishing costs by eliminating post-painting spray booths.

Q4:What aluminum alloys are recommended for precision-stamped vehicle panels?

AA5052-O/H32 and AA5754 are ideal for deep-draw stamping and structural strength, while AA3004/AA3105 offer excellent formability for roll-formed side skirts and roof panels.

Q5:How does the satin surface hold up against automated car washes and road debris?

The coating achieves a Pencil Hardness of ≥2H and high impact resistance, resisting brush scratches, road salt spray, chemical cleaners, and stone chipping under daily operational conditions.

Request an Autonomous Shuttle Body Substrate Quote

Are you currently structuring technical submittals, designing driverless transit pods, or sourcing high-formability pre-painted metal substrates for automotive stamping? Send your target thickness, width, alloy grade, color code, and volume requirements to our technical sales desk for an engineering-grade quote and physical sample kit within 12 hours.
