Thermal-Barrier Coated Aluminum Coil | Climate-Control Substrate for Autonomous Delivery Vehicle Bodies

Next-generation autonomous delivery vehicles (ADVs), unmanned ground delivery pods, and electric last-mile logistics fleets face demanding operational environments. Carrying temperature-sensitive cargo—such as chilled groceries, pharmaceuticals, prepared hot meals, and heat-sensitive electronics—these driverless vehicles operate under continuous solar radiation and extreme ambient heat. Standard painted metal enclosures absorb solar thermal radiation, creating intense heat buildup inside the cargo bay. This thermal gain forces auxiliary HVAC units and thermoelectric cooling systems to consume excessive battery power, drastically reducing vehicle driving range and operational uptime.

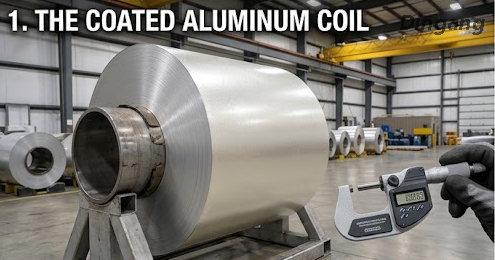

This specialized Thermal-Barrier Coated Aluminum Coil is engineered as a climate-control, weight-saving structural skin for autonomous delivery vehicle bodies, cargo pods, and mobile logistics lockers. Built on high-strength, lightweight automotive-grade aluminum alloys (such as AA3004, AA5052, or AA6061-format formable tempers), this substrate features a solar-reflective infrared (IR) barrier topcoat. The micro-ceramic thermal isolation layer reflects up to 85% of near-infrared (NIR) solar rays, preventing heat penetration into cargo compartments, minimizing internal temperature spikes, reducing HVAC battery drain, and extending the operational range of electric autonomous fleets.

Product Advantages

In electric last-mile delivery fleets, internal climate stability directly governs battery efficiency. Replacing standard painted steel or plain aluminum panels with our thermal-barrier pre-painted aluminum coil provides critical thermal, weight, and operational benefits.

Key Performance Advantages for Autonomous Logistics Fleets

High Infrared Solar Reflection (TSR ≥ 78-85%): Cool-pigment technology bounces near-infrared solar radiation away from vehicle body panels, keeping cargo bay interior surfaces up to 10-15°C cooler under direct sunlight.

Extended EV Battery Range: Minimizes active auxiliary cooling load, allowing electric autonomous vehicles to reallocate battery energy toward driving distance, increasing daily delivery stops per charge.

65% Weight Reduction vs. Steel: Lightweight aluminum substrate slashes gross vehicle weight (GVW), compensating for heavy onboard battery packs, LiDAR sensor arrays, and drive-by-wire actuators.

Deep Stamping & Drawing Flexibility (≤ 0.5T-1T): Formulated with an elastic polymer backbone that allows deep press stamping, curved corner molding, and tight hem folding without paint crazing or peeling.

Zero Edge Corrosion & Weathering Immunity: Ensures body panel edges, rivet holes, and door seam cuts remain completely free of red rust, surviving road salt spray, rain, and UV exposure.

Complete Product Specifications

Quality Control & Production Excellence

Our continuous coil coating lines execute strict solar reflectance spectrophotometry, environmental weathering, and deep draw adhesion testing on every production batch to guarantee uncompromised vehicle performance.

B2B Sourcing & Customization Services

To support vehicle OEMs, body stamping facilities, and continuous panel laminators, we offer tailored manufacturing options:

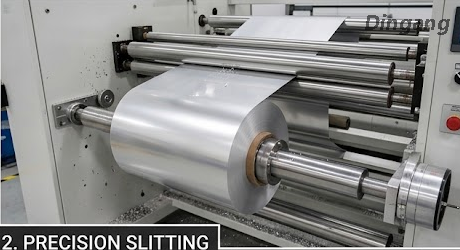

Precision Slitting for Stamping & Press Lines

We provide precision inline slitting down to custom ribbon widths (from 100mm to 1500mm) maintained within tight tolerances ($\pm0.10\text{mm}$) to directly feed automated automotive stamping presses and roll-forming lines.

Custom Fleet Branding & Tactical Shades

Full color matching available, including Fleet Bright White (high-SRI RAL 9016), Logistics Silver Metallic, Tactical Matte Black (IR-reflective cool dark pigments), and custom OEM fleet brand colors.

Heavy-Duty Sea Freight Packaging Protection

All export shipments feature core eye-to-sky or eye-to-wall configurations, heavy airtight vapor barriers packed with active desiccants, and rugged steel outer casings on fumigated wooden pallets to prevent transit damage.

Industrial Applications

This thermal-barrier pre-painted aluminum coil is specified across five core autonomous mobility and last-mile logistics applications:

Temperature-Controlled Autonomous Delivery Pods

Unmanned delivery vehicles handling perishable groceries, fresh meals, and pharmaceuticals require strict multi-zone temperature control. Stamping outer body shells from our heat-reflective coil blocks solar gain, allowing internal thermoelectric coolers to maintain target temperatures with minimal energy consumption.

Last-Mile Electric Delivery Van Cargo Enclosures

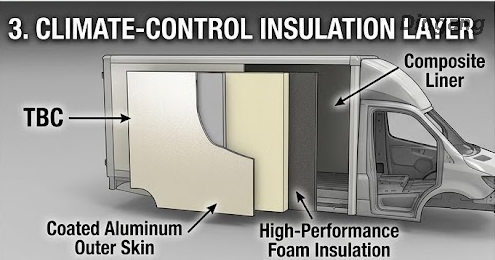

Electric delivery vans experience frequent door openings and prolonged sun exposure during urban delivery routes. Utilizing our thermal-barrier pre-coated aluminum for roof panels and side cladding reduces thermal absorption through the roof skin, easing the burden on the main HVAC compressor.

Automated Mobile Parcel Lockers & Kiosks

Self-driving mobile parcel lockers park in sun-exposed street locations for hours while customers retrieve packages. Enclosing these lockers in thermal-barrier aluminum panels prevents interior heat buildup, protecting sensitive electronics, batteries, and customer parcels from overheating.

Cold-Chain Unmanned Ground Vehicles (UGVs)

Specialized medical and vaccine delivery UGVs operate in harsh, high-heat environments. Our high-TSR pre-coated aluminum sheet acts as a passive primary thermal shield around vacuum-insulated panels (VIPs), maintaining cold-chain integrity during critical transport missions.

Autonomous Airport Cargo & Baggage Tugs

Airport tarmac delivery pods endure relentless sun radiation with zero shade. Body panels formed from our heat-reflective aluminum coil resist UV chalking, prevent cabin heat buildup, and resist chemical splash from de-icing fluids and aviation fuels.

FAQ

Q1:How does this thermal-barrier coil reduce heat inside autonomous vehicle bodies?

The topcoat is formulated with specialized inorganic infrared-reflective pigments. Instead of absorbing near-infrared light (which creates heat), the surface reflects up to 85% of solar radiation back into the atmosphere, lowering interior compartment surface temperatures.

Q2:Can dark vehicle colors (like black or dark grey) still provide thermal barrier benefits?

Yes. By using "cool-pigment" technology, dark colors can reflect near-infrared radiation while absorbing visible light, achieving significantly higher TSR and lower surface temperatures compared to standard dark paints.

Q3:Can this pre-coated coil withstand deep automotive stamping and corner draws?

Yes. The coating achieves a T-bend rating of ≤0.5T-1T and 5B cross-hatch adhesion, allowing deep press draws, stamped body contours, and tight hem bends without paint cracking, flaking, or delamination.

Q4:Why is aluminum preferred over fiberglass (FRP) or steel for autonomous vehicle bodies?

Aluminum is 65% lighter than steel, significantly improving EV driving range. Unlike fiberglass (FRP), aluminum is 100% recyclable, provides electromagnetic shielding (EMI protection) for onboard sensors, and offers superior impact crashworthiness.

Q5:How does the coating handle road salt, gravel impacts, and outdoor weathering?

Formulated for automotive outdoor environments, the coating passes 2500+ hours of ASTM B117 salt spray testing and features high chip resistance (Pencil Hardness ≥ 2H), resisting road salt corrosion and flying stone debris.

Request an Autonomous Vehicle Body Substrate Quote

Are you currently structuring technical submittals, designing autonomous delivery pods, or sourcing thermal-barrier metal substrates for vehicle manufacturing? Send your target thickness, width, alloy grade, color code, and volume requirements to our technical sales desk for an engineering-grade quote and physical sample kit within 12 hours.
