High-Reflectance Satin Finish Coated Aluminum Coil | Diffuse-Reflection Surface for Airport Canopies

Product Overview

Large-scale public transport hubs—such as international airport passenger terminals, departure canopies, high-speed rail concourses, and transit plazas—present unique architectural light-management challenges. Standard specular high-gloss metal roofs reflect direct sunlight, creating severe visual glare that threatens pilot visibility during aircraft taxiing/landing and blinds ground control operators, drivers, and surrounding commercial properties. Conversely, standard dark or low-reflectance matt finishes absorb thermal energy, exacerbating urban heat island effects and increasing facility cooling loads.

This specialized High-Reflectance Satin Finish Coated Aluminum Coil delivers an engineered balance of high solar reflectance and controlled light diffusion. Built on corrosion-resistant structural alloys (such as AA3003, AA3004, or AA5052), the coil is pre-treated and coated with an advanced 70% Kynar 500® / Hylar 5000® PVDF fluoropolymer matrix embedded with microscopic light-diffusing ceramic particles. The resulting textured satin finish scatters incoming direct solar rays evenly across a wide diffuse reflection angle—eliminating hazardous concentrated glare while maintaining exceptional total solar reflectance (TSR) and thermal performance.

Product Advantages

Aviation control authorities enforce strict FAA and EASA solar glare hazard assessments for all structures built within airport perimeters. Traditional smooth, painted, or polished metallic roofing sheets generate sharp specular reflections that can temporarily blind pilots during critical approach and landing phases. Our high-reflectance satin finish coated aluminum coil solves this safety hazard by utilizing microscopic surface-diffusing agents that fracture incoming light vectors into a omnidirectional matte bounce, while maintaining cool-roof thermal efficiency.

Key Performance Advantages for Transit & Public Infrastructure

Aviation-Approved Anti-Glare Diffuse Surface: Micro-textured satin finish keeps 60° specular gloss between 15% and 30%, satisfying airport visual safety and FAA ocular glare hazard guidelines.

High Cool-Roof Solar Reflectance (SRI≥78): High total solar reflectance reduces roof surface temperatures, lowering interior HVAC loads and suppressing urban heat accumulation.

70% Kynar PVDF Weathering Protection: Premium fluoropolymer formulation offers outstanding resistance to UV degradation, chalking, color fading, and jet fuel emissions (20+ year exterior service life).

Coastal Corrosion Immunity: Structural aluminum base combined with multi-stage pretreatment naturally resists pitting, edge rust, and salt-air corrosion common at coastal airports.

High Film Elasticity for Profile Forming: Retains a flexible ≤1T-1.5T bend rating, permitting double-lock standing seam zipping, curving, and deep profile roll-forming without micro-cracking.

Complete Product Specifications

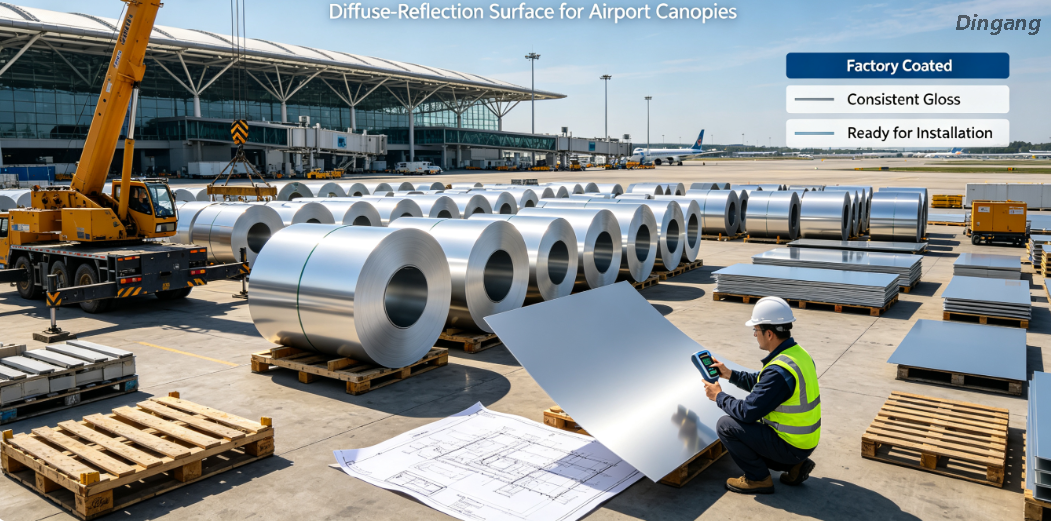

Quality Control & Production Excellence

Our advanced roller coating lines enforce strict optical gloss, film thickness, and mechanical testing across every coil lot to guarantee precise performance.

B2B Sourcing & Customization Services

To support large-scale architectural tenders and luxury commercial fit-out contracts, we provide specialized procurement configurations:

Custom Width Slitting for Standing Seam Systems

We offer precision inline slitting to supply ready-to-roll ribbon widths (such as 500mm, 600mm, 1000mm, or 1200mm) matching your portable standing seam roll-formers and panel machines on the job site.

Custom Architectural Color & Gloss Tuning

Full shade matching according to international architectural standards (RAL, NCS, or custom airport project samples) with gloss level customization from 15% to 30% to meet exact project glare specifications.

Heavy-Duty Sea Freight Packaging Protection

All shipments utilize core eye-to-sky or eye-to-wall configurations, heavy airtight vapor barriers packed with active desiccants, and rugged steel outer casings on reinforced wooden pallets to prevent transit corrosion or physical damage.

Industrial Applications

This high-reflectance satin PVDF aluminum coil is specified by aviation authorities, transit architects, and structural envelope contractors:

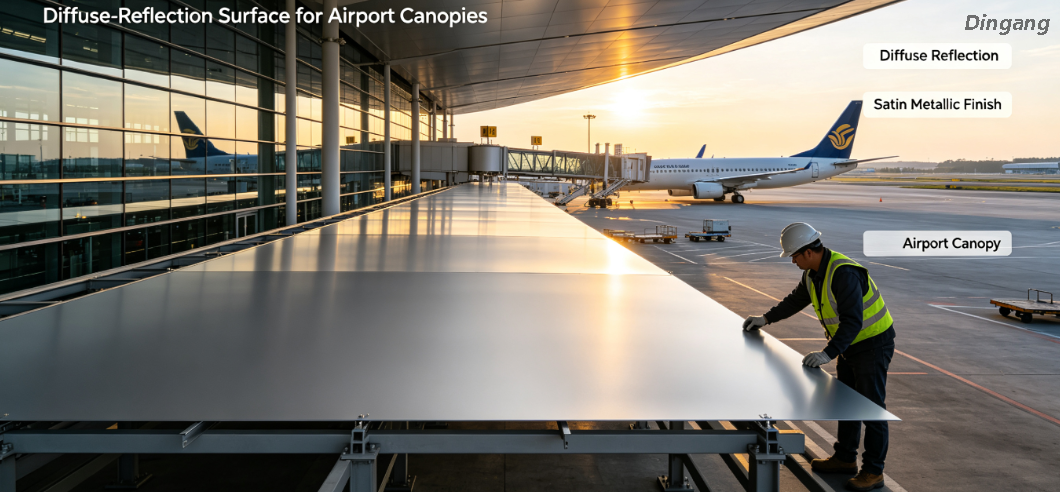

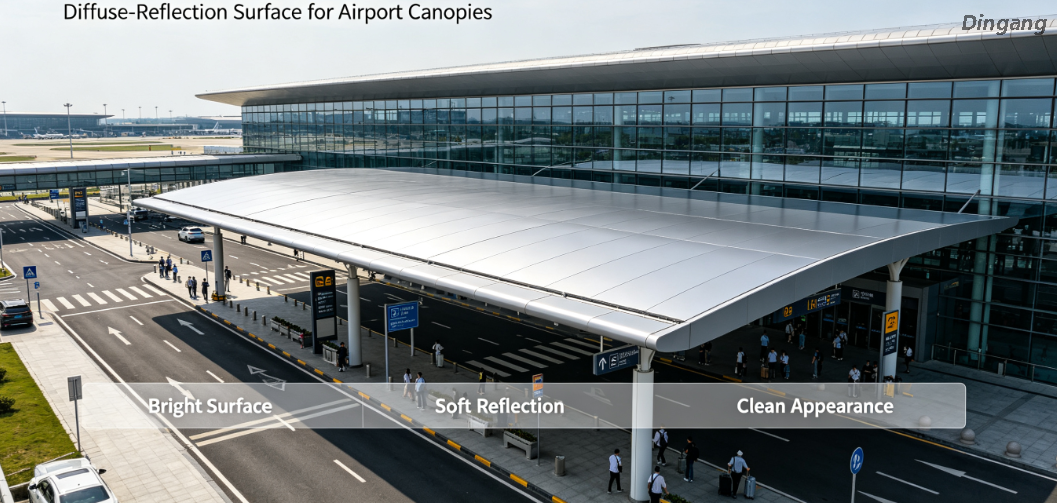

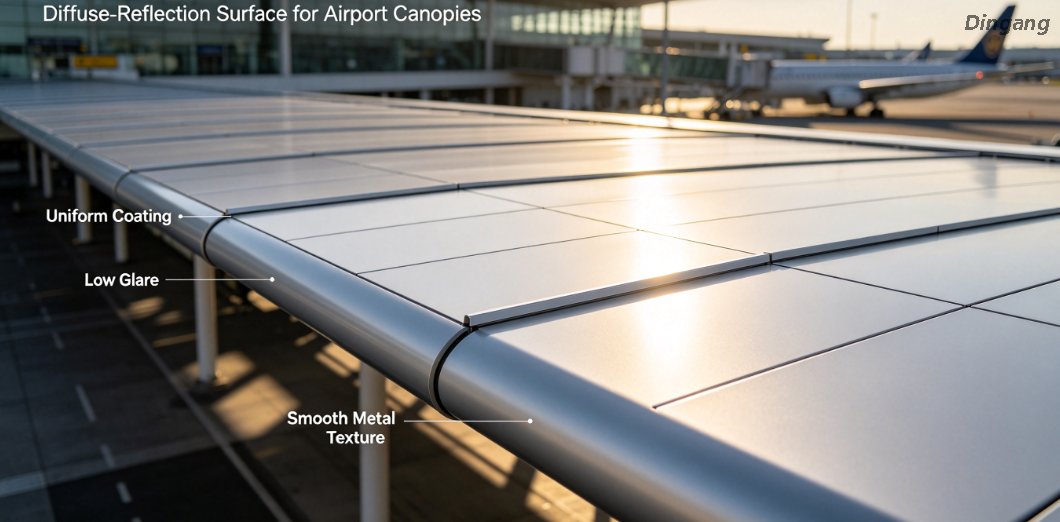

Airport Passenger Terminal Canopies & Roofs

Supplies wide-format, glare-free raw coil for standing seam roofing systems, drop-off concourse canopies, and terminal walkways.

Air Traffic Control (ATC) Perimeter Structures

The preferred anti-glare metal cladding substrate for service buildings, maintenance hangars, and parking facilities located directly within airfields.

High-Speed Rail Stations & Bus Rapid Transit (BRT) Hubs

Provides durable, diffuse-reflectance roofing and wall panels for urban transit hubs requiring high solar reflectance without blinding surrounding city traffic.

Commercial & Public Buildings

Specified for convention centers, sports arenas, exhibition halls, and government complexes where solar heat gain reduction and glare control are required.

FAQ

Q1:Why is a satin diffuse-reflection coating required for airport terminal canopies instead of standard high-gloss paint?

Standard high-gloss coatings reflect direct sunlight in concentrated, direct beams (specular reflection), creating intense glare that can temporarily blind pilots on approach or ground personnel in control towers. A satin diffuse finish scatters the reflected light in all directions, eliminating high-intensity hotspots while maintaining high solar heat reflection.

Q2:Does the lower specular gloss level (satin finish) reduce the Solar Reflectance Index (SRI) of the roof?

No. Specular gloss only measures light directionality, not total energy reflection. By incorporating specialized infrared-reflective ceramic pigments within the satin 70% Kynar PVDF formulation, the material achieves a high SRI≥ 78 - 85, reflecting solar heat effectively while remaining glare-free.

Q3:What alloy and temper are recommended for long-span standing seam airport roofs?

AA3004-H24 or AA5052-H32 are recommended. AA3004 offers excellent tensile strength and sag resistance across wide purlin spacings, while AA5052 provides superior corrosion resistance for airports located in coastal or industrial environments.

Q4:Can this satin coated aluminum coil be field-curved and double-locked without damaging the coating?

Yes. The coating system maintains high film elasticity with a bend rating of ≤ 1T - 1.5T. The coil can be roll-formed into standing seam profiles, mechanically seamed (zipped) on-site, and crimped into smooth convex or concave curves without micro-cracking or paint loss.

Q5:What packaging protocols protect painted surfaces during long-distance ocean transit?

Coils are laminated with protective PE film, wrapped in heavy airtight VCI (Vapor Corrosion Inhibitor) anti-rust paper with active desiccants, fully encased in a steel outer wrap with edge guards, and strapped securely onto fumigated wooden pallets.

Request a Diffuse-Reflection Substrate Specification Quote

Are you currently structuring technical submittals, bidding on airport infrastructure tenders, or sourcing anti-glare raw materials for transit canopies? Send your target thickness, width, alloy grade, color code, and volume requirements to our technical sales desk for an engineering-grade quote and physical sample kit within 12 hours.
