Ultra-Low Optical Reflection Coated Aluminum Coil | Non-Glare Surface for Airport Control Towers & Runway Enclosures

Aviation infrastructure—including air traffic control (ATC) towers, radar facilities, terminal concourses, and runway perimeter enclosures—demands specialized exterior materials that eliminate optical hazards. Standard high-gloss or semi-gloss architectural metal cladding creates specular glare under direct sunlight or intense high-intensity runway lighting. This blinding reflection poses severe safety risks to air traffic controllers, pilots during landing and takeoff operations, and optical surveillance equipment.

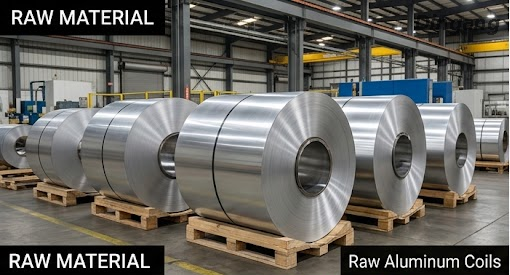

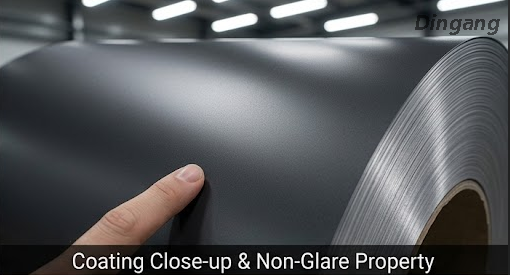

This specialized Ultra-Low Optical Reflection Coated Aluminum Coil is engineered to deliver zero-specular glare and ultra-low light reflectivity while maintaining high weatherability. Built on premium structural aluminum alloys (such as AA3003, AA3004, or AA5052), the substrate is treated and coated with an advanced micro-textured 70% Kynar 500® / Hylar 5000® PVDF fluoropolymer matrix. By incorporating specialized matte-diffusing agents and micro-surface texturing, the coating scatters incoming light rays isotropically, maintaining an ultra-low surface gloss level (≤ 5% at 60°) and a specular reflectance rate of ≤ 3%. This prevents blinding flash reflections without sacrificing UV resistance or corrosion protection.

Product Advantages

In sensitive aviation zones, specular reflection from building facades causes visual disruption for air traffic personnel and approaching aircraft. Traditional matte paints often suffer from poor stain resistance or "burnishing"—where mechanical pressure during roll-forming polishes the surface, creating shiny spots. Our ultra-low reflection pre-painted aluminum coil resolves these issues by combining a high-durability alloy base with a chemically cross-linked micro-textured PVDF coating.

Key Performance Advantages for Aviation Infrastructure

Zero-Specular Glare Performance (≤ 5% Gloss): Advanced inorganic matting agents diffuse parallel light rays into scattered ambient light, eliminating concentrated sun glare into control tower sightlines or cockpit views.

Burnish-Resistant Surface Hardness: Cured ceramic-polymer blend resists surface polishing and gloss increase during mechanical bending, press-brake folding, and automated roll-forming.

Anti-Dirt Accumulation Formulation: Smooth micro-texture prevents airborne jet fuel soot, dust, and environmental particulate matter from embedding in the matte finish, ensuring easy rainwater self-cleaning.

High Corrosion & Aviation Fuel Resistance: Resists degradation from aviation fuel vapors, high humidity, de-icing chemicals, and coastal salt spray around maritime airport locations.

20+ Year Color Stability: 70% Kynar PVDF resin binder prevents chalking, fading, and yellowing under continuous high-altitude UV radiation.

Complete Product Specifications

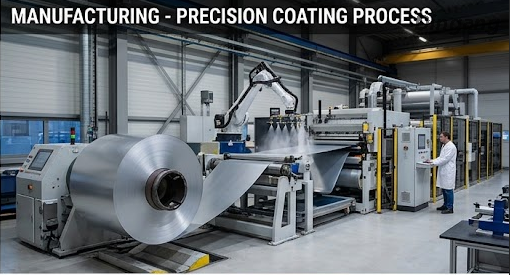

Quality Control & Production Excellence

Our continuous coil coating lines execute strict optical, mechanical, and environmental evaluations on every lot to guarantee strict aviation non-glare compliance.

B2B Sourcing & Customization Services

To support large-scale aviation infrastructure tenders and specialized government project specifications, we provide custom manufacturing services:

Precision Width Slitting for Cassette & Panel Lines

We offer precision inline slitting options to supply ready-to-form ribbon widths (such as 600mm, 1000mm, 1250mm, or 1500mm) tailored to your solid cassette presses, ACP laminating lines, or standing seam formers.

Custom Low-Reflectance Architectural Color Matching

Full shade matching to international architectural standards (RAL colors such as Anthracite Grey, Slate Grey, Aviation Blue, and Off-White) formulated strictly in ultra-matte gloss ranges ($\le 3\% - 5\%$).

Heavy-Duty Sea Freight Packaging Protection

All shipments feature core eye-to-sky or eye-to-wall configurations, heavy airtight vapor barriers packed with active desiccants, and rugged steel outer casings on reinforced wooden pallets to prevent transit damage.

Industrial Applications

This non-glare pre-painted aluminum coil is specified by aviation architects, civil defense infrastructure managers, and specialized metal cladding contractors:

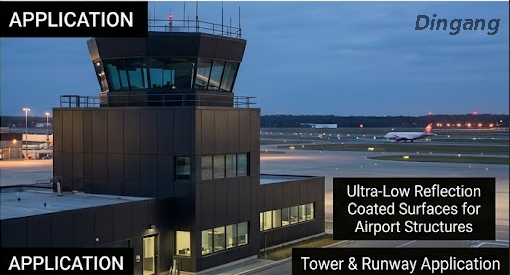

Air Traffic Control (ATC) Tower Cladding

Engineered to address critical optical sightline safety around airport operations towers. Standard reflective or semi-gloss metal cladding generates solar glint that can temporarily blind air traffic controllers looking out from tower cabs. Our ultra-matte coil provides high-precision, non-glare solid aluminum sheeting for exterior tower shafts, cab overhangs, soffits, and equipment housings. By maintaining a strict 60° surface gloss of ≤ 5% and scattering incoming light isotropically, it eliminates reflected flash hazards while maintaining superior structural resistance against high-elevation wind loads and jet blast pressures.

Runway Approach & Perimeter Enclosures

Deployable within sensitive airside flight clearance zones where reflected light disrupts approaching pilot visibility and ground guidance equipment. This coil is the preferred low-reflectance material for radar domes/shelters, approach lighting support enclosures, sub-station transformer housings, and perimeter blast-deflector fencing. The durable 70% Kynar 500® PVDF surface withstands continuous exposure to unburned aviation fuel vapors, high-concentration de-icing fluid over-spray, and abrasive wind-blown gravel raised by engine thrust.

Passenger Terminals & Concourse Roofs

Designed for large-surface architectural metal envelopes situated adjacent to active taxiways and apron aprons. Offers wide-format, ultra-matte pre-coated coil ideal for field-zipping standing seam roofing profiles, aluminum composite panel (ACP) skins, and rainscreen cassette wall systems. Its non-glare properties ensure compliance with FAA/EASA Solar Glare Hazard Analysis (SGHA) regulations, preventing direct reflection into cockpit approach paths during low-altitude final approach procedures.

Military Airbases & Strategic Hangar Enclosures

Engineered for military transport hubs, quick-reaction fighter shelters, and aircraft maintenance hangars requiring reduced optical reflectivity and low visual signatures under direct sunlight.

Optical & Radar Surveillance Shelters

Provides protective, weather-resistant exterior cladding for remote radar installations, optical tracking stations, and perimeter security hubs, preventing unwanted specular flash that interferes with thermal/optical monitoring gear.

FAQ

Q1:Why is controlling surface gloss critical for metal roofs and cladding around airports?

Glare from reflective metal surfaces near runways or control towers can momentarily blind pilots during critical landing/takeoff phases or obscure air traffic controllers' visual line of sight. Civil aviation authorities enforce strict solar glare hazard analysis standards that mandate non-glare, low-reflectance materials.

Q2:What is the difference between total reflectance and specular reflectance?

Total reflectance measures the overall amount of light reflected by a surface. Specular reflectance measures light reflected at a single mirror-like angle (which causes glare). Our micro-textured PVDF coating diffuses incoming light isotropically, maintaining an ultra-low specular reflectance rate (≤ 3%) to eliminate glare.

Q3:Does an ultra-matte surface attract and trap more jet fuel soot and environmental dirt?

No. Unlike rough matte powders, our micro-textured PVDF coating is formulated with dirt-pickup-resistant fluoropolymer resins. Dirt and jet engine emissions remain on the outer micro-surface and are naturally washed away by rain.

Q4:Can this pre-coated coil be bent into 90° cassette edges without damaging the thermal-shock resistance?

Yes. The coating matrix incorporates hard inorganic ceramic particles that prevent burnishing during roll-forming, press-brake folding, or sheet shearing. The surface maintains its ≤ 5% gloss rating along bent edges and flat faces alike.

Q5:What packaging protocols protect the ultra-matte surface finish during ocean shipment?

Coils are laminated with protective PE film, wrapped in heavy airtight VCI (Vapor Corrosion Inhibitor) anti-rust paper with active desiccants, fully encased in a steel outer wrap with edge guards, and strapped securely onto fumigated wooden pallets.

Request an Airport Specification Quote & Sample Kit

Are you structuring technical submittals, bidding on aviation infrastructure tenders, or sourcing non-glare metal cladding materials? Send your target thickness, width, alloy grade, color code, and volume requirements to our technical sales desk for an engineering-grade quote and physical sample kit within 12 hours.
