Lightweight Structural Coated Aluminum Coil for Commercial Vehicle Bodies

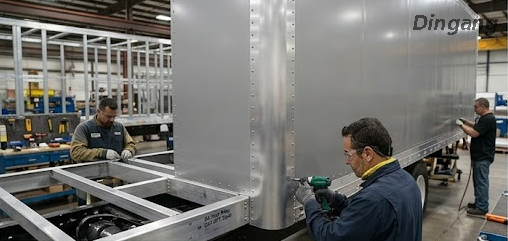

Commercial vehicle bodybuilders need exterior and interior panel materials that reduce vehicle weight while maintaining practical strength, corrosion resistance, surface durability and fabrication efficiency. This lightweight structural coated aluminum coil is designed for truck bodies, dry van trailers, refrigerated vehicles, delivery vans and specialty transport equipment where the material must withstand forming, vibration, road debris, moisture, road salt and repeated cleaning.

The product combines formable aluminum alloy substrates such as AA3004, AA5052 and AA5754 with a flexible protective coating system. Depending on the approved specification, the coating can be configured for impact resistance, weather exposure, fleet color matching and bonding to insulated or composite panel constructions.

Request a Vehicle Body Material Quote Request a Sample

Why Use Coated Aluminum for Commercial Vehicle Bodies?

Compared with conventional painted steel body skins, aluminum offers a lower-density substrate and strong corrosion resistance. For vehicle manufacturers, this can support lower body-system weight, increased payload potential and reduced dependence on post-fabrication painting, subject to the final panel design and gauge selection.

Impact-Resistant Surface for Road and Loading Environments

The flexible coating architecture is intended to absorb mechanical contact from gravel, handling, cargo movement and loading-area friction without the brittle behavior associated with less flexible finishes. For the referenced impact-resistant configuration, impact performance of ≥ 9 J can be specified, subject to the approved coating system and order requirements.

Formability for Roll-Forming, Bending and Profiling

The coating and temper can be selected for roll-forming, lock-seaming, rib profiling, bending and other vehicle-body fabrication processes. A target T-bend range of ≤ 1T–1.5T is available for suitable configurations, helping reduce coating micro-cracking or delamination during forming.

Resistance to Road Salt, Moisture and Cleaning Chemicals

The coated surface is designed for outdoor transport environments exposed to humidity, road salts, diesel contamination and routine industrial washing. Neutral salt-spray performance of ≥ 1000 hours can be specified for the referenced coating configuration, subject to coating selection, pretreatment and agreed test requirements.

Custom Fleet Colors and Surface Options

Colors can be matched to RAL, Pantone or approved physical samples. Coating type, gloss, protective film and reverse-side treatment can also be discussed according to the visible surface, bonding method and production process.

Product Specifications

Specification note: Final alloy, temper, coating system, color, reverse-side treatment and mechanical performance should be confirmed against the customer’s panel design, forming process, bonding method and operating environment before mass production.

Send Your Thickness, Width, Alloy and Color Requirements

Alloy Selection for Vehicle Body Panels

AA3004 for General Formed Vehicle Skins

AA3004 offers a practical balance of formability, moderate strength and corrosion resistance for general truck, trailer and transport body skins where efficient forming and consistent surface appearance are priorities.

AA5052 for Higher Strength and Dent Resistance

AA5052 is commonly selected when the panel requires higher strength than typical 3000-series material while retaining useful forming performance and corrosion resistance. It is suitable for exterior skins, service-body panels and components exposed to frequent handling.

AA5754 for Demanding Transport Body Applications

AA5754 can be evaluated for vehicle-body applications requiring higher structural capability, good corrosion resistance and reliable forming performance. The final temper and gauge should be selected around the actual bend radius, joining method and panel geometry.

Quality Control and Production Requirements

Each production order can be controlled against agreed dimensional, surface and coating requirements. Typical inspection items include thickness and width, surface appearance, color and gloss consistency, coating adhesion, forming performance, impact resistance, salt-spray resistance and protective-film condition where applicable.

For bonded vehicle panels, the reverse-side treatment should be validated with the customer’s actual adhesive, insulation core, press conditions and curing process. Trial material is recommended when a new adhesive system, coating or panel construction is introduced.

B2B Sourcing and Customization Services

Custom Slitting and Production-Ready Widths

Coils can be slit to match roll-forming, laminating and panel-production equipment. Common project widths such as 600 mm, 1000 mm or 1200 mm can be discussed within the available width range, helping reduce trimming waste and simplify line feeding.

Fleet Branding and Color Matching

Custom color development is available for fleet programs and vehicle manufacturers using RAL, Pantone, OEM references or approved physical samples. Production approval should be based on an agreed color standard before volume orders.

Reverse-Side Treatment for Bonded Panels

For refrigerated bodies and composite wall systems, reverse-side primer or service-coat options can be discussed for bonding to polyurethane foam, XPS, honeycomb or other core constructions. Adhesive compatibility and peel performance should be verified using the customer’s actual panel process.

Export Packaging for Long-Distance Shipping

Export shipments can use Eye to Wall or Eye to Sky coil orientation with reinforced wooden pallets and moisture-protection materials. Packaging configuration can be matched to coil weight, unloading method and sea-freight requirements.

Commercial Vehicle Applications

The coated aluminum coil is suitable for commercial vehicle bodybuilders, trailer manufacturers and transport equipment fabricators producing lightweight exterior skins, roofs, doors, liners and bonded body panels.

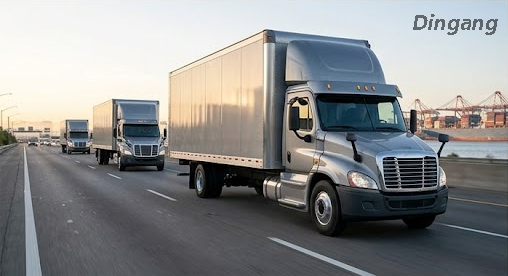

Dry Van Trailers and Box Truck Side Walls

Wide-format coated aluminum can be used for roll-formed side walls, roof skins and rear-door panels in dry freight trailers and box trucks. Coil width, flatness and visible-surface requirements should be matched to the body-panel production line.

Refrigerated Vehicles and Insulated Cargo Bodies

Coated aluminum skins can be laminated to insulated cores for refrigerated trucks, cold-chain vans and temperature-controlled cargo bodies. Exterior and interior surfaces can be specified separately according to weathering, cleanability and bonding requirements.

Last-Mile Delivery Vans and Utility Vehicles

Impact-resistant, scratch-resistant coated aluminum can be used for exterior cladding, service-body panels and doors exposed to frequent loading, urban traffic and daily fleet operation.

Municipal and Specialty Transit Vehicles

Suitable applications include emergency service bodies, airport shuttle vehicles, municipal utility vehicles and specialty transport equipment requiring durable exterior panels and corrosion-resistant finishes.

Interior Cargo Liners and Protective Panels

Coated aluminum can also be used for interior side liners, kick plates and cargo-area wall protection where a durable, cleanable and corrosion-resistant metal surface is required.

What to Provide for a Quotation

For faster material selection and pricing, provide the vehicle type and panel location, required alloy and temper, thickness, width, coil weight, color or sample reference, coating system, gloss level, forming method, bonding method, protective-film requirement, annual volume and destination port.

Get a Commercial Vehicle Aluminum Proposal

FAQ

Why are AA5052 and AA5754 often selected for commercial vehicle bodies?

AA5052 and AA5754 provide higher strength than common 1xxx and many general-purpose 3xxx alloys while retaining good corrosion resistance and useful forming performance. They are often evaluated for exterior skins and structural body components where dent resistance and panel rigidity are important.

How does the impact-resistant coating reduce chipping from road debris?

The flexible coating system uses an impact-tolerant resin architecture intended to absorb short-duration mechanical loads rather than fracture like a brittle finish. For the referenced configuration, an impact rating of ≥ 9 J can be specified subject to the approved coating system.

Can the coated aluminum be bonded to foam or honeycomb panels?

Yes. Reverse-side treatment can be configured for bonded panel construction, including polyurethane foam, XPS and honeycomb systems. Because adhesive chemistry and press conditions vary, compatibility and peel strength should be validated with the customer’s actual adhesive and production process before mass production.

Can the coating withstand road salt and pressure washing?

Coating systems can be specified for exposure to road salts, humidity and routine industrial cleaning. The referenced high-durability configuration can be supplied to a neutral salt-spray target of ≥ 1000 hours, subject to the selected pretreatment, coating system and agreed test specification.

Can the coil be roll-formed or bent without damaging the coating?

Yes, when the alloy, temper, coating and bend radius are correctly matched. Suitable configurations can target a T-bend range of ≤ 1T–1.5T for roll-forming, lock-seaming and corner forming. Production trials are recommended for new profiles or aggressive bends.

Can you match an existing fleet color?

Yes. Colors can be developed from RAL, Pantone, OEM references or approved physical samples. For repeat orders, the approved color sample should be retained as the production reference.

What information is needed before ordering?

Please provide the vehicle application, panel location, alloy or strength requirement, temper, thickness, width, color, coating system, forming process, bonding method, protective-film requirement, order quantity and destination. Drawings or panel samples can be supplied when dimensional or forming details are critical.

Request a Structural Vehicle Body Material Quote

If you manufacture truck bodies, dry van trailers, refrigerated vehicles, delivery vans or specialty transport equipment, send your target alloy, temper, thickness, width, color, coating requirement and purchase volume. Our technical sales team can review the specification and prepare a quotation and sample proposal for your project.
